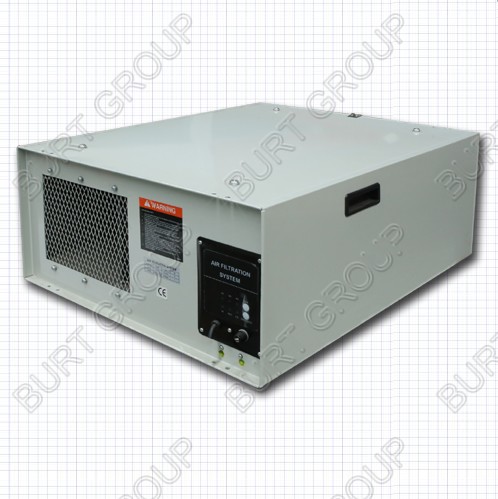

Air Filtration Unit with Multi-Stage Filtration
This air filtration unit removes airborne particles and contaminants. It features a multi-stage filtration process with adjustable fan speeds.
Technical Specifications
Product Overview
High-Efficiency Air Filtration

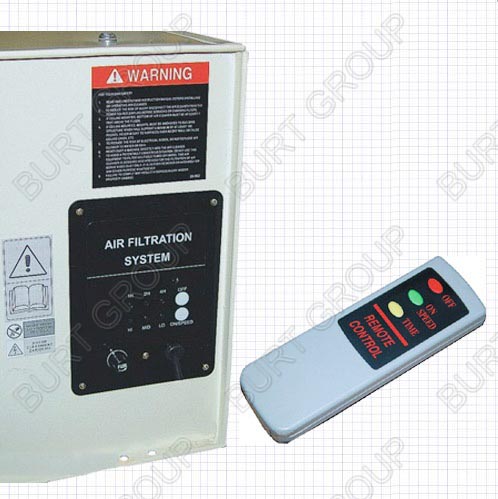

This self-contained air filtration unit is designed to effectively remove airborne particles and contaminants in industrial, commercial, and residential environments. It features a robust multi-stage filtration process that captures dust, pollen, and other pollutants to ensure cleaner air quality. With adjustable fan speed settings and remote control operation, the unit offers flexible performance to meet various operational needs.
Performance
Air Flow Capacity
1,044 CFM
High Speed
702 CFM
Medium Speed
556 CFM
Low Speed
Noise Output
68 dB(A)
High Speed
66 dB(A)
Medium Speed
63 dB(A)
Low Speed
Technical Specifications
Motor Details
| Parameter | Value |
|---|---|
| Power | 1/5 hp |
| Voltage | 115 V |
| Frequency | 60 Hz |
| Phase | 1 PH |
Filtration
Filtration Stages
- Outer filter: 5 micron
- Inner filter: 1 micron
Physical Specifications
Weight
| Type | Weight |
|---|---|
| Net Weight (kg) | 25 |
| Gross Weight (kg) | 29 |
- Unit Dimensions (L x W x H)
- 770 x 610 x 310 mm
Logistics
- Units per 20ft Container
- 138
