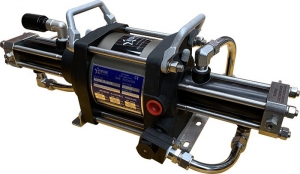

Air Driven Gas Booster
This air driven gas booster is suitable for compressing most gases, including nitrogen, helium, and hydrogen. Industrial gases like Argon and Nitrogen can be compressed to operating pressures of 25000 psig (1724 bar).
Technical Specifications
Overview
High-Efficiency Air Driven Gas Booster
This air-driven gas booster is a versatile, non-lubricated solution designed for compressing a wide variety of industrial gases including Nitrogen, Helium, and Oxygen. It operates without electrical power, making it ideal for explosion-proof areas and hazardous environments where heat or sparks must be avoided. With its ability to stall at predetermined pressures and hold them without power consumption, it offers an energy-efficient alternative for pressure testing and gas transfer applications.

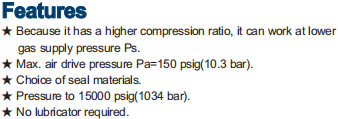

Key Features
Operational Benefits
- No airline lubricator required
- Separation between air and gas sections
- Built-in cooling system
- Infinitely variable cycling speed and output
- Automatic control compatibility
- No lubrication in the gas section for high purity
- Safety & Certifications
- ATEX ApprovedCE CertifiedExplosion ProofNo Heat RiskNo Spark Risk
Technical Performance
Performance Highlights
150 psig
Max Air Drive Pressure
25,000 psig
Max Pressure (Inert Gas)
10.3 bar
Max Air Drive Pressure
Compatible Gases
AirN2HeCO2NeArO2H2CH4Natural Gas
Maximum Pressure by Gas Type
| Gas Type | Max Pressure (psig) | Max Pressure (bar) |
|---|---|---|
| Industrial Gases (Argon, Helium, Nitrogen) | 25,000 | 1,724 |
| Hydrogen | 15,000 | 1,034 |
| Oxygen | 5,000 | 345 |
Model Specifications
AGB06 Series Performance Data
| Model Code | Max Rated Outlet (psig) | Actual ML/Cycle | Max Compression Ratio |
|---|---|---|---|
| AGB06-1T-4 | 1250 | 164 | 100:1 |
| AGB06-1T-7/15 | 4050 | 216 | 50:1 |
| AGB06-1T-15/30 | 7500 | 102 | 50:1 |
| AGB06-1T-15/75 | 15000 | 102 | 100:1 |
| AGB06-1T-30/75 | 15000 | 51 | 60:1 |
Construction
- Booster Configuration
- Single Drive, Double Stage
- Cooling System
- Built-in cooling
