Air Driven Gas Booster
This air driven gas booster is suitable for compressing most gases, including air, nitrogen, helium, and oxygen. Industrial gases like argon and helium can be compressed to operating pressures of 25000 psig (1724 bar).
Technical Specifications
Overview
High-Performance Air Driven Gas Booster
The AGB06 Series is a double-drive, double-stage gas booster designed for high-pressure industrial applications. It offers a safe and efficient alternative to electrically driven products, capable of operating in explosion-proof areas without heat, flame, or spark risk. This robust system is suitable for a wide variety of gases including Nitrogen, Helium, Oxygen, and Hydrogen, ensuring high purity through a lubrication-free gas section.

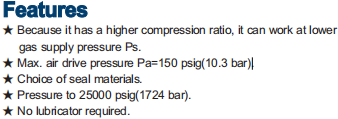

Key Features
Core Features
- No heat, flame or spark risk
- Separation between air and gas sections
- No lubrication in the gas section to ensure high purity
- Built-in cooling system
- Ability to stall at predetermined pressure without power consumption
- No airline lubricator required
- Infinitely variable cycling speed and output
Technical Capabilities
Maximum Operating Pressures
25,000 psig
Industrial Gases (N2, He, Ar)
15,000 psig
Hydrogen
5,000 psig
Oxygen
- Compatible Gases
- AirN2HeCO2NeArO2H2CH4Natural Gas
- Max Air Drive Pressure
- 150 psig
Performance Data
AGB06 Series Model Specifications
| Model | Max Rated Gas Outlet (Inert) | Max Rated Gas Outlet (H2) | Output Per Cycle | Compression Ratio |
|---|---|---|---|---|
| AGB06-2T-14/30 | 5000 psig | 5000 psig | 216 ML | 50:1 |
| AGB06-2T-14/60 | 9000 psig | 9000 psig | 216 ML | 100:1 |
| AGB06-2T-30/60 | 9000 psig | 9000 psig | 102 ML | 50:1 |
| AGB06-2T-30/100 | 14500 psig | 14500 psig | 102 ML | 75:1 |
| AGB06-2T-30/150 | 15000 psig | 15000 psig | 102 ML | 100:1 |
| AGB06-2T-60/100 | 15000 psig | 15000 psig | 51 ML | 40:1 |
| AGB06-2T-60/150 | 25000 psig | 15000 psig | 51 ML | 60:1 |
Compliance & Safety
Certifications
ATEX ApprovedCE Certified
- Explosion Proof Area Suitable
- Yes
