Product Overview
High-Efficiency Air Driven Gas Booster
This air-driven gas booster is a versatile and robust solution for compressing a wide variety of industrial gases, including Nitrogen, Helium, Argon, and Hydrogen. Designed for high-pressure applications, it offers an explosion-proof alternative to electric boosters, capable of reaching pressures up to 25,000 psig without heat or spark risk. Its non-lubricated gas section ensures high gas purity, making it ideal for sensitive industrial processes.
Performance Metrics
Key Performance Metrics
25,000 psig
Max Outlet Pressure
150 psig
Max Air Drive Pressure
25 :1
Max Compression Ratio
Technical Specifications

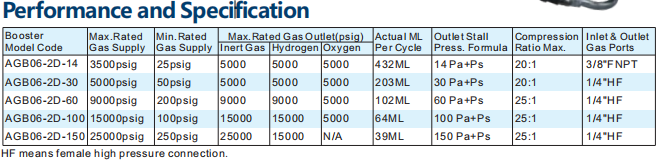

AGB06 Series Comparison
| Model | Max Gas Supply (psig) | Min Gas Supply (psig) | Max Outlet (Inert) | Displacement/Cycle |
|---|---|---|---|---|
| AGB06-2D-14 | 3,500 | 25 | 5,000 | 432ML |
| AGB06-2D-30 | 5,000 | 50 | 5,000 | 203ML |
| AGB06-2D-60 | 9,000 | 200 | 9,000 | 102ML |
| AGB06-2D-100 | 15,000 | 100 | 15,000 | 64ML |
| AGB06-2D-150 | 25,000 | 250 | 25,000 | 39ML |
- Gas Port Connections
- 3/8" FNPT or 1/4" HF (High Pressure Female)
- Max Air Drive Pressure
- 10.3 bar
Gas Compatibility
- Supported Gases
- AirN2HeCO2NeArO2H2CH4Natural Gas
Product Features
Core Features
- Double Drive Double Acting design for higher efficiency
- No lubrication required in the gas section to prevent pollution
- Ability to stall at predetermined pressure without power consumption
- Built-in cooling system
- Infinitely variable cycling speed and output
- Separation between air and gas sections
- No heat, flame, or spark risk (Explosion-proof suitable)
Certifications
Compliance & Certification
ATEX ApprovedCE Certified
