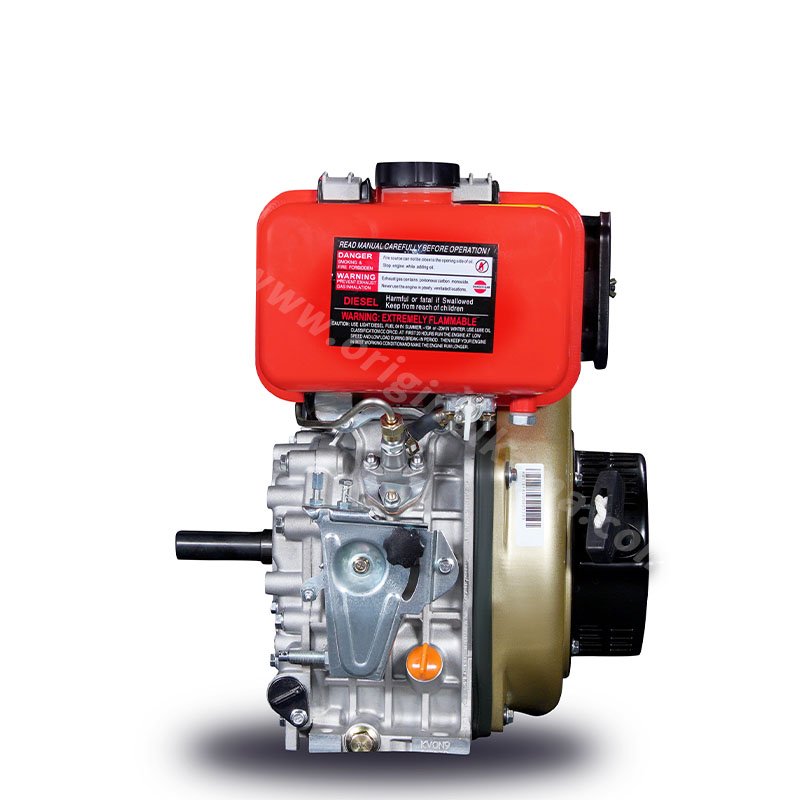

Air-Cooled Single-Cylinder Diesel Engine
This air-cooled, single-cylinder diesel engine has a maximum power of 4.4KW(6.0HP). It can be used with various devices through different output shafts.
Technical Specifications
Overview
High-Performance Air-Cooled Diesel Engine
The KM178F is a versatile, air-cooled single-cylinder diesel engine engineered for reliability and efficiency across various industrial applications. Featuring advanced direct injection technology, this engine offers optimized fuel consumption, easy starting, and low emissions compliant with Euro 5 standards. Its compact, lightweight design and robust construction ensure it can withstand harsh environmental conditions, including high altitudes up to 4500m and extreme temperatures ranging from -41°C to +46°C.
Performance Metrics
Rated Output Power
3.7 kW
At 3000 rpm
4 kW
At 3600 rpm
Maximum Output Power
4 kW
At 3000 rpm
4.4 kW
At 3600 rpm

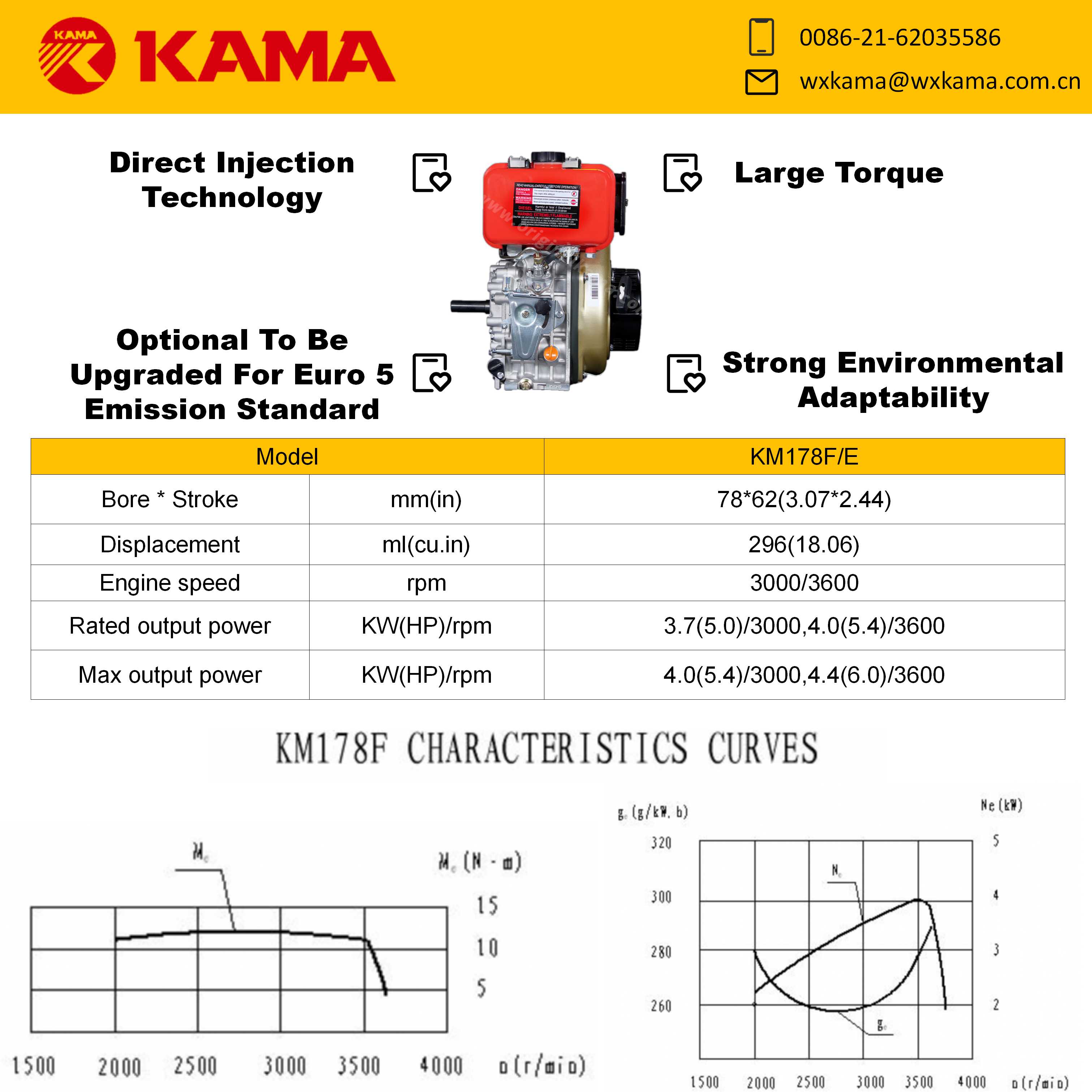

Technical Specifications
- Bore and Stroke
- 78 x 62 mm (3.07 x 2.44 inches)
- Displacement
- 296 ml
- Engine Speed
- 3000/3600 rpm
Features & Benefits
Compliance
Euro 5 Certified
Key Advantages
- Lightweight and compact structure
- Direct injection optimization for fuel efficiency
- High reliability in harsh environments
- Low smoke emissions
- Easy to start
Environmental Adaptability
Environmental Limits
| Condition | Limit |
|---|---|
| Max Altitude | 4500 m |
| Min Temperature | -41 °C |
| Max Temperature | +46 °C |
