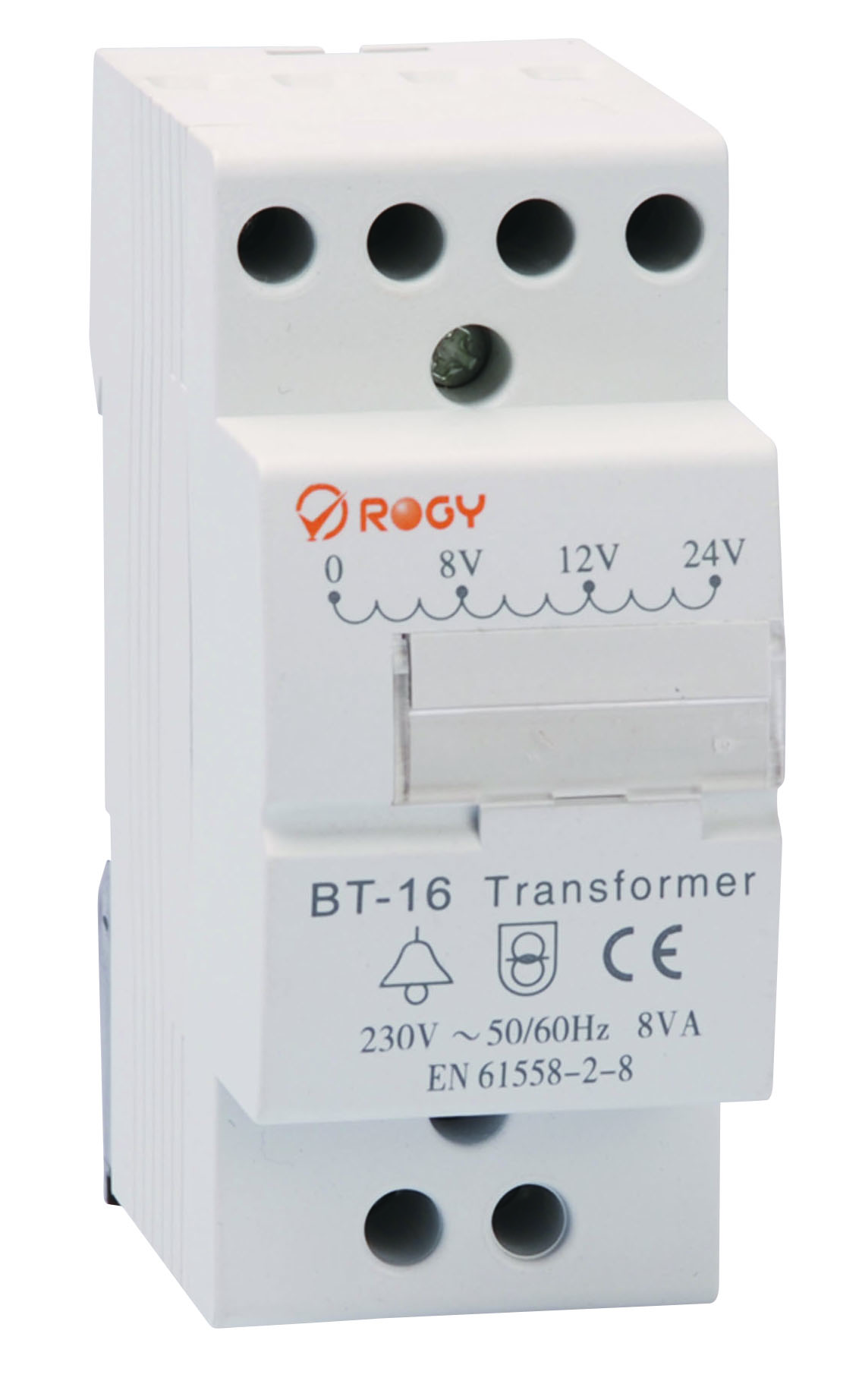

Adjustable Voltage Bell Transformer
This bell transformer is designed for low-voltage applications. It features adjustable voltage output, with options for 0V, 8V, 12V, and 24V.
Technical Specifications
Overview
Reliable Low-Voltage Power Solution
This adjustable bell transformer is designed for circuits requiring a safe, extra-low voltage supply, such as electric doorbells. It features a robust construction with safe electrical separation between primary and secondary circuits, ensuring stability and safety. With high output accuracy and an extra overload capacity of up to 25% within a 24-hour period, it offers consistent performance for continuous operation.
Technical Specifications
Rated Power Output
8 VA
Rated Power
- Rated Input Voltage
- 230 V
- Rated Frequency
- 50/60
- Consumption
- 1.15 W
- Pollution Class
- 2
Output Configurations
Output Voltage Options
| Model Type | Available Voltages (V) |
|---|---|
| BT16 | 8, 12, 24 |
| BT8 | 4, 6, 8, 12, 16, 24 |
Features & Compliance
Key Features
- Safe electrical separation between primary and secondary circuit
- Extra low voltage output up to 24V
- Low temperature rising
- High output accuracy
- Extra overload capacity up to 25% within 24 hours
- Continuous operating service period
Certifications
CEEN 61558-2-8
Installation
- Connection Terminals
- Pillar terminal with clamp
