Adjustable DC Power Supply 30V 10A
This DC power supply provides adjustable voltage from 0-30V and current from 0-10A. It features dual LED displays for monitoring voltage and current output.
Technical Specifications
Overview
Professional DC Regulated Power Supply

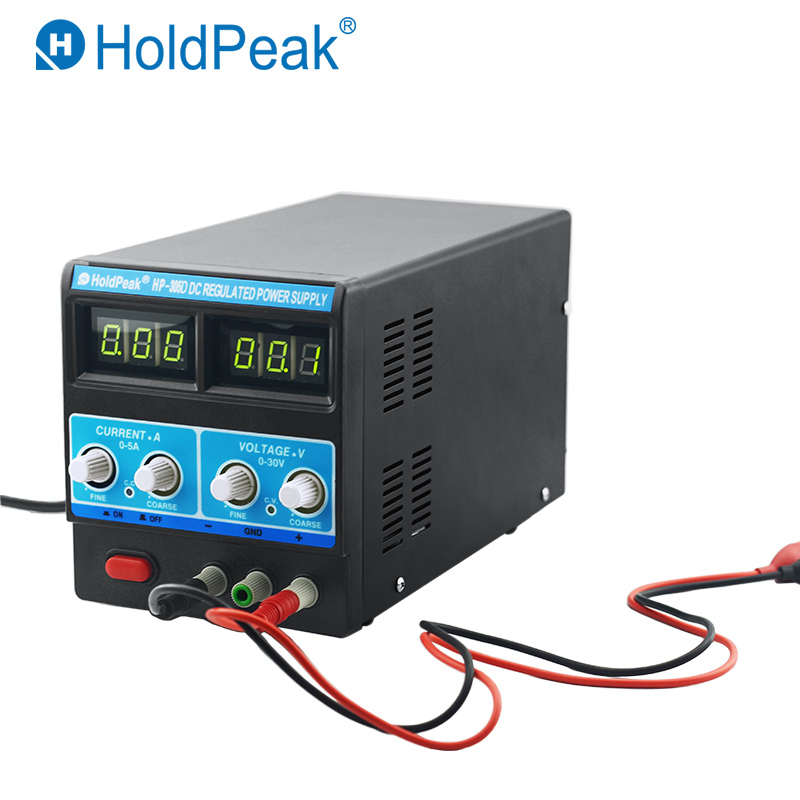

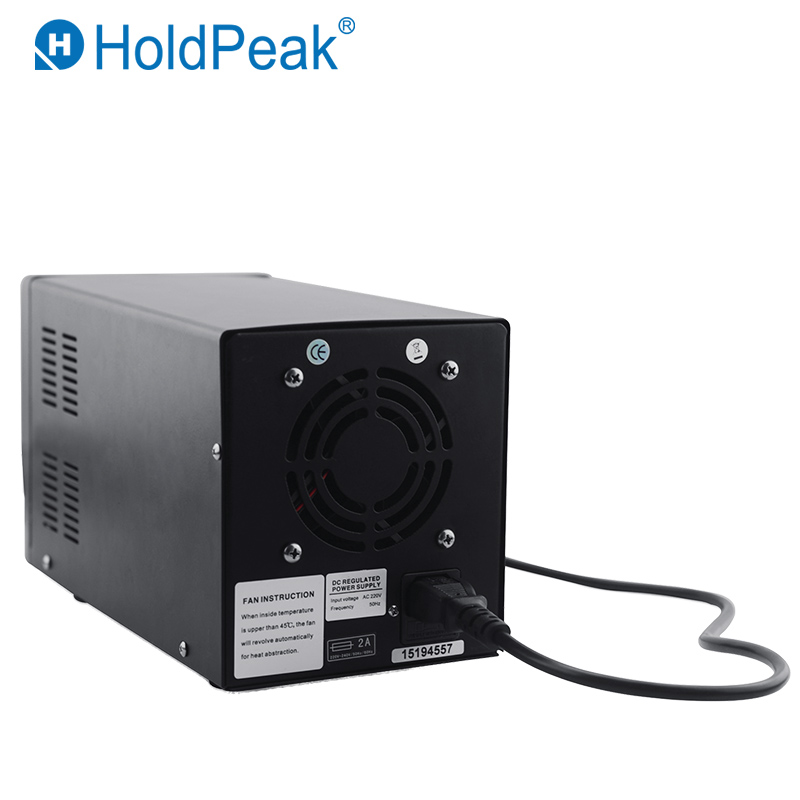

This switching regulated DC power supply provides stable and precise power output for electronics testing, laboratory research, and industrial applications. Designed with dual LED displays, it allows for simultaneous monitoring of voltage and current. The unit features built-in thermal management with an automatic cooling fan and offers adjustable output controls for fine-tuned electrical measurements.
Electrical Specifications
Output Range
30 V
Voltage
1 A
Current
- Input Voltage
- AC 220V ±10%
Performance
Stability and Precision
| Metric | Value |
|---|---|
| Source Effect | ≤0.01%±2mV / ≤0.02%±3mA |
| Load Effect | ≤0.01%±5mV |
| Ripple & Noise | ≤1mVrms / ≤3mArms |
Display and Interface
Display Type
LEDDual Digital Display
Display Accuracy
- Voltage: ±1.0% + 1 digit
- Current: ±2.0% + 2 digits
Environmental Requirements
- Operating Conditions
- Temperature 0-40°C, Humidity ≤90%
- Storage Conditions
- Temperature -20-60°C, Humidity ≤80%
