Adjustable 10A/16A Portable EV Charger with Type 2 Connector
This portable EV charger allows electric vehicles to be charged from standard outlets. It is a Level 2 charger with adjustable current settings of 10A and 16A and a Type 2 connector.
Technical Specifications
Overview
Versatile Portable Charging Solution
This Level 2 portable EV charger provides a flexible and reliable way to charge your electric vehicle at home or on the go. Featuring an adjustable current range from 8A to 16A and a 3.5kW power rating, it adapts to various power sources while ensuring efficient energy delivery. Its compact design and Type 2 connector make it an essential accessory for EV owners seeking a convenient alternative to fixed charging stations.
Key Performance Metrics
Key Performance Metrics
3.5 kW
Rated Power
16 A
Max Current
230 V
Input Voltage
Electrical Specifications

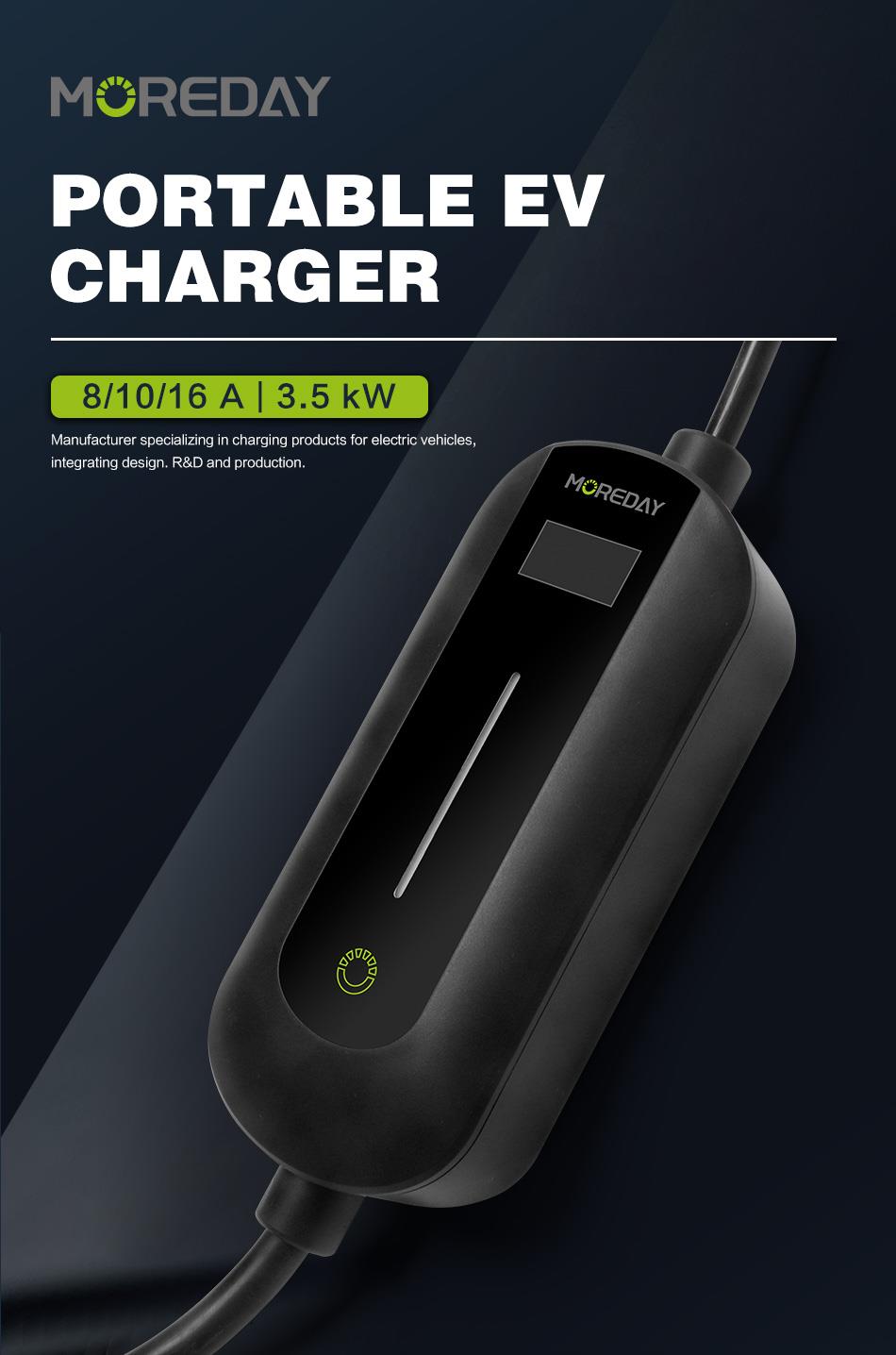

Adjustable Current Settings
- 8A
- 10A
- 13A
- 16A
- Input Voltage
- AC 220V - 230V ± 15%
- Frequency Rating
- 45~65Hz
- Pressure Resistance
- 2500VAC
Safety & Protection
Ingress Protection
IP65IP67
- Integrated Protections
- OvervoltageUndervoltageOvercurrentLeakage ProtectionLightning Protection
Physical Characteristics
- Size (L*W*H)
- 220 x 95 x 65 mm
- Unit Weight
- 3.5 kg
- Charging Cable
- 5m Standard (Custom lengths supported)
- Pin Material
- H62 Copper (Silver Plated)
Operating Conditions
- Working Temperature
- -40°C to +65°C
- Relative Humidity
- 5%~95% (non-condensation)
- Maximum Altitude
- 3000 m
Interface & Compliance

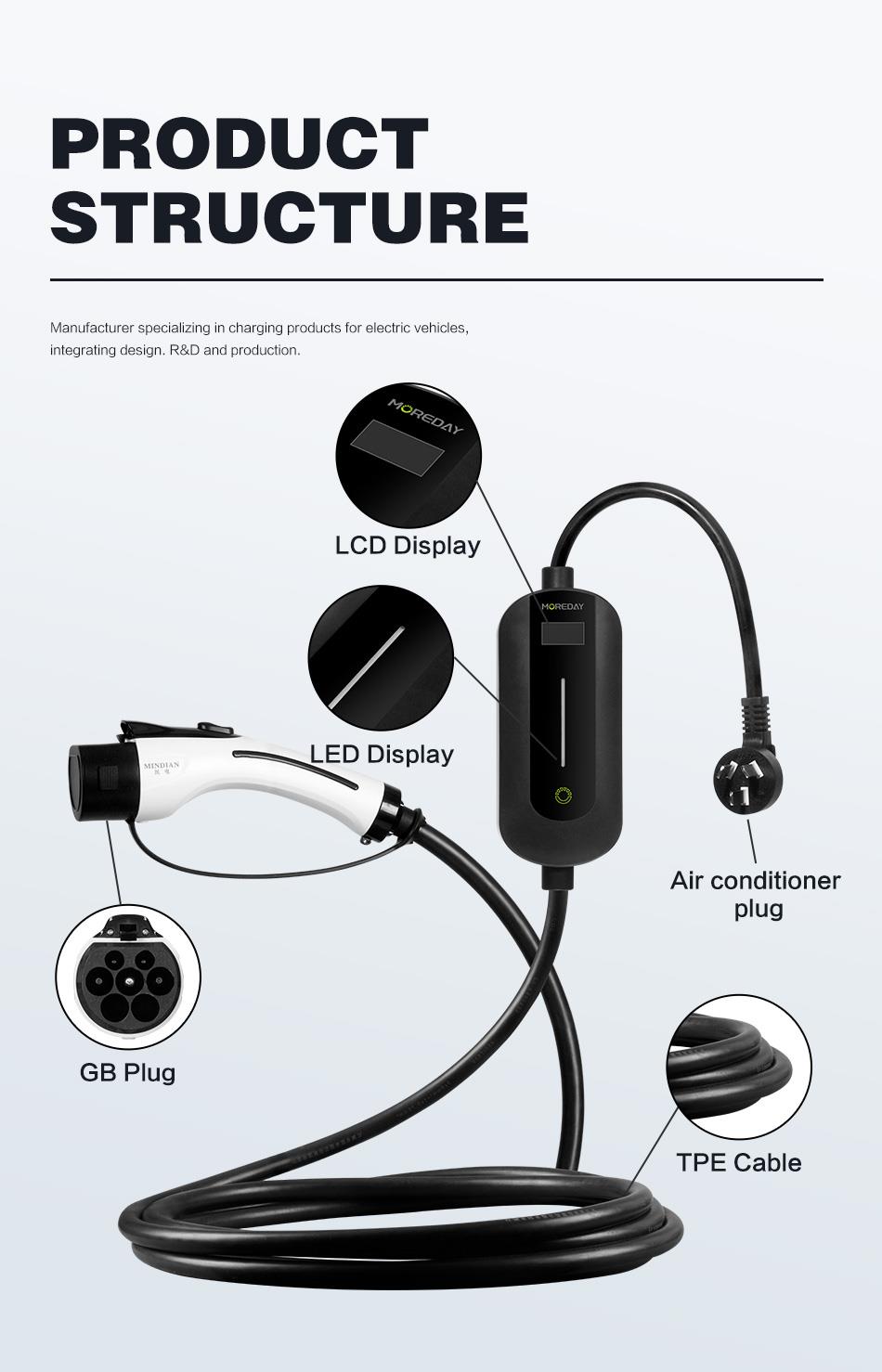

User Interface
- LCD Display
- LED Status Indicators
- Compliance Guidelines
- GB/T18487.1-2015GB/T20234.1-2015GB/T20234.2-2015CETUVRoHS
