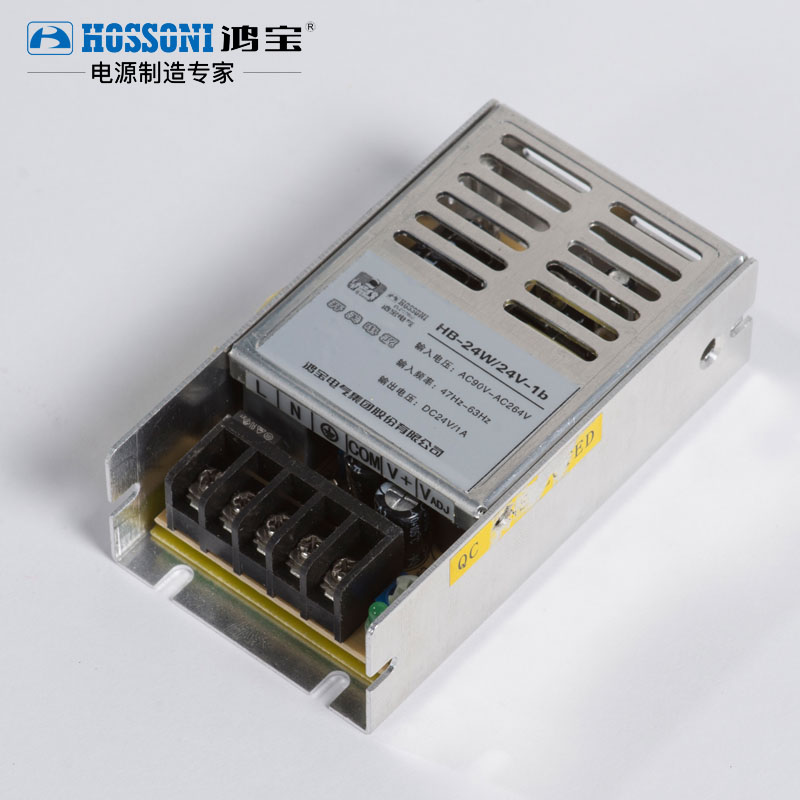

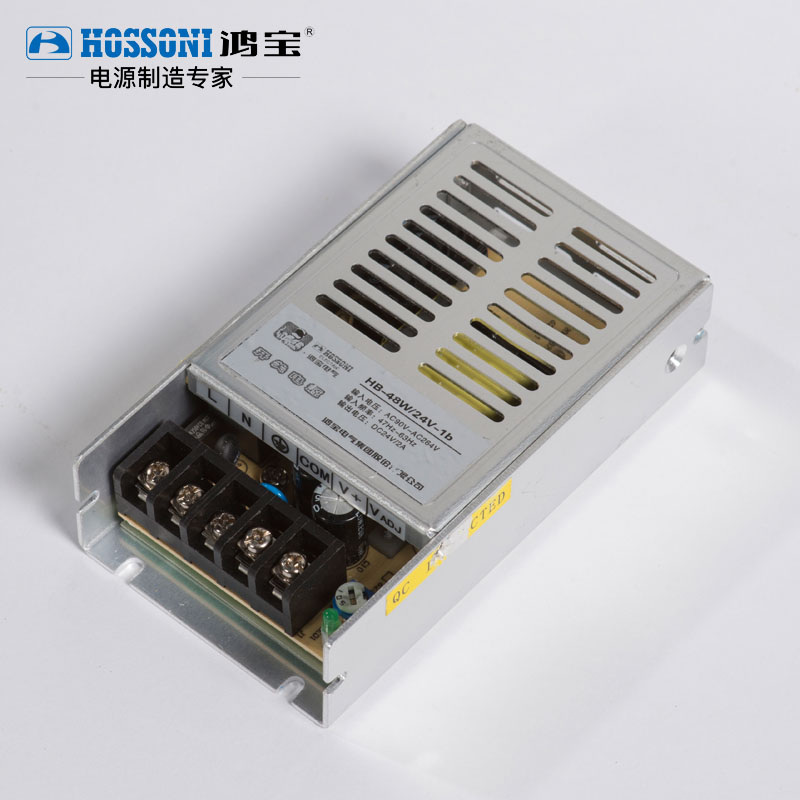

AC to DC Switching Power Supply 180V-250V
This AC to DC switching power supply converts AC voltage from 180V-250V to DC voltage. It is designed for automation fields such as LED screens, engineering control equipment, and communication equipment.
Technical Specifications
Overview
High-Performance Switching Power Supply
This switching power supply is engineered for high-performance automation and industrial applications. It supports a wide range of input voltages and provides a stable, reliable DC output suitable for LED large screens, engineering control equipment, and precision instrumentation. Designed to meet international safety standards, this unit ensures durability and consistent performance in demanding environments.
Input Specifications
- AC Input Voltage
- 85~132VAC or 170~264VAC (selectable range)
- Input Frequency
- 63 Hz
Output Performance
- Output Stability
- 0.5% typical value
- Ripple and Noise
- 1% peak value (<20mV)
- Output Voltage Adjustment
- ±10%~15%
Efficiency & Metrics
Efficiency by Wattage
71 %
25W Efficiency
75 %
50W Efficiency
79 %
100W Efficiency
81 %
200W Efficiency
Safety & Protection
Compliance Standards
- IEC 950
- UC1950
- UL1012
- TUVEN60950
- EMC
- LVD
- Protection Features
- Short-circuit protectionOver-load protectionOver-voltage protection
Applications
Suitable Applications
LED Large ScreensEngineering ControlCommunication EquipmentInstruments & Meters
