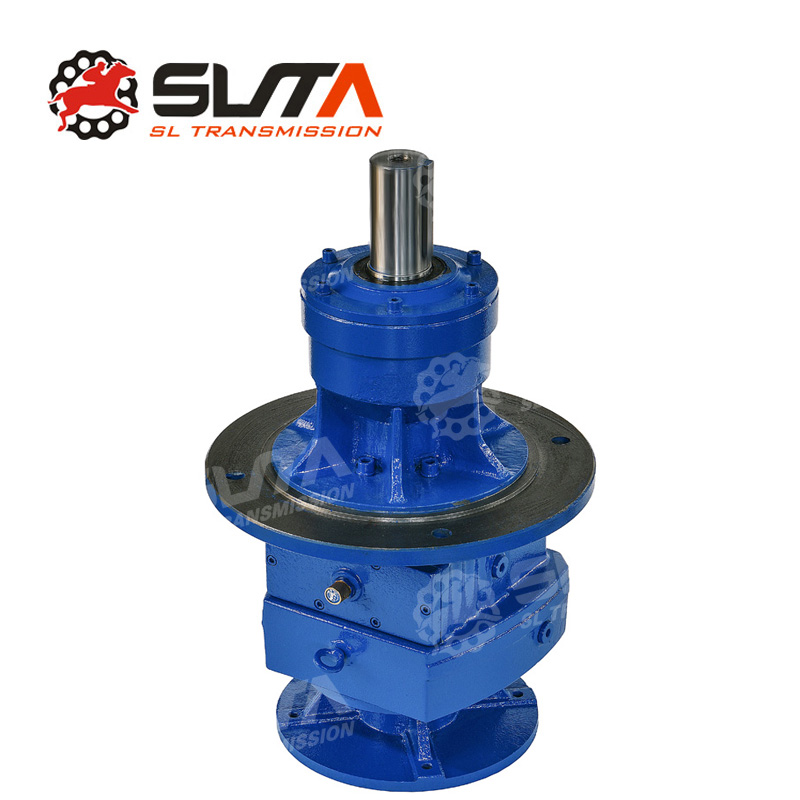

AC Gear Motor Reducer
This AC gear motor reducer features a high-strength cast iron housing for durability. It is designed for efficient speed reduction and torque amplification in various industrial applications.
Technical Specifications
Overview

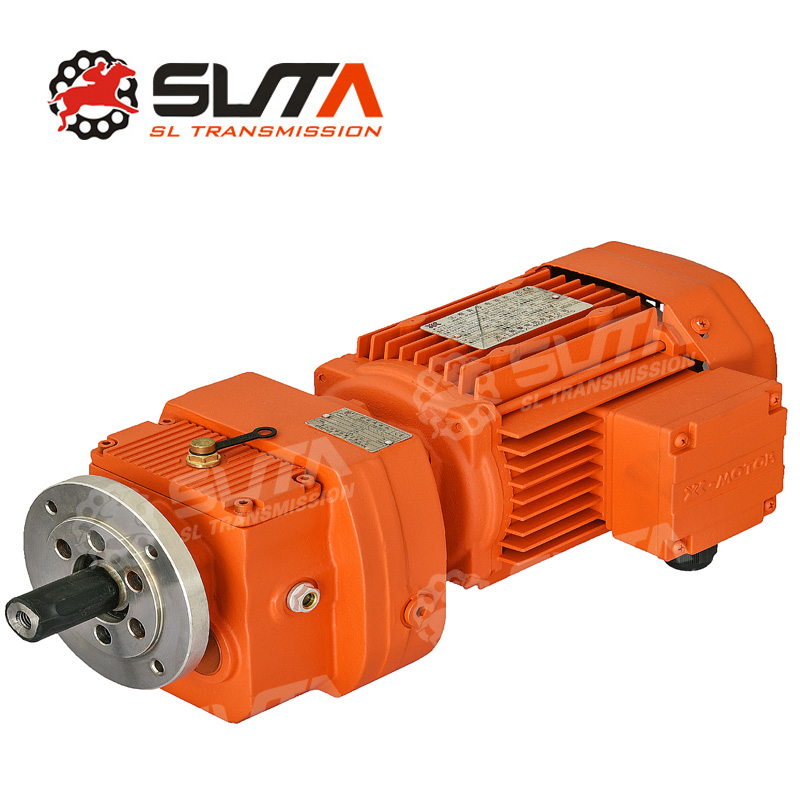

High-Performance Helical Gear Reducer
This next-generation helical gearmotor is engineered with a modular design for superior transmission torque and high mechanical efficiency. Built with high-strength HT250 cast iron and premium 20CrMnTi alloy steel gears, it offers exceptional durability and low-noise operation. It is an ideal solution for demanding industrial applications including chemical processing, mining, metallurgy, and heavy machinery.
Construction & Materials
- Housing Material
- HT250 high-strength cast iron
- Housing Hardness
- HBS190-240
- Gear Material
- 20CrMnTi alloy steel
- Input/Output Shaft Material
- 42CrMo alloy steel
Performance Metrics
Efficiency
94 %
Efficiency Range
- Machining Precision
- Grade 6-5 (Accurate Grinding)
- Noise Level
- 68 dB
- Backlash
- ≤ 20 Arcmin
Technical Specifications
- Gear Surface Hardness
- HRC 58-62
- Gear Core Hardness
- HRC 33-40
- Shaft Hardness
- HRC 25-30
- Max Temperature Rise
- 40 °C
- Vibration Limit
- ≤ 20 µm
Compatibility
Recommended Lubricants
- GB L-CKC220-460
- Shell Omala220-460
- Power Compatibility
- 220V380V50Hz60Hz
Applications
Suitable Industries
Paper MakingPrinting MachineryChemical MachineryCement AgitatorPharmaceuticalMiningMetallurgyCeramic Production
