AC Axial Flow Fan YWF900
This AC axial fan is designed for industrial refrigeration and central refrigeration plant applications. Its robust construction and optimized blade design ensure high airflow with minimal noise.
Technical Specifications
Overview
High-Performance Industrial Axial Fan
The YWF900 is a robust AC axial flow fan designed for demanding industrial refrigeration and central plant applications. It features a compact external rotor motor design that ensures efficient air movement with low noise levels and a long service life. With its professional construction and IP54/IP44 protection ratings, this fan provides reliable continuous operation in professional HVAC&R environments.
Key Features
- Compact and professional structure
- Efficient operation with low noise output
- Long service life for industrial use
- Easy installation design
- Fine process control manufacturing

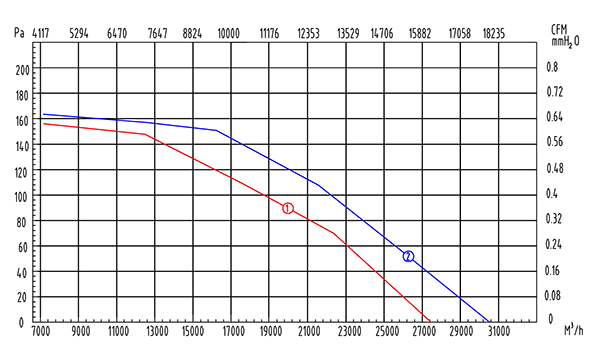

Technical Performance
Performance Metrics
900 mm
Blade Diameter
30,500 m3/h
Max Air Flow
1,000 RPM
Max Speed
82 dB(A)
Max Noise
Model Specifications (YWF6D900)
| Parameter | 50Hz Value | 60Hz Value |
|---|---|---|
| Voltage (V) | 400Y | 400Y |
| Current (A) | 2.9 | 3.7 |
| Input Power (W) | 1400 | 2050 |
| Speed (RPM) | 900 | 1000 |
| Air Flow (m3/h) | 27500 | 30500 |
| Noise dB(A) | 77 | 82 |
Construction & Materials
Material Composition
| Component | Material & Finish |
|---|---|
| Guard Grille | Steel, phosphated and black plastic coated |
| Wall Ring | Sheet steel, re-galvanised and black plastic coated |
| Blades | Sheet steel |
| Rotor | Coated in black plastic |
- Number of Blades
- 5
Electrical & Protection
Compliance Approvals
ULCECCC
- Protection & Insulation
- IP54IP44Insulation Class BInsulation Class FProtection Class I
Installation & Operation
- Mode of Operation
- Continuous operation (S1)
- Bearings
- Maintenance-free ball bearings
- Air Flow Direction
- S (Counter-clockwise) or B (Clockwise) seen on rotor
- Cable Exit
- Lateral
