95mm2 Aluminum Copper Cable Terminal Block
This terminal block is designed for connecting aluminum and copper cables with a cross-sectional area of 95mm2. It features a robust construction, ensuring secure and reliable electrical connections.
Technical Specifications
Product Overview

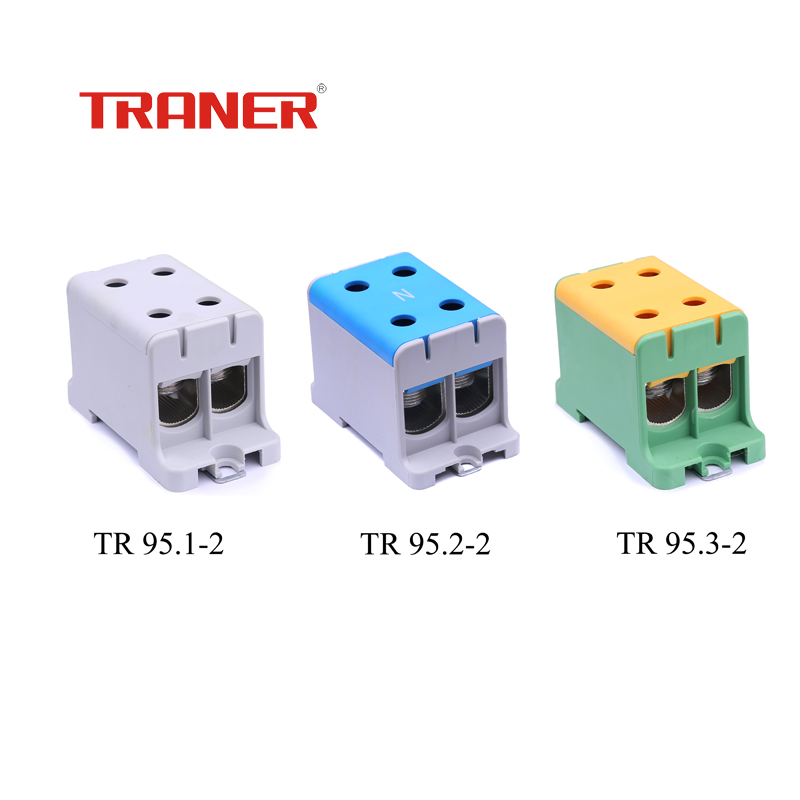

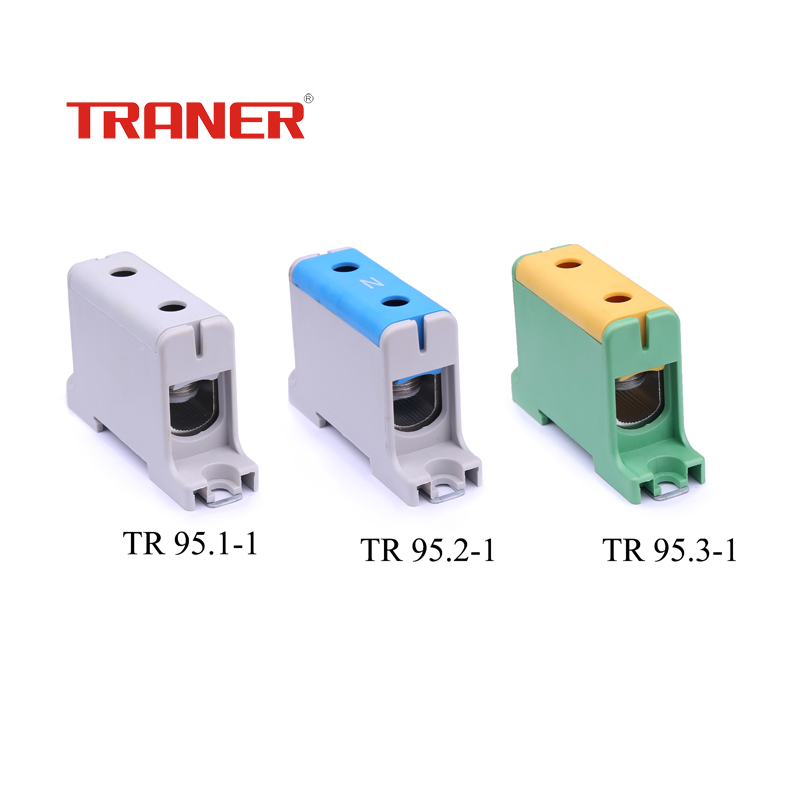

Universal Al/Cu Terminal Block
The TR series universal terminal block is engineered for safe and reliable connections of both copper and aluminum conductors. Featuring a compact and robust design, it supports cross-sections up to 240 mm² and allows for efficient mounting on DIN rails or via screws. These terminals are built using high-quality polyamide housing that meets stringent UL 94 V-0 safety standards, ensuring long-term performance in electrical power distribution systems.
Technical Specifications
Nominal Current Range
145 A
Minimum Current
425 A
Maximum Current
Standards & Certifications
CERoHSEN 60947-7-1EN 61238-1
- Conductor Compatibility
- Aluminum: 6-240 mm²Copper: 2.5-240 mm²
Mechanical Features
Material Composition
| Component | Material |
|---|---|
| Housing | UL 94 V-0 Polyamide |
| Metal Body | Tinned Aluminum |
| Screws | Steel |
Installation Methods
- DIN rail mounting
- Screw mounting
- Hexagonal screw tightening
