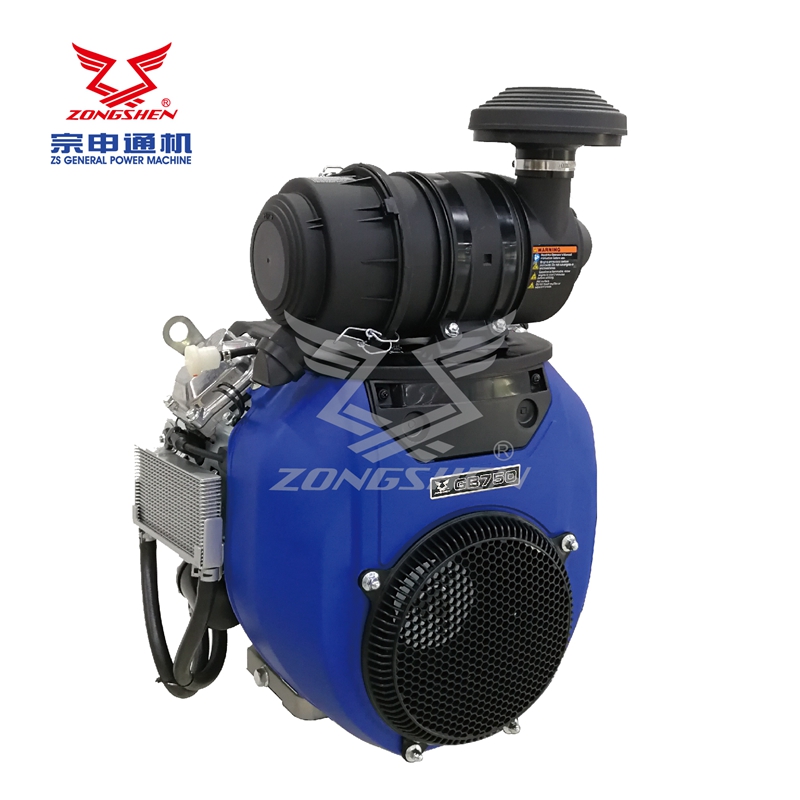

750cc Horizontal Shaft Engine
This horizontal shaft engine is designed for power generation applications. It features a robust design, ensuring durability and consistent power output in demanding environments.
Technical Specifications
Overview
High-Performance 750cc Horizontal Shaft Engine
This 750cc V-Twin cylinder gasoline engine is engineered to deliver robust power for demanding commercial applications. Featuring a horizontal shaft configuration, it allows for seamless integration into generators, water pumps, and construction machinery. The unit is equipped with a spiral double-layer air filter, ensuring reliable operation even in dusty, challenging work environments.
Performance Metrics
Rated Power
16 kW
Rated Power
22 HP
Rated Power
- Maximum Torque
- 47 N.m
- Max Output Speed
- 3900 r/min
Technical Specifications
- Displacement
- 750 cc
- Cylinder Bore x Stroke
- 82mm x 71mm
- Specific Fuel Consumption
- 370 g/kWh
- Engine Oil Capacity
- 1.5 L
- Starting System
- RecoilElectrical
Physical Dimensions
- Engine Dimensions (L x W x H)
- 456mm x 428mm x 464mm
- Net Weight
- 43.5 kg
Compliance & Logistics
Certifications
CE Euro VEPACARBSASO
Container Load Capacity
| Container Type | Capacity |
|---|---|
| 20'GP | 160 |
| 40'GP | 336 |
| 40'HQ | 419 |
