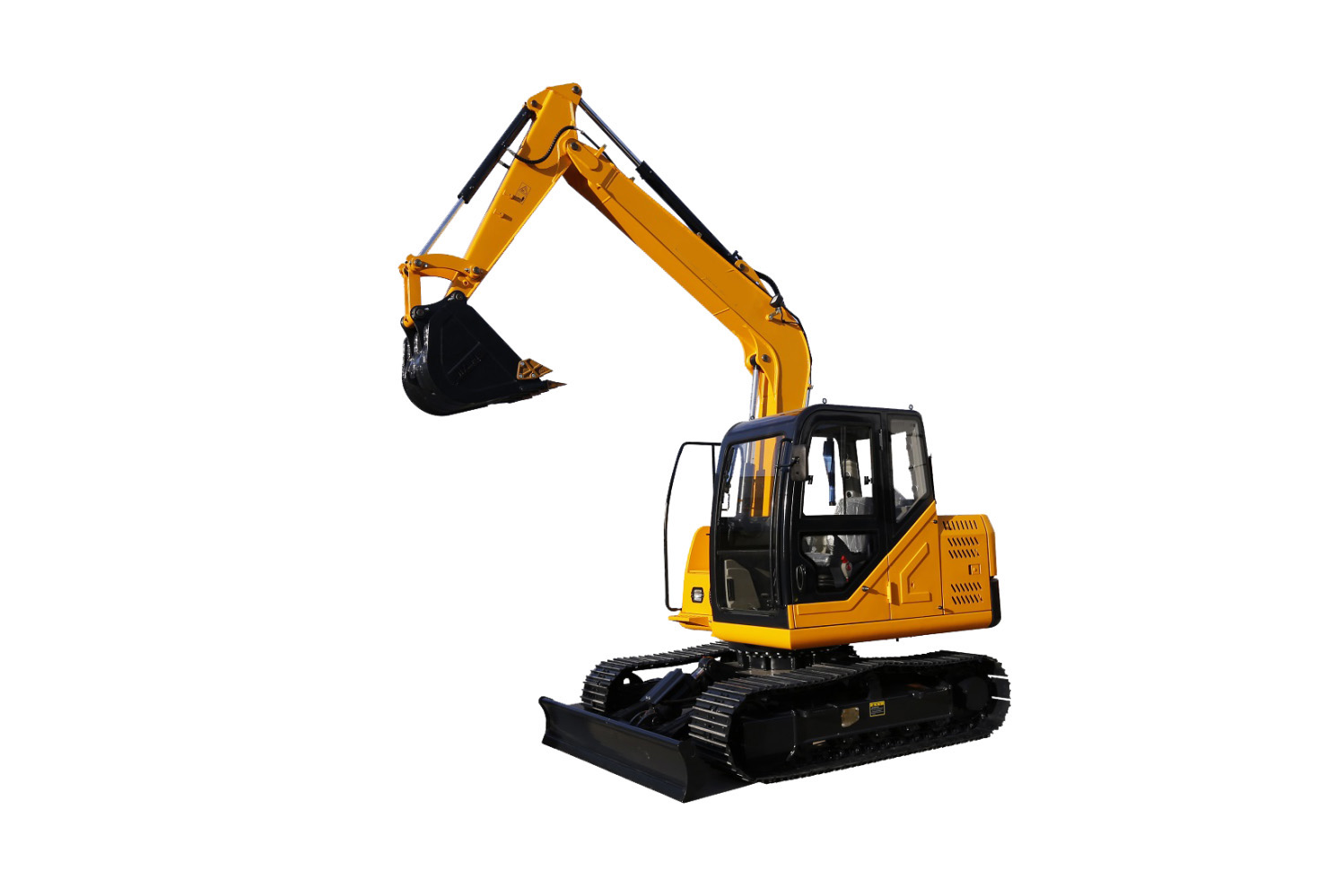

7.5 Ton Crawler Excavator
This 7.5-ton crawler excavator is designed for various construction and excavation tasks. Its compact design allows for maneuverability in tight spaces, making it suitable for urban construction sites.
Technical Specifications
Overview
High-Performance 7.5 Ton Crawler Excavator
This 7.5-ton crawler excavator is engineered for versatility and power in diverse construction and excavation environments. Featuring a robust hydraulic system and a reliable 58HP engine, it delivers precise control and high digging force for demanding tasks. Its compact design and stable crawler undercarriage ensure excellent maneuverability and performance in both confined urban spaces and rugged terrain.
Engine & Performance
Engine Power
58 HP
Power
42.4 kw
Output
Engine Details
| Attribute | Specification |
|---|---|
| Emission Standard | Tier 3/ Stage III |
| Cylinders | 4 |
| Rated Speed | 2000 rpm |
Max Digging Force
56 KN
Bucket
38 KN
Arm
Operational Capabilities
Working Range
| Metric | Value | Unit |
|---|---|---|
| Max Digging Height | 7,023 | mm |
| Max Dumping Height | 5,195 | mm |
| Max Digging Depth | 3,898 | mm |
| Max Digging Radius | 6,182 | mm |
- Standard Bucket Capacity
- 0.28 m3
- Hydraulic System Pressure
- 27 Mpa
Dimensions & Weight
- Overall Dimensions (L*W*H)
- 6054mm * 2216mm * 2672mm
- Machine Weight
- 7500 kg
- Minimum Ground Clearance
- 375 mm
Track System
Track Configuration
- Track Shoe Width: 450mm
- Track Shoes per side: 39pcs
- Upper Rollers per side: 1
- Bottom Rollers per side: 5
- Max Travel Speed
- 2.5 / 4.5 km/h
Capacities
Fluid Tank Capacities
120 L
Fuel Tank
100 L
Hydraulic Oil
