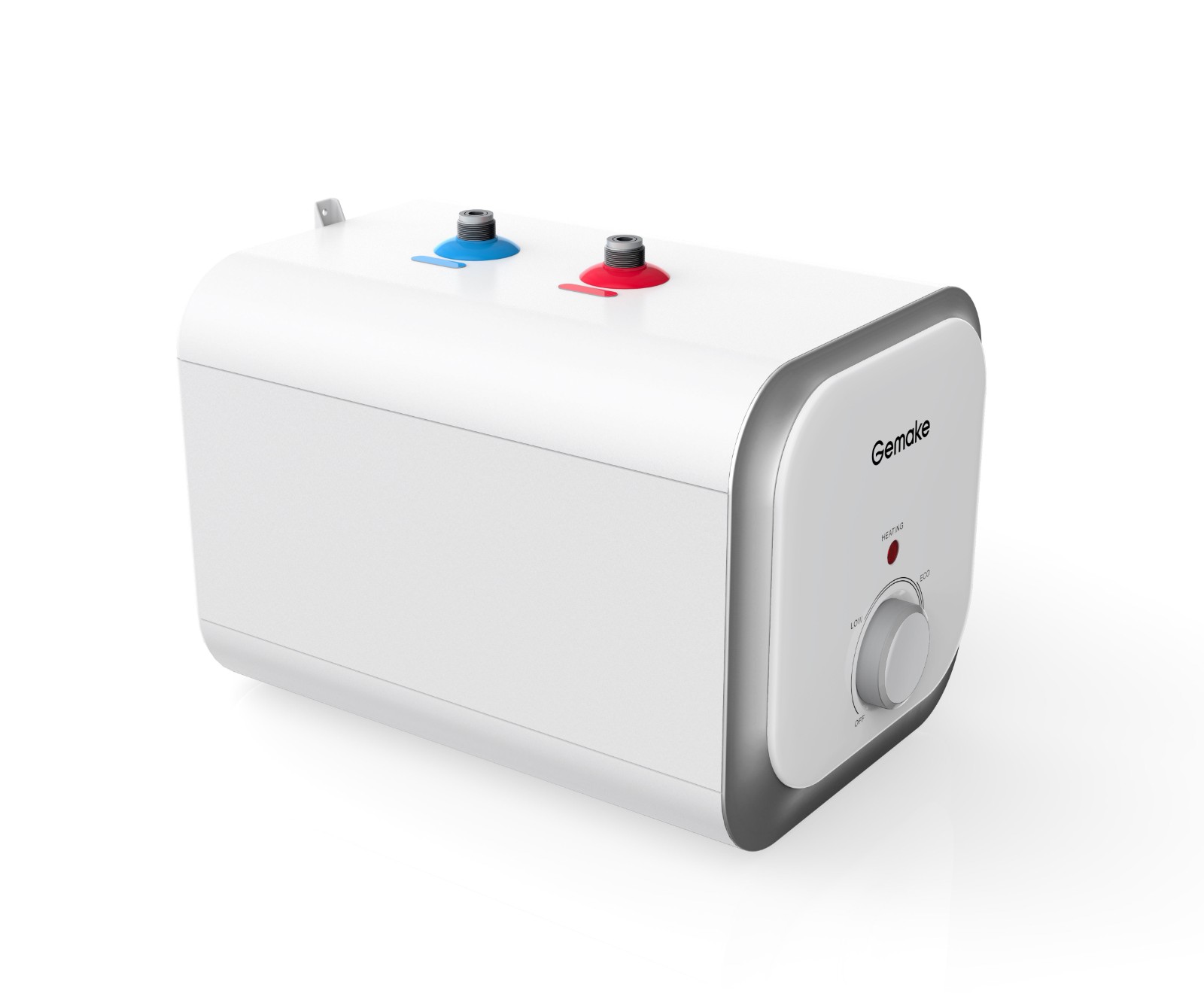

7/10 Liter Electric Tank Water Heater
This electric tank water heater provides on-demand hot water with adjustable temperature settings. Its compact design is suitable for point-of-use applications in apartments, offices, and under-sink installations.
Technical Specifications
Product Overview
Compact High-Performance Water Heating
This electric tank water heater is designed for efficient point-of-use applications, featuring a robust blue diamond enamel inner tank for superior corrosion resistance. Available in 7L and 10L capacities, it offers flexible floor-standing installation and rapid heating capabilities up to 75°C. With a focus on safety and durability, the unit includes high-pressure resistance and optional leakage protection, making it an ideal choice for professional B2B sourcing.
Technical Performance
Performance Highlights
2,000 W
Max Power
0.8 MPa
Rated Pressure
75 °C
Max Temperature
Model Variations
| Model Name | Capacity | Rated Power |
|---|---|---|
| DW15-J07/U | 7L | 1500W / 2000W |
| DW15-J10/U | 10L | 1500W / 2000W |
Construction & Durability

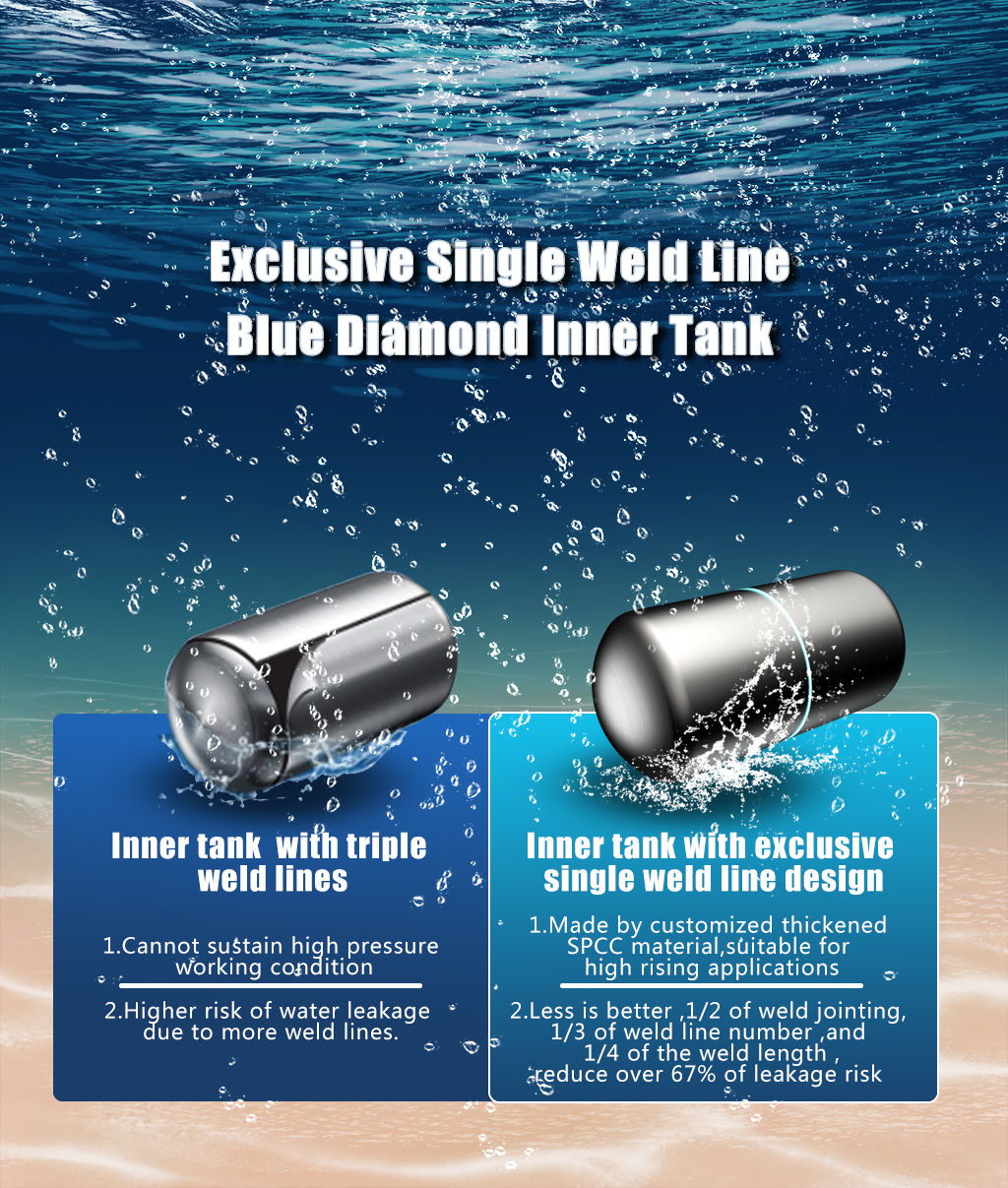

Tank Engineering
- Exclusive single weld line design
- Customized thickened SPCC material
- 67% reduction in leakage risk
- High-pressure resistant construction
- Inner Tank Material
- Blue diamond enamel
Heating & Efficiency

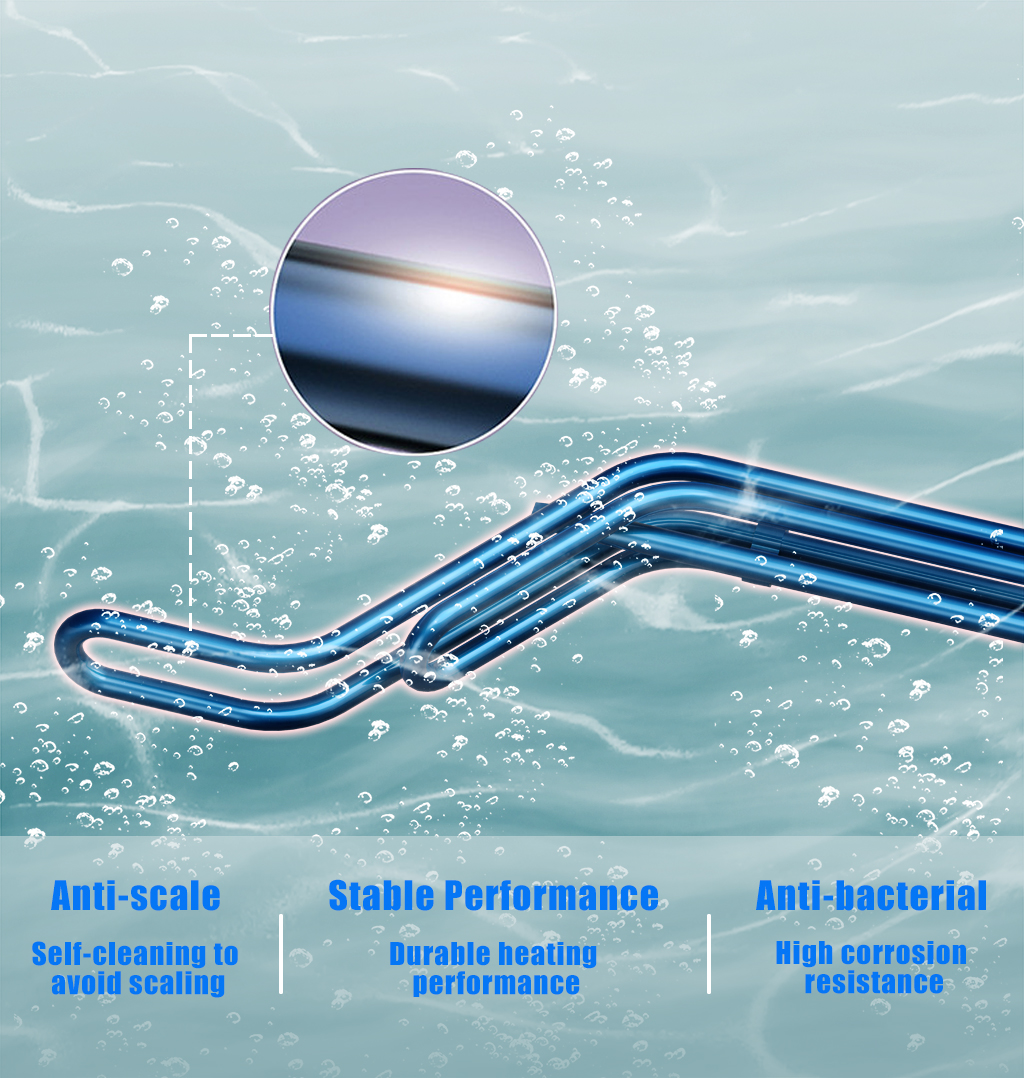

- Heating Element Benefits
- Anti-scaleSelf-cleaningAnti-bacterialCorrosion ResistantFast Heating
Installation & Operation
- Installation Type
- Floor standing type

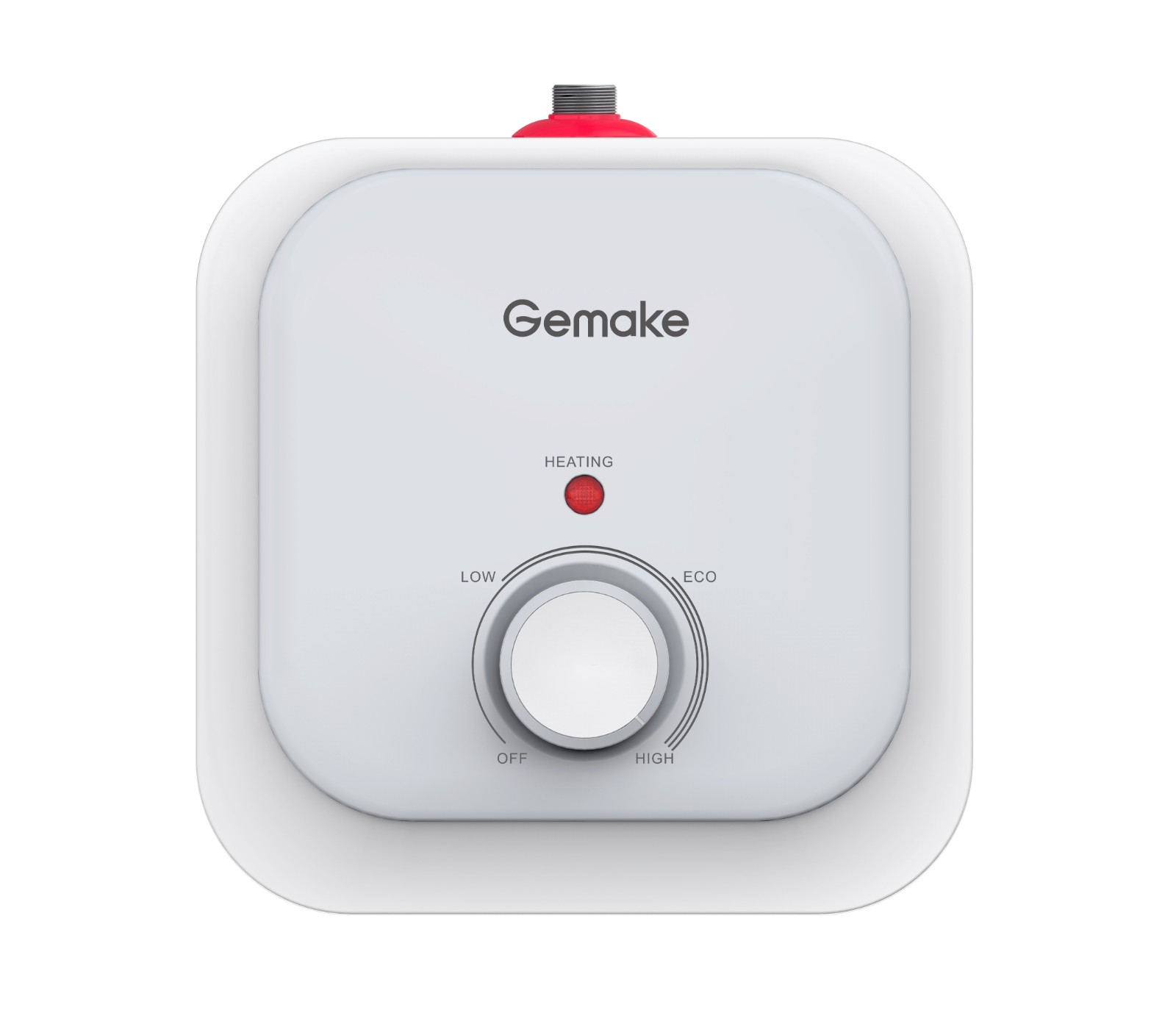

- Control Mode
- Mechanical control with adjustable temperature
Safety & Protection
Waterproof Rating
IPX4
- Leakage Protection
- Optional (e.g., ELCB)
Warranty
Warranty Coverage
- 5 years warranty on tank
- 1 year warranty for other parts
