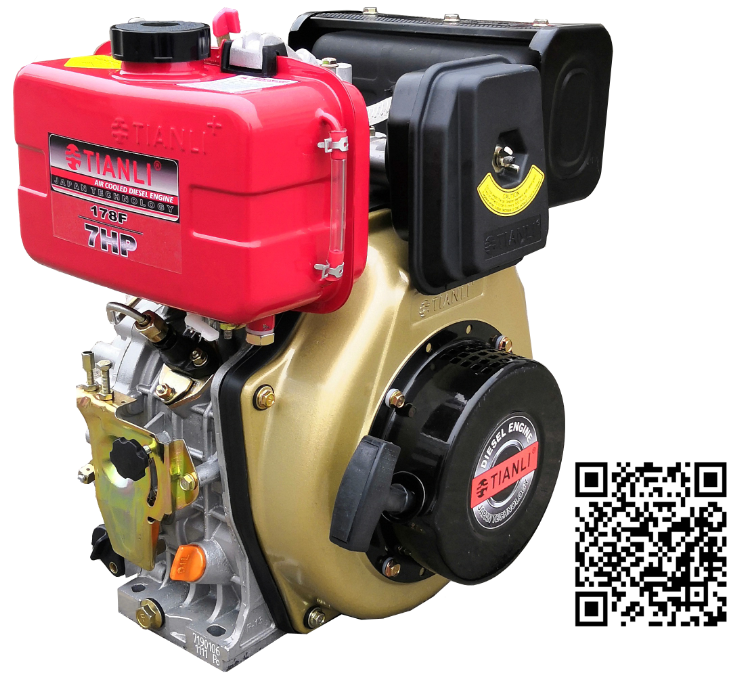

7 HP Air-Cooled Diesel Engine
This 7 HP air-cooled diesel engine is engineered for dependable power in various applications. It features a compact design, efficient air-cooling system, and low fuel consumption, offering a cost-effective and reliable energy source.
Technical Specifications
Overview
High-Performance 7 HP Diesel Engine
This 178F air-cooled diesel engine is engineered for reliability and efficiency in demanding industrial applications. Featuring a single-cylinder, 4-stroke direct injection design, it delivers consistent power for equipment such as generators and water pumps. Its compact, air-cooled architecture ensures durability and simplified maintenance, making it a dependable choice for professional use.
Performance Metrics
Power Output
3.4 kW
Rated Power
4.4 kW
Max Power
3,600 RPM
Rated Speed
Technical Specifications
Engine Configuration
| Parameter | Detail |
|---|---|
| Model Number | 178F |
| Engine Type | Single cylinder, vertical, 4-stroke |
| Combustion System | Direct injection |
| Cooling System | Force air-cooled |
| Compression Ratio | 20:01 |
Dimensions & Build
- Bore x Stroke: 78 x 62 mm
- Weight: 33 kg
- Crankshaft Direction: Clockwise (from flywheel end)
Operational Details
Fuel & Operation
- Starting System: Recoil manual start
- Fuel Tank Capacity: 3 L
Key Advantages
Fuel EfficientLow MaintenanceEasy StartCompact Design
