6.5 Metric Ton Underground Wheel Loader
This 6.5 metric ton underground wheel loader is designed for efficient material handling in mining operations. Its articulated steering provides excellent maneuverability in confined spaces, while the heavy-duty construction ensures durability in harsh underground environments.
Technical Specifications
Product Overview
High-Performance Underground Mining Solutions

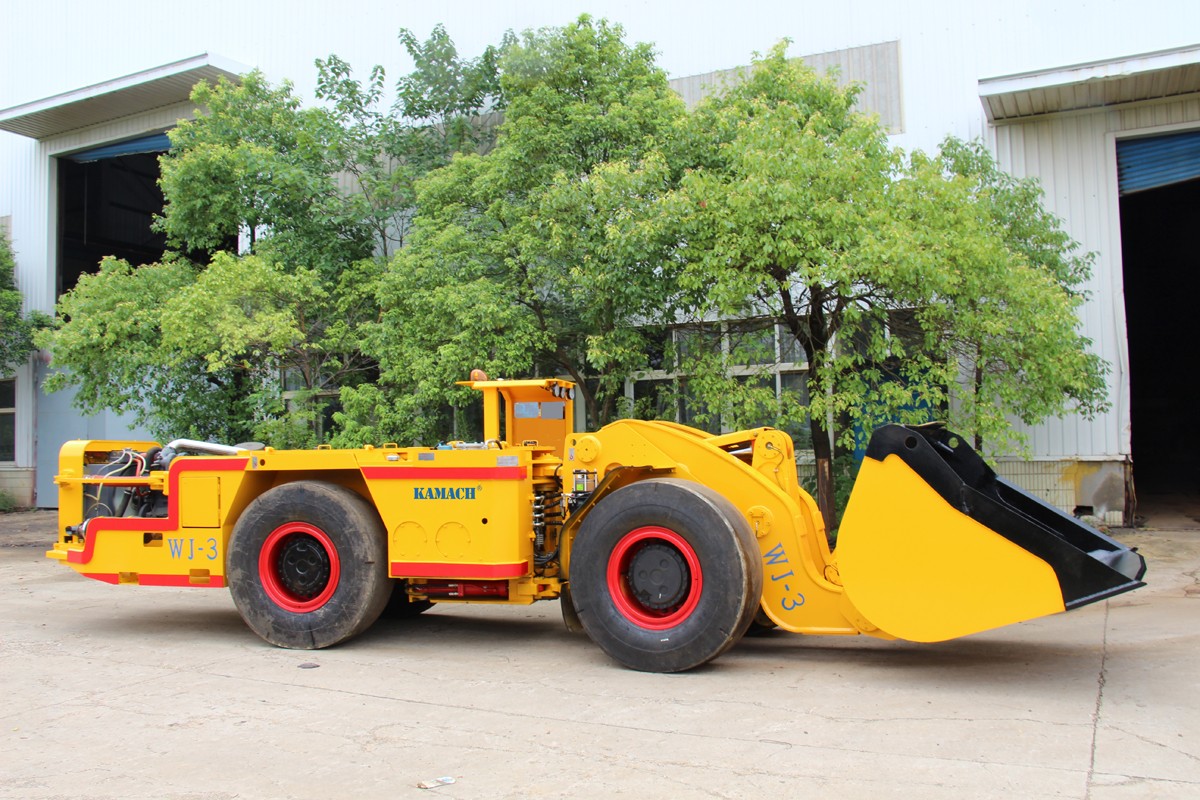

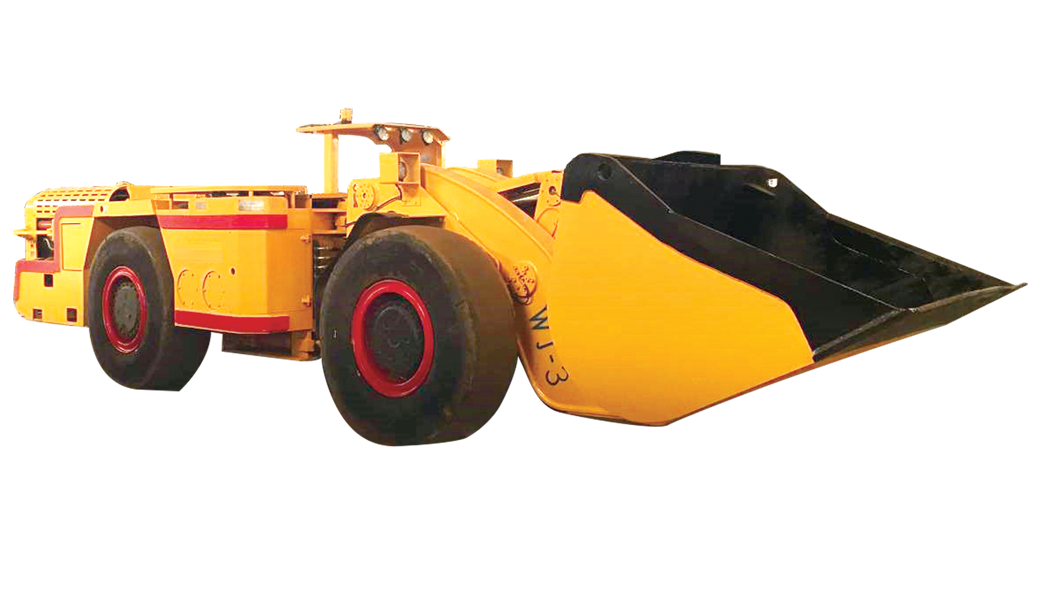

The WJ-3 Underground Wheel Loader is a specialized diesel-driven vehicle engineered for efficient material handling in mining tunnels. It provides a 3 cubic meter bucket capacity and a robust 7 Metric Ton loading capability, optimized for tunnel sections of 3m by 3m or larger. Built for durability and performance, it features world-class components, heavy-duty wear-resistant bucket blades, and advanced safety compliance to ensure maximum productivity in demanding underground environments.
Technical Specifications
Performance Metrics
Dimensions and Turning
| Attribute | Value |
|---|---|
| Length | 8700 mm |
| Width | 2050~2100 mm |
| Height | 2250 mm |
| Inner Turning Radius | 3450 mm |
| Outer Turning Radius | 6775 mm |
Power and Drivetrain
Engine and Exhaust
- Model: BF6M1013EC/Deutz
- Rated Power: 152~165 kW @ 2200 rpm
- Exhaust Purification: Catalytic Oxidation + Silencer
Transmission and Axles
- Converter: C273/DANA
- Transmission: R32365/DANA
- Drive Axle: 16D/DANA SPICER
Compliance and Quality
- Certificates
- QS9001CACE
