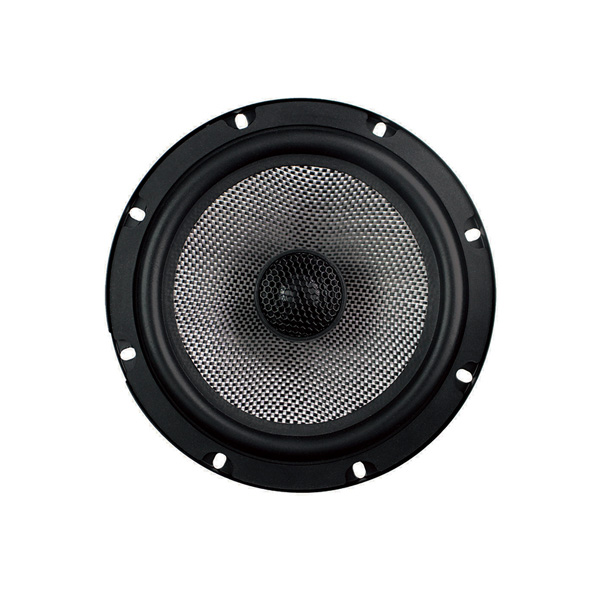

6.5" 2-Way Coaxial Speaker with Rubber Cone Woofer
This 6.5-inch coaxial speaker features a 2-way design with a rubber cone woofer. The speaker is designed for clear and accurate sound reproduction across a wide frequency range and handles up to 120 watts.
Technical Specifications
Product Overview
High-Performance 6.5-inch Coaxial Speaker
This 6.5-inch 2-way coaxial speaker is engineered for clear and accurate sound reproduction, making it an ideal choice for high-quality audio systems. Featuring a durable rubber surround with a glass fiber knitting cone, it provides enhanced cone excursion and superior damping for consistent performance. With a robust 120-watt peak power handling capacity, this unit is built to deliver reliable and immersive audio in demanding environments.
Audio Performance
Power Handling
80 W
RMS Power
120 W
Peak Power
- Frequency Response
- 65-22000Hz
- Sensitivity (SPL)
- 92 dB
Components & Construction
Voice Coil Details
- 25mm Diameter
- KSV Material
- 4 Ohm Impedance
Magnet Specifications
76 mm
Diameter
11 Oz
Weight
- Woofer Specifications
- 6.5 inchRubber SurroundGlass Fiber Knitting Cone
- Tweeter Specifications
- 20mm Silk Dome
Electrical Components
Crossover Capacitor Specs
| Parameter | Value |
|---|---|
| Capacitance | 4.7 uF |
| Voltage Rating | 100 V |
| Max Temperature | 105°C |
