Technical Specifications
Overview

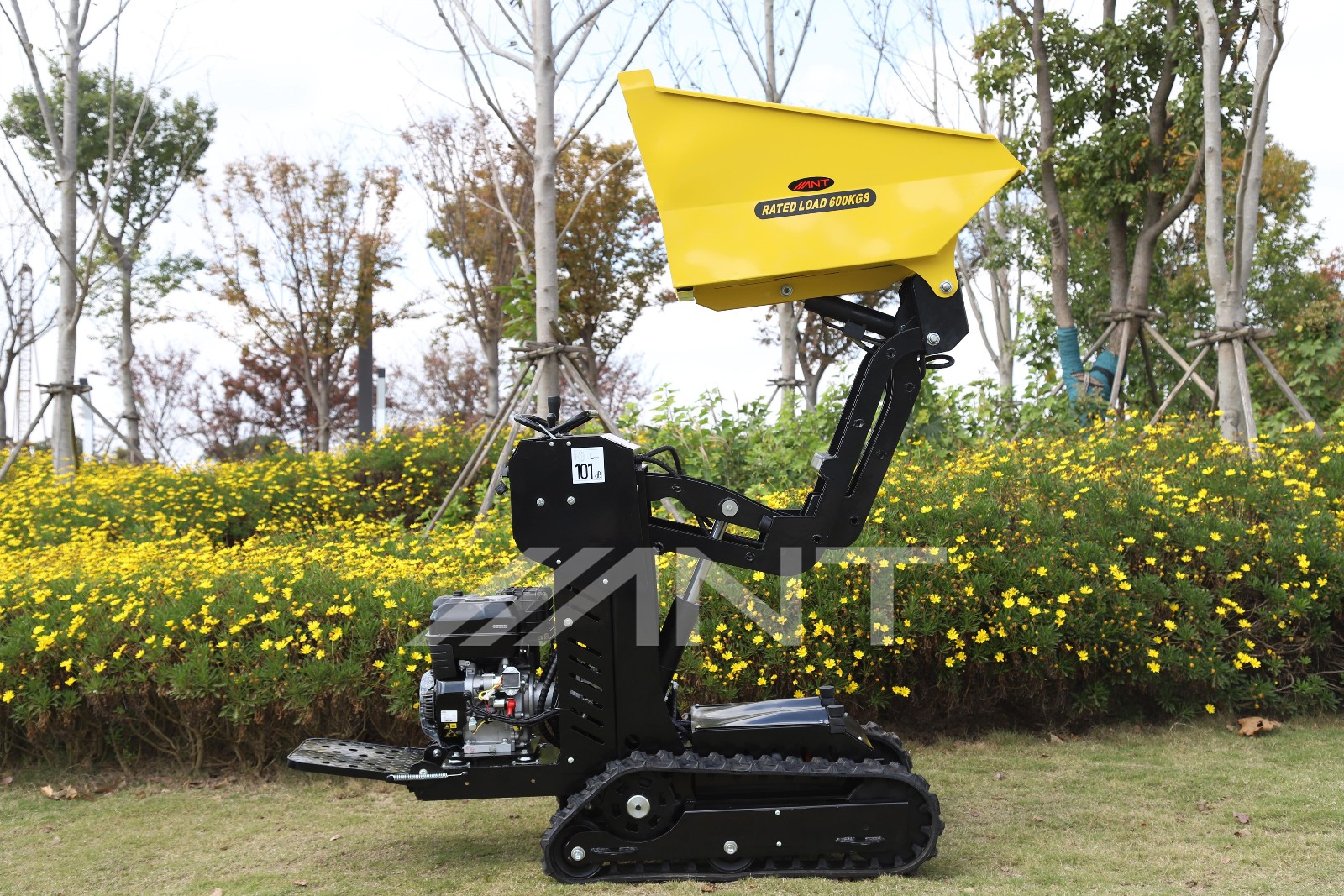

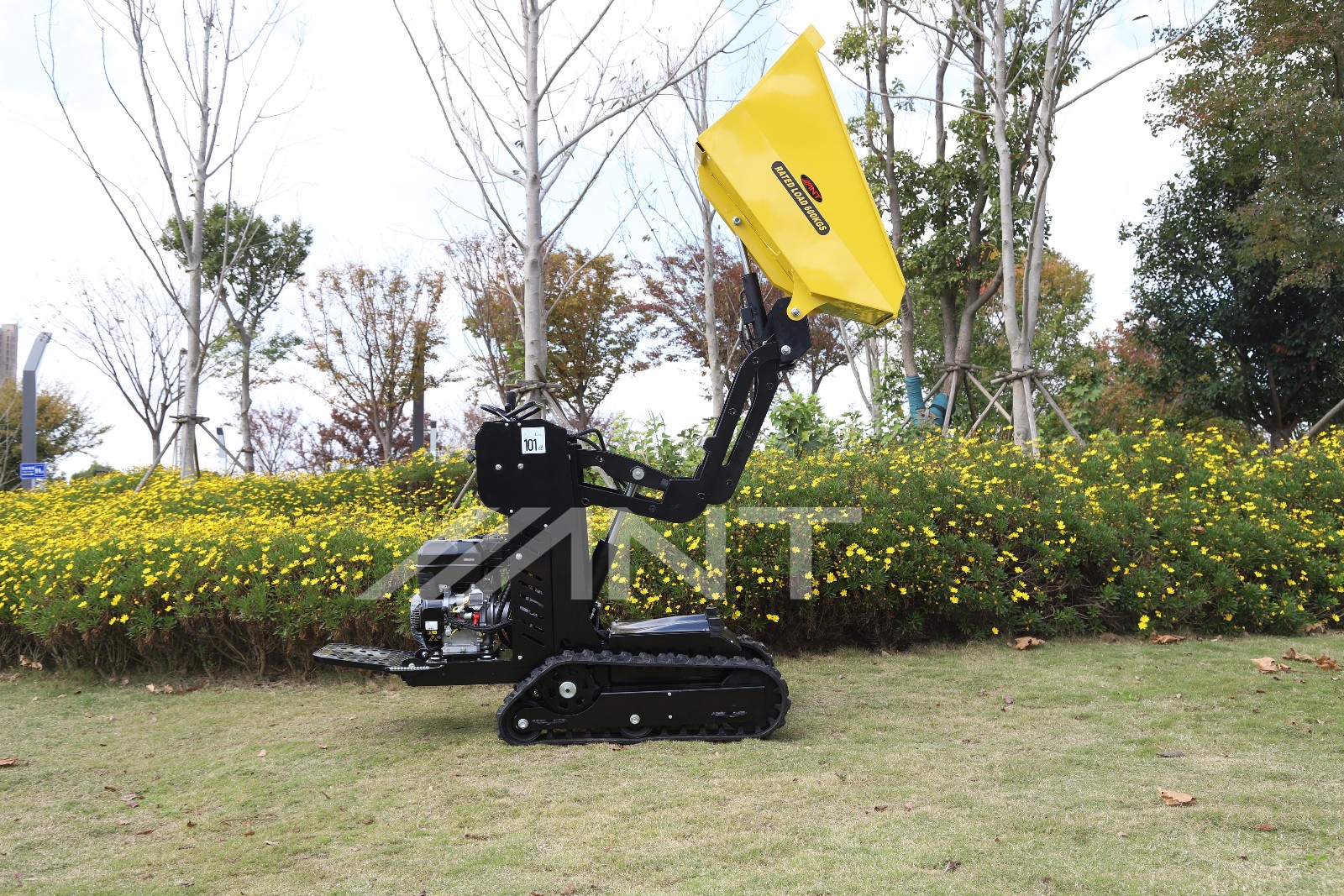

Robust Hydraulic Crawler Dumper
The 600 kg Hydraulic Mini Crawler Dumper is an incredibly robust material handling solution designed for challenging environments. Featuring a hydraulic transmission system and advanced crawler tracks, it provides superior traction and stability, whether navigating construction sites or muddy fields. Built for efficiency and ease of use, it includes a stand-on stage and a self-unloading mechanism to optimize productivity for professional operators.
Performance
Rated Load Capacity
600 kg
Load Capacity
- Lifting Height
- 1.6 m
- Unloading Mechanism
- Self-unloading
Technical Specifications
Engine Options
- B&S 13.5HP, 4-stroke
- HONDA GX390 13.5HP, 4-stroke
- Transmission System
- Hydraulic
- Drive Type
- Crawler driven
- Hydraulic Pump
- Gear pump
Design & Features
Drum Finish
Yellow powder coating
- Self-Shovel Included
- No
- Key Operational Features
- Stand-on stageCrawler designHydraulic transmission
