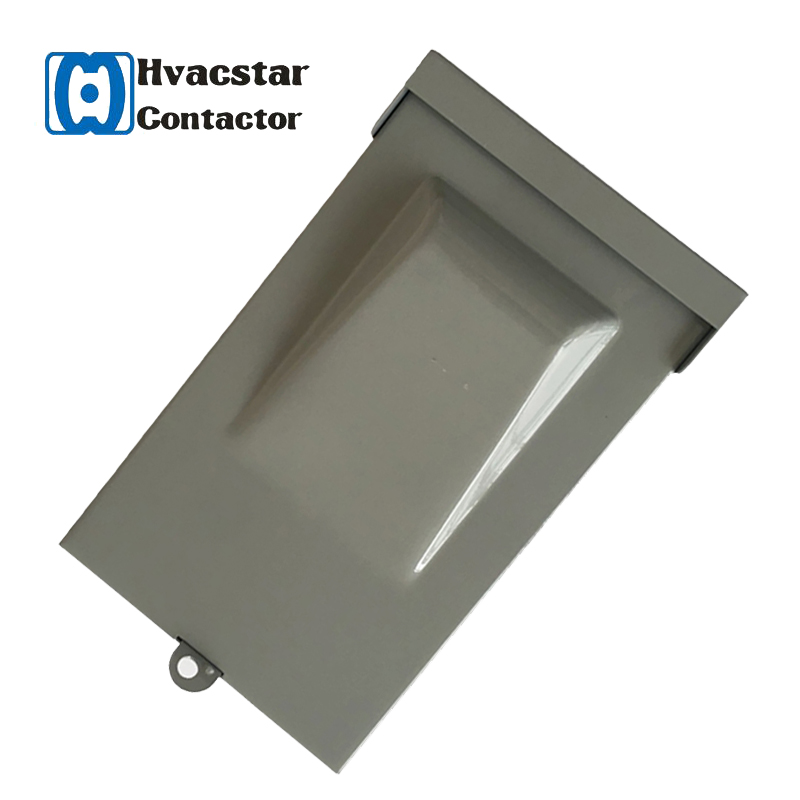

60 Amp Metallic AC Disconnect Fuse Box
This metallic 60 amp AC disconnect fuse box is designed for central air conditioning units. It provides a safe and reliable method for disconnecting power to the air conditioner for servicing or maintenance.
Technical Specifications
Product Overview
Reliable Outdoor Power Disconnect
This metallic AC disconnect fuse box provides a secure and visible method for cutting power to outdoor air conditioning systems. Designed with a durable, rain-proof NEMA 3R enclosure, it ensures safety during maintenance by allowing users to lock the unit in the OFF position. The pullout handle design prevents accidental activation and enhances operational safety for both residential and commercial HVAC applications.
Technical Specifications
Rated Current
60 A
Amperage
Enclosure Type
NEMA 3RRain-proof
- Wire Compatibility
- Aluminum/Copper (Al/Cu), 60°C or 75°C
- Short Circuit Current Rating
- 10,000 Amperes RMS symmetrical, 240V AC max
Features
Safety & Design

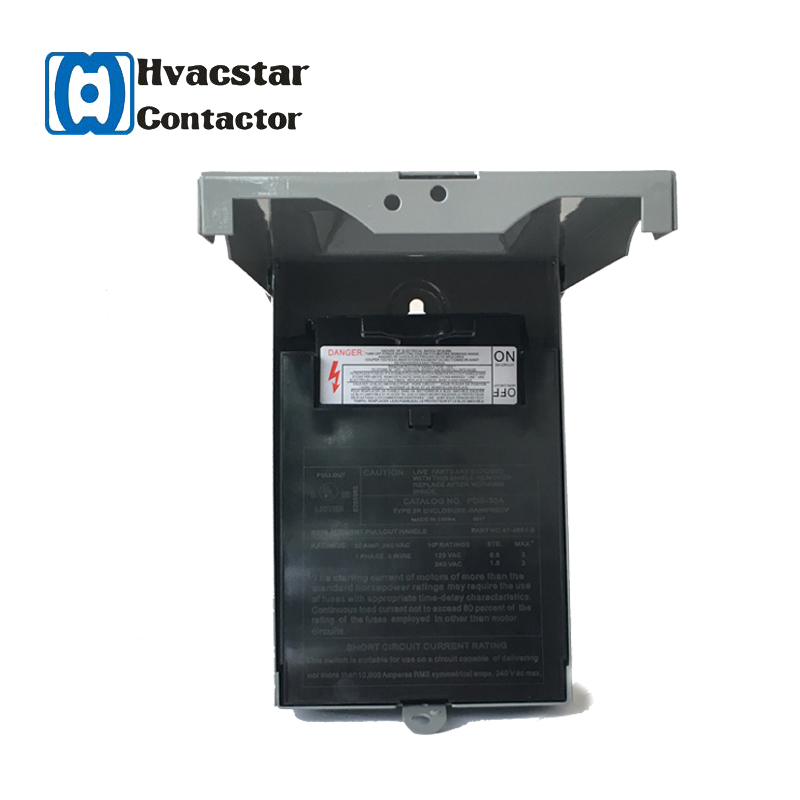

- Pullout handle for On/Off control
- Handle storage compartment in OFF position
- Protective shield prevents access while power is connected
- Lockable design for unauthorized access prevention
Compliance & Quality
- Certifications
- CUL Listed
- Quality Control
- 100% self-inspection and testing before packing
