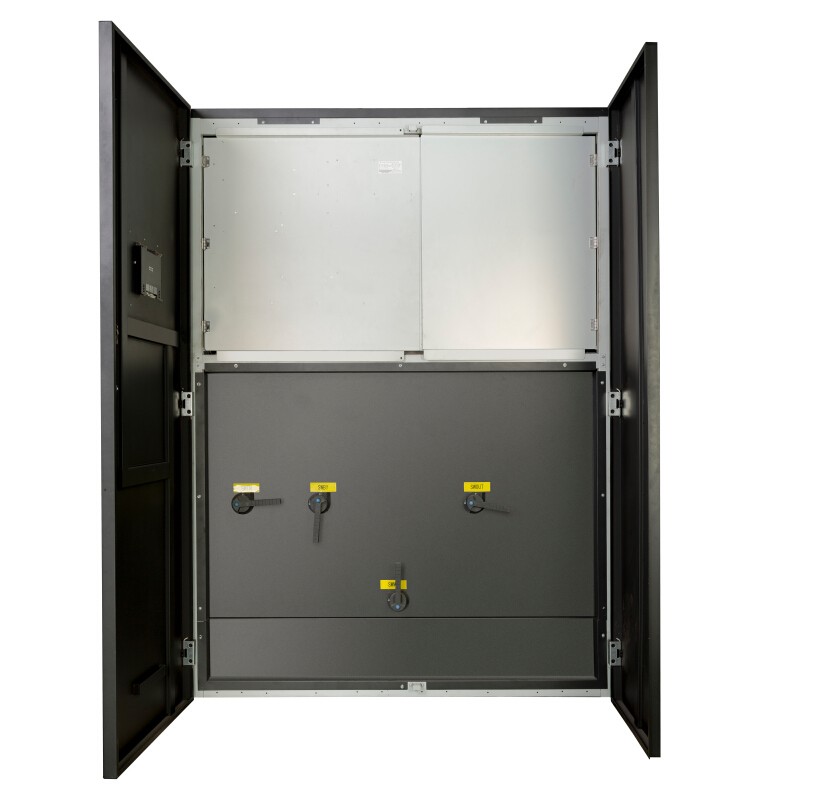

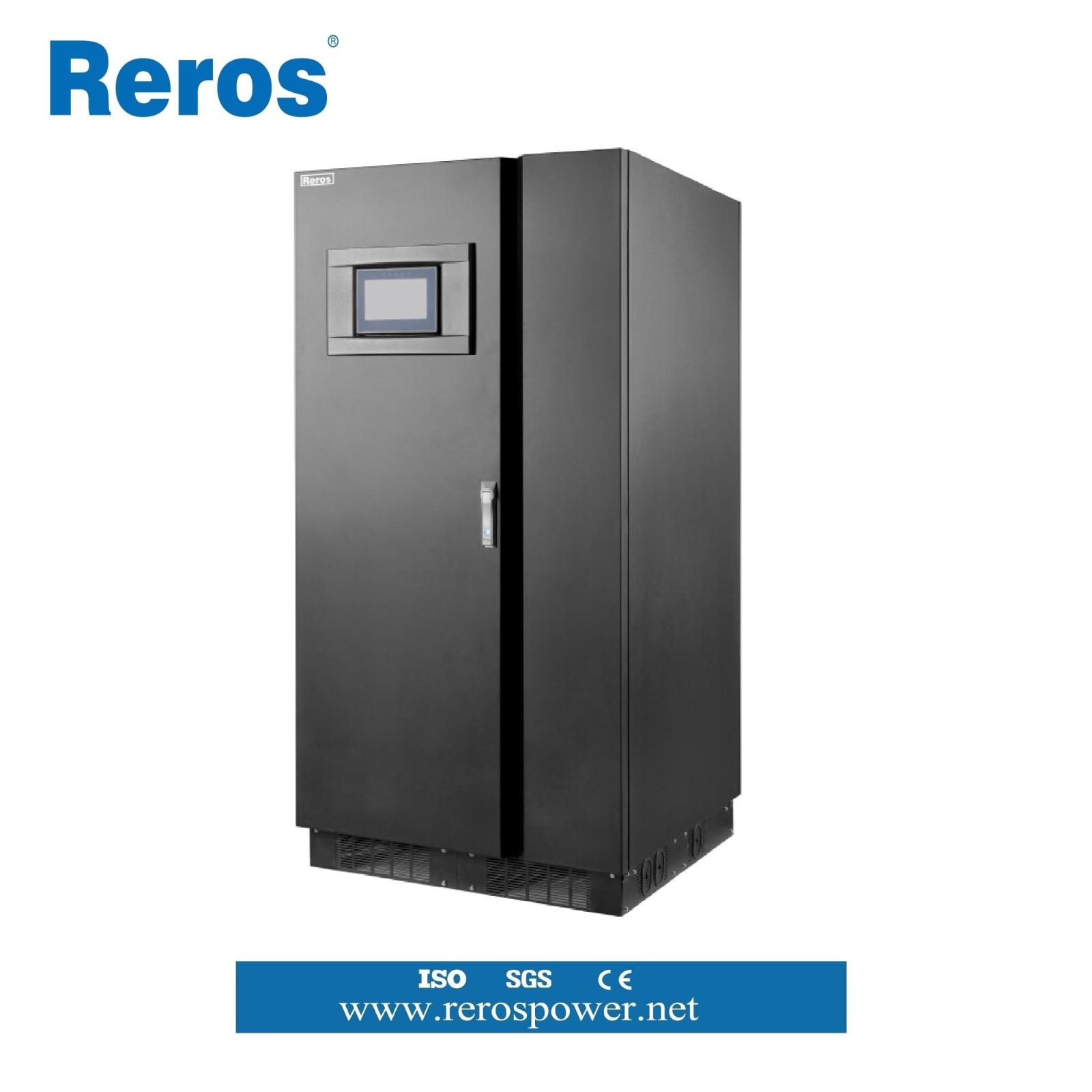

60-600 kVA Three-Phase Low-Frequency Online UPS
This three-phase low-frequency online UPS provides a stable and reliable power source, protecting critical equipment from power outages and voltage fluctuations. Its transformer base offers enhanced isolation and robustness.
Technical Specifications
Overview
High-Capacity Three-Phase Power Protection
This 60-600 kVA low-frequency online UPS is designed for critical infrastructure requiring robust power isolation and reliability. Featuring a built-in output isolation transformer and IGBT inverter technology, it provides stable, clean power even in harsh industrial environments. Its 3-phase design supports 100% unbalanced loads, making it an ideal solution for data centers, medical facilities, and precision industrial equipment.
Performance Metrics
Capacity Range
60 kVA
Minimum Capacity
600 kVA
Maximum Capacity
Technical Features
Core Technologies
- IGBT Inverter technology
- Output isolation transformer
- Full DSP digital control
- 6-pulse rectifier system
- Manual maintenance bypass switch
- Load Capability
- Allows 100% unbalanced 3-phase load
Control & Interface
- User Interface
- 7-inch touchable LCD screen
- Communication Interface
- RS232RS485Dry ContactSNMP (Optional)EPO (Optional)
Applications
Target Sectors
Data CentersIndustrial EquipmentCommercial FacilitiesTelecom SystemsMedical SystemsBanking SystemsPrecision Instruments
Model Specifications
Model Capacity Comparison
| Model Series | Capacity (kVA) |
|---|---|
| 3B3GX 60K | 60 |
| 3B3GX 80K | 80 |
| 3B3GX 100K | 100 |
| 3B3GX 120K | 120 |
| 3B3GX 160K | 160 |
| 3B3GX 200K | 200 |
| 3B3GX 250K | 250 |
| 3B3GX 300K | 300 |
| 3B3GX 400K | 400 |
| 3B3GX 500K | 500 |
| 3B3GX 600K | 600 |
Compliance & Quality
- Certifications & Standards
- CEISO 9001:2015ISO 14001:2015ISO 45001:2018SGSTLC
