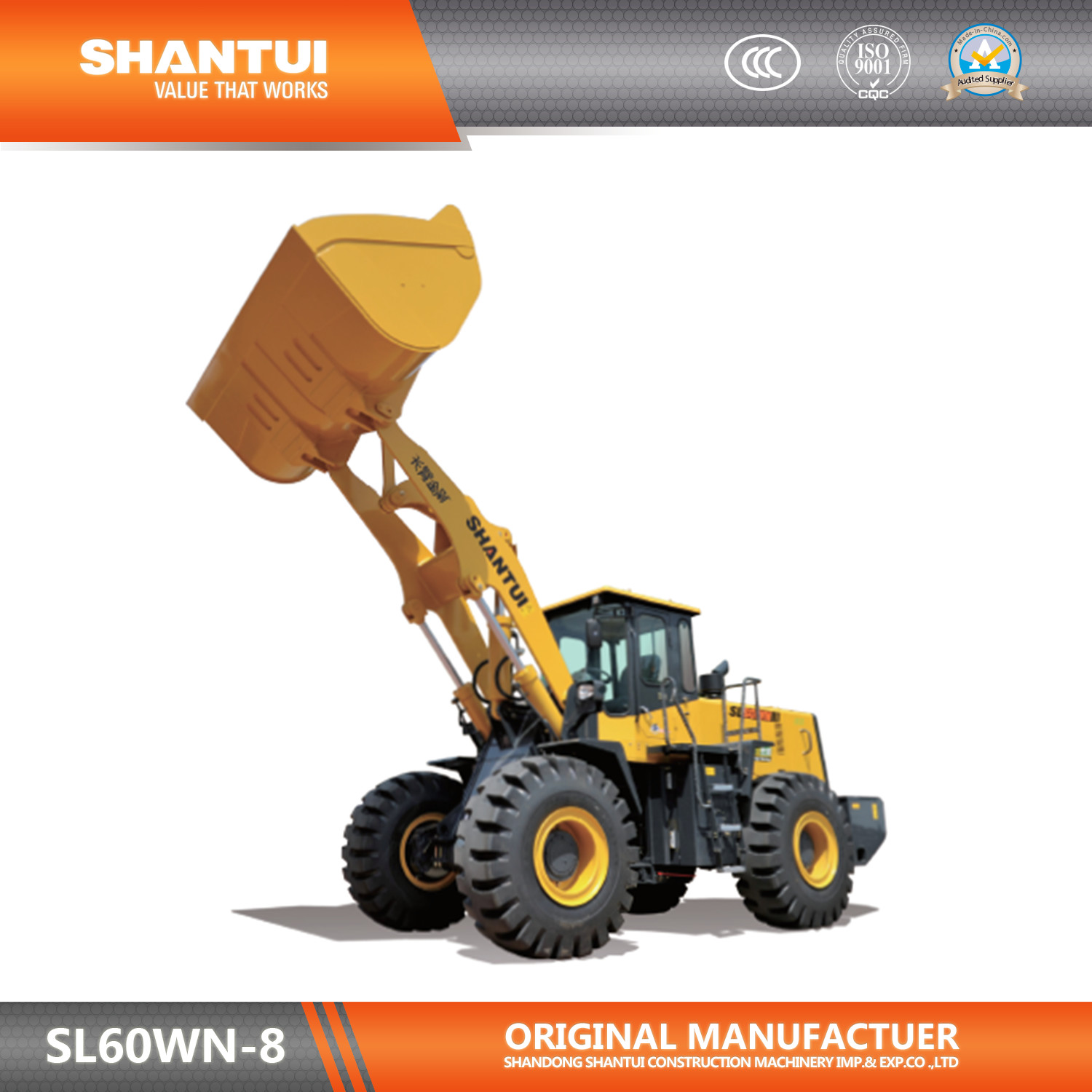

6-Ton Wheel Loader for Earthworks and Mining
This 6-ton wheel loader features tubeless tires with deeper treads for enhanced traction. It delivers upgraded performance, strength, and efficiency with a tight wheel base for a superior turning radius.
Technical Specifications
Product Overview
High-Performance Wheel Loader
The 6-ton wheel loader is engineered for demanding earthworks and mining operations, featuring upgraded power, strength, and efficiency. It utilizes advanced tubeless tires with deep treads to ensure superior traction and stability across rugged terrain. Designed with a tight wheelbase, this machine offers exceptional maneuverability and a surprisingly small turning radius for its class.
Technical Specifications
Dumping Parameters
| Feature | Value |
|---|---|
| Standard Boom Reach | 1275 mm |
| Long Boom Reach | 1266 mm |
| Standard Boom Height | 3330 mm |
| Extended Boom Height | 3450 mm |
| Long Boom Height | 3755 mm |
- Dimensions (L×W×H)
- 8670×3072×3548 mm
- Operating Weight
- 21000 kg
- Engine Model
- Weichai WD10G240E21
Performance Metrics
Performance Overview
178 kW
Rated Power
2,200 rpm
Rated Speed
3.5 m3
Bucket Capacity
Features
Technical Advantages
- Electronically controlled transmission with 4 forward and 3 reverse gears
- 12-degree vertical swing design for enhanced ground contact on rugged roads
- Optimized 3400mm wheelbase for heavy-duty stability
- Advanced high-pressure hydraulic hoses with dual O-ring sealing
- Tapered roller bearing articulated structure
- Available Attachments
- Timber GrabBale GrabCoal Bucket
