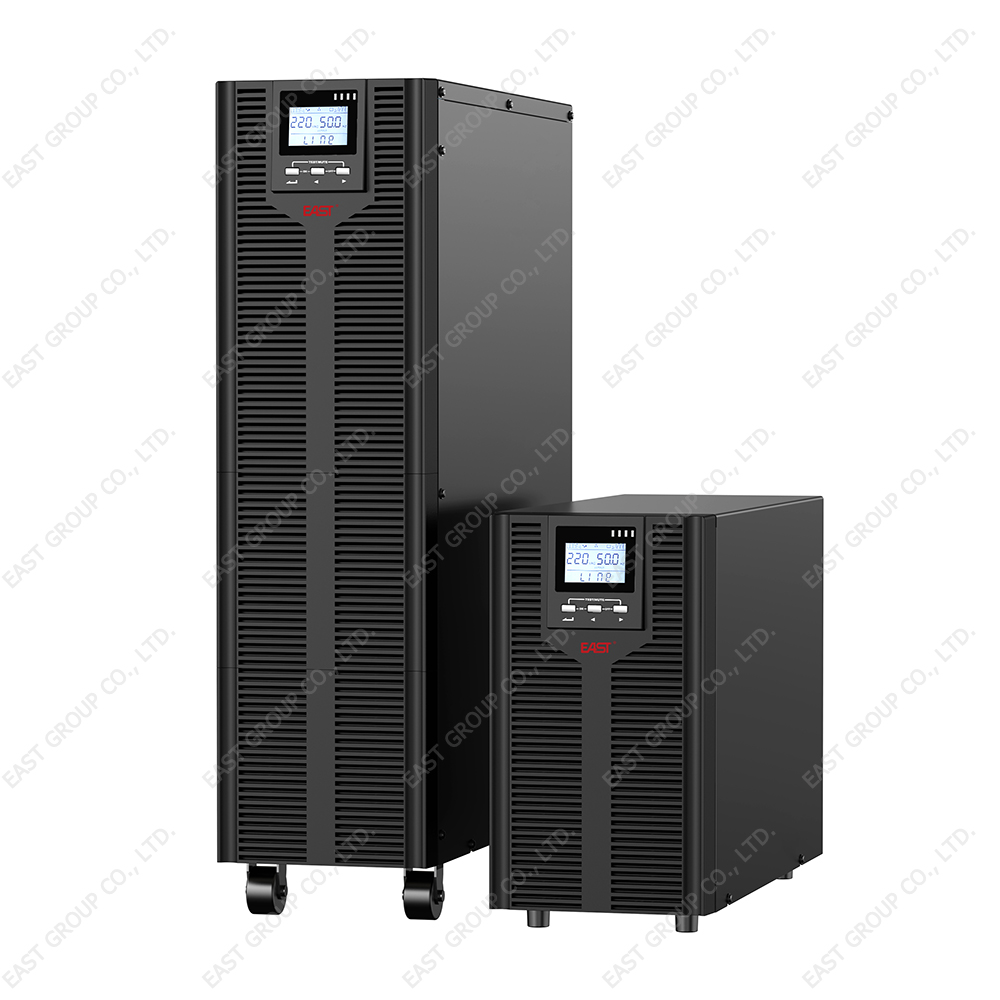

6-10 kVA Online Uninterruptible Power Supply
This high-performance online UPS utilizes advanced DSP technology. It has an output power factor of 1.0.
Technical Specifications
Overview
High-Performance Power Protection
This 6-10 kVA Online Uninterruptible Power Supply (UPS) utilizes advanced DSP technology and double-conversion architecture to provide continuous, reliable power protection. Designed for critical infrastructure like server rooms and data centers, it features an output power factor of 1.0 and high efficiency reaching up to 98.5% in ECO mode. The unit offers flexible battery configurations and intelligent management to extend service life, ensuring sensitive electronic equipment remains protected against voltage fluctuations and outages.
Performance Metrics
Efficiency & Power
95.5 %
Efficiency (Normal)
98.5 %
Efficiency (ECO Mode)
1
Output Power Factor
0.99
Input Power Factor
Electrical Specifications
- Input Voltage Range
- 110 ~ 300 Vac
- Frequency Sensing
- 50 / 60 Hz Auto Sensing
Battery Management
- Battery Configuration
- 16 Batteries18 Batteries20 Batteries
- Max Charging Current
- 12 A
Connectivity & Interfaces
Available Interfaces
- RS232
- USB
- RS485
- SNMP
- Dry Contacts
- Smart Card Slot
Optional Accessories
SNMP CardUSB CardRS485 CardDry ContactsEMDSMS Alarms
Operational Features
System Protections
- Software & Hardware Protection
- Robust Self-Diagnostic Function
- Intelligent Fan Speed Control
- Emergency Power Off (EPO)
