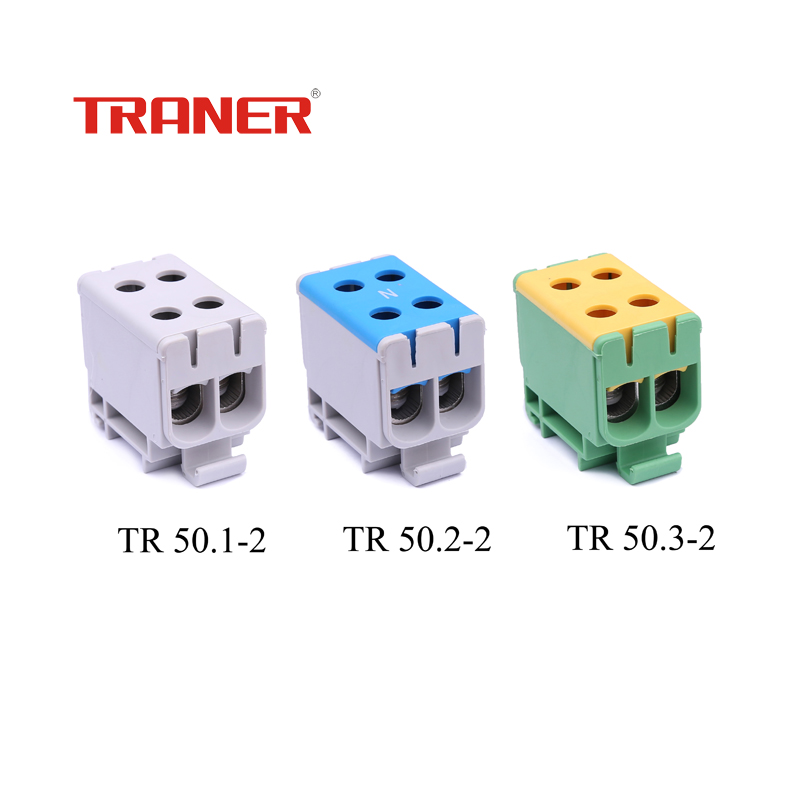

50mm2 Aluminum/Copper Cable Terminal Block
This universal terminal block is designed for connecting aluminum and copper cables. It provides a secure and reliable connection for electrical power transmission and distribution applications.
Technical Specifications
Product Overview
Universal Connectivity
The TR series Al/Cu universal terminal block is engineered for secure and reliable connections in electrical power transmission and distribution systems. Designed to accommodate both aluminum and copper conductors, these blocks feature a compact design and robust housing material that ensures long-term performance. Installation is quick and efficient, supporting both DIN rail and screw mounting for professional electrical applications.
Technical Specifications
Nominal Current Range
145 A
Min Current
425 A
Max Current
- Conductor Cross-Section
- Al 6-240 mm2Cu 2.5-240 mm2
- Compliance Standards
- CERoHSEN 60947-7-1EN 61238-1
Materials and Design
Material Specifications
| Component | Material |
|---|---|
| Housing | UL 94 V-0 Polyamide |
| Metal Body | Tinned Aluminum |
| Screws | Steel |
Installation Features
Mounting Methods
- DIN rail
- Screw mounting
- Screw Head Style
- Hexagonal
