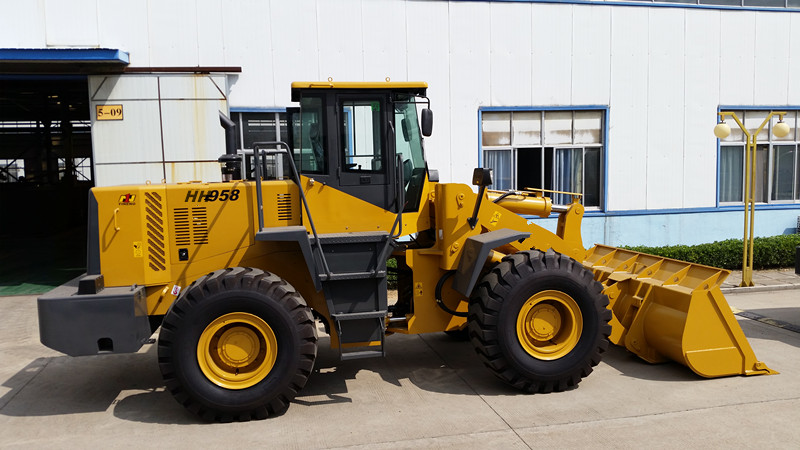

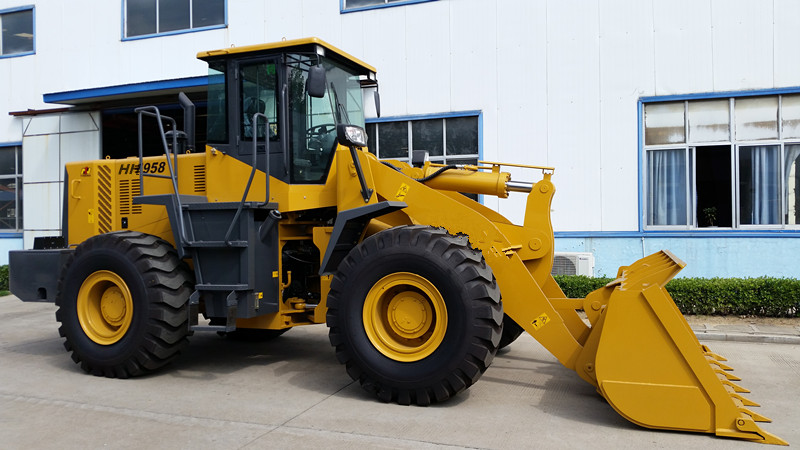

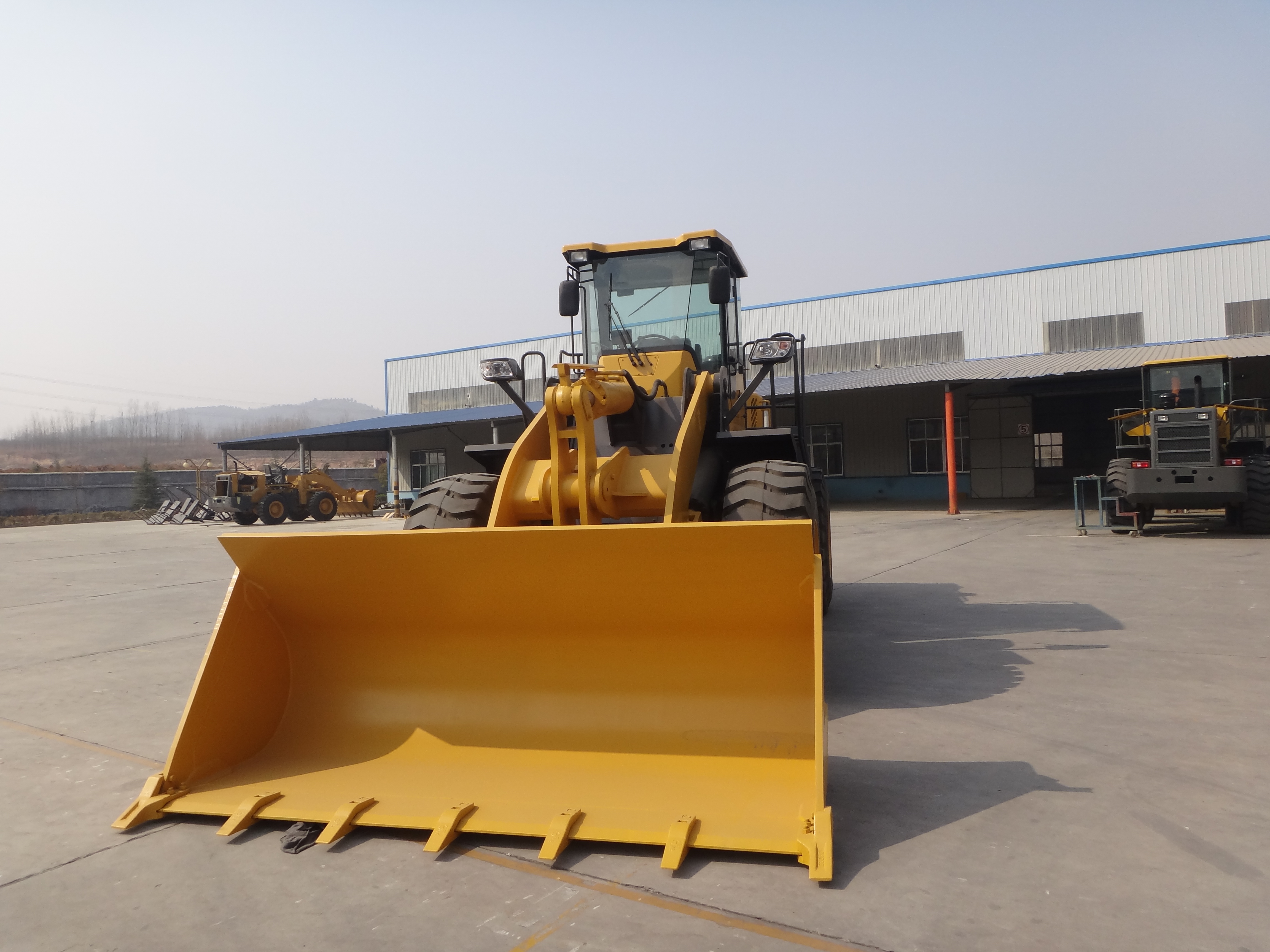

5000kg Wheel Loader for Construction
This 5000kg wheel loader is a heavy-duty machine designed for efficient material handling in construction and mining environments. It features a robust hydraulic system and a comfortable operator cabin for enhanced productivity.
Technical Specifications
Product Overview
Heavy-Duty Construction Performance
The 5000kg wheel loader is a robust and powerful machine engineered for heavy-duty material handling in demanding environments such as construction sites and mining operations. It features a high-torque engine, a reinforced chassis, and an efficient hydraulic system to maximize productivity and ensure operational reliability. With a focus on operator comfort and ease of maintenance, this machine provides the strength and precision needed for large-scale earthmoving and loading tasks.
Key Performance Metrics
Core Specifications
5,000 kg
Rated Load
3 m³
Bucket Capacity
170 kN
Max Breakout Force
162 kW
Rated Power
Technical Specifications
Machine Dimensions
| Parameter | Value |
|---|---|
| Overall Dimensions | 7960*3070*3490mm |
| Wheel Base | 3200mm |
| Wheel Tread | 2250mm |
| Min Ground Clearance | 478mm |
Operational Capabilities
- Dumping Height: 3100mm
- Dumping Reach: 1285mm
- Max Travel Speed: 36km/h
- Min Turning Radius: 6360mm
- Steering Angle: 35°
- Max Grade Ability: 28°
Equipment Options
- Available Options
- Cummins EngineZF Gearbox OptionsAir ConditioningJoystick ControlQuick-hitchFork AttachmentROPS Cabin
