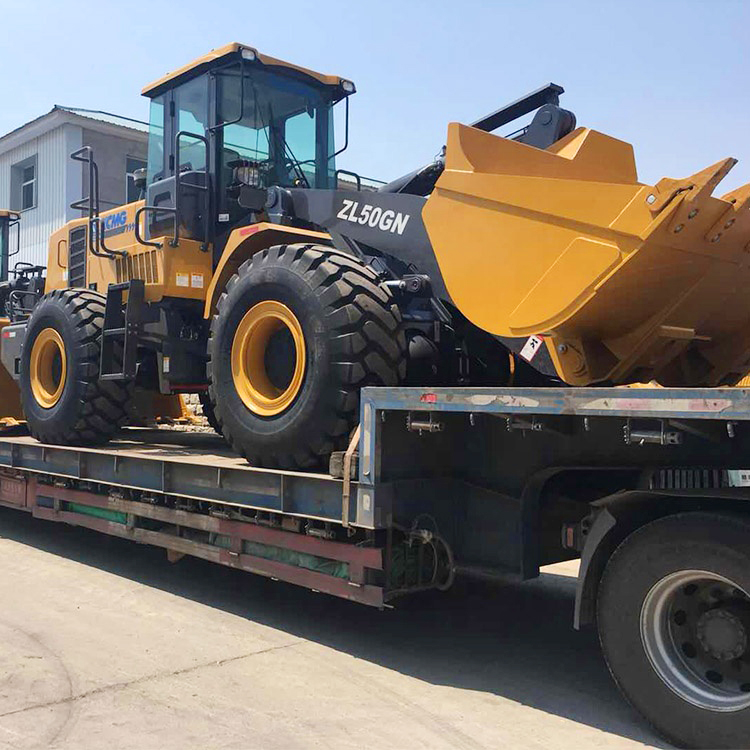

5-Ton Wheel Loader with 3.0 m3 Bucket
This wheel loader has a high-strength, wear-resistant bucket design. It utilizes high-strength, wear-resistant material in its construction.
Technical Specifications
Overview
High-Performance 5-Ton Wheel Loader
This robust 5-ton wheel loader is engineered for heavy-duty material handling, featuring a high-strength, wear-resistant bucket design that improves durability and impact resistance by over 30%. With an optimized boom hinge system, it reduces dumping impact to ensure long-term reliability in demanding environments. The machine is designed for ease of maintenance, ensuring it remains in peak operational status for maximum productivity.
Performance
Rated Operating Load
5,000 kg
Rated Operating Load
175 kN
Max Breakout Force
- Bucket Capacity
- 3 m3
- Gradeability
- 30 deg
Engine & Hydraulics
Engine Specifications
| Metric | Value |
|---|---|
| Rated Power | 162 kW |
| Max Horse Power | 160 kN |
- Hydraulic Cycle Time
- 10.5 s
Dimensions & Maneuverability
- Overall Dimensions (L x W x H)
- 8225 x 3016 x 3515 mm
- Wheel Base
- 3300 mm
- Min. Turning Radius (over tyres)
- 5925 mm
- Articulation Angle
- 38 deg
Technical Features
- Tyre Size
- 23.5-25-16PR
- Machine Weight
- 17500 kg
