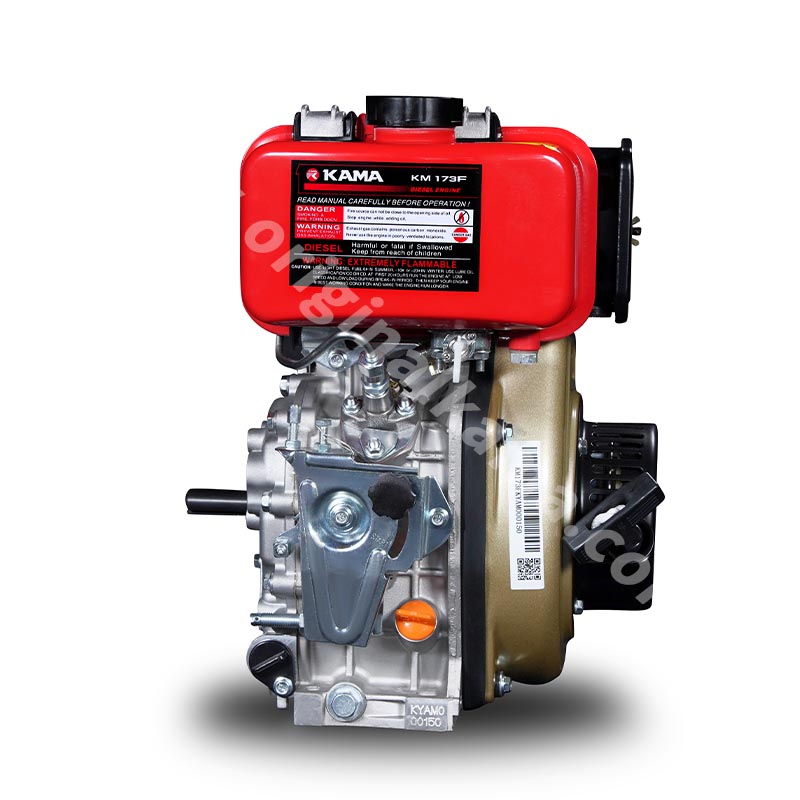

5 HP Single-Cylinder Diesel Engine
This 5 HP diesel engine is a robust and reliable power source designed for a variety of applications. The single-cylinder, air-cooled engine delivers efficient performance and durability.
Technical Specifications
Overview
High-Performance Air-Cooled Diesel Engine
This air-cooled single-cylinder diesel engine delivers a maximum power output of 4.0KW (5.5HP), making it a versatile power source for various industrial and agricultural applications. Designed with direct injection optimization technology, it offers superior fuel efficiency and reliable starting capabilities. Its compact, lightweight architecture and ability to operate in extreme environmental conditions—from high altitudes to extreme temperatures—ensure dependable performance in diverse and challenging settings.
Performance Metrics
Power Output
4 KW
Max Power
5.5 HP
Max Power
Output Ratings
- Rated Output (3000 rpm): 3.3 KW (4.5 HP)
- Rated Output (3600 rpm): 3.7 KW (5.0 HP)
- Max Output (3000 rpm): 3.7 KW (5.0 HP)
- Max Output (3600 rpm): 4.0 KW (5.5 HP)

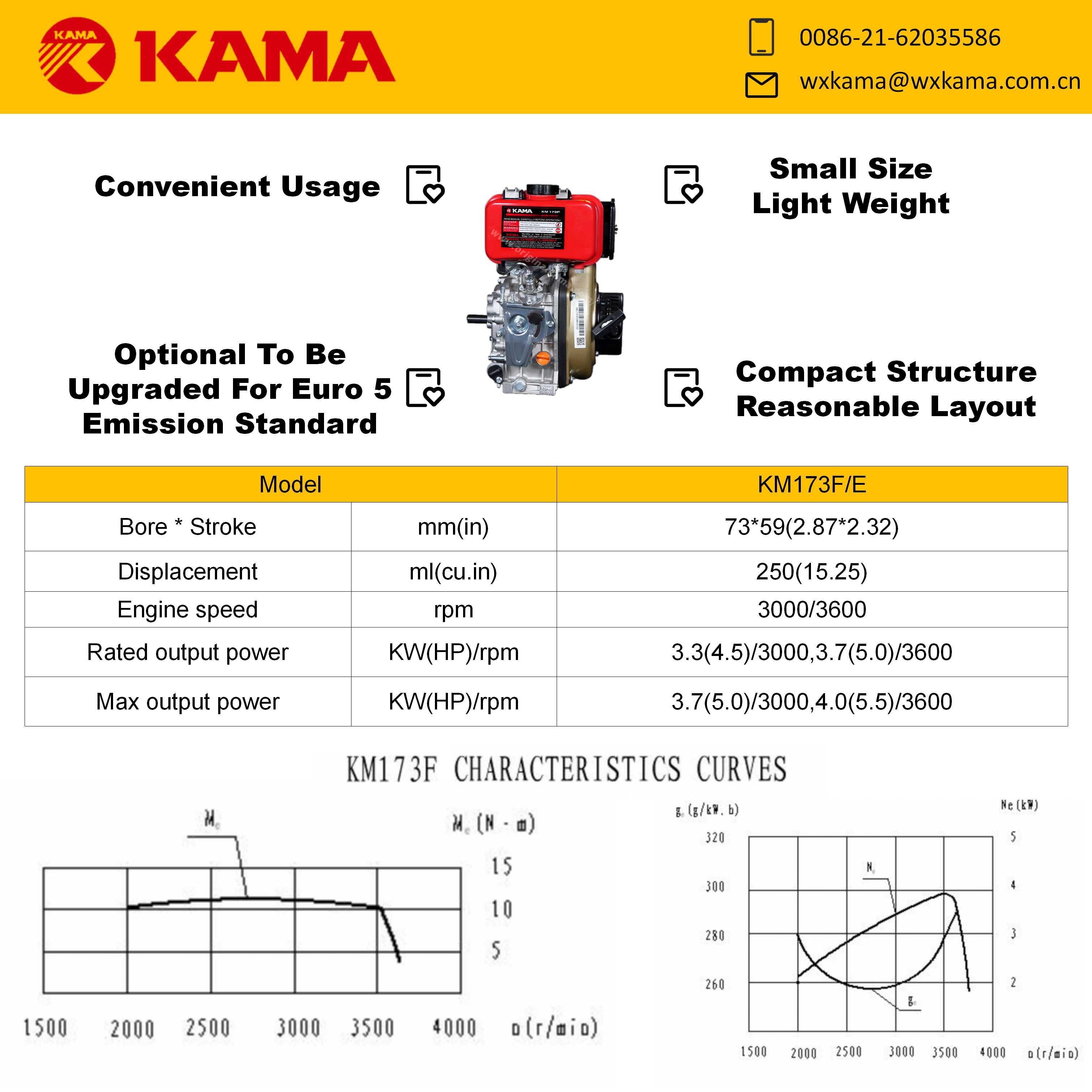

Technical Specifications
Engine Specifications
| Parameter | Value |
|---|---|
| Bore * Stroke | 73 * 59 mm |
| Displacement | 250 ml |
| Engine Speed | 3000 / 3600 rpm |
Features & Benefits
- Key Features
- LightweightCompact StructureDirect InjectionLow EmissionsAir-Cooled
Environmental Adaptability
Environmental Limits
- Max Altitude: 4500m
- High Cold Tolerance: Down to -41°C
- High Heat Tolerance: Up to +46°C
Compliance
Certifications
Euro 5
