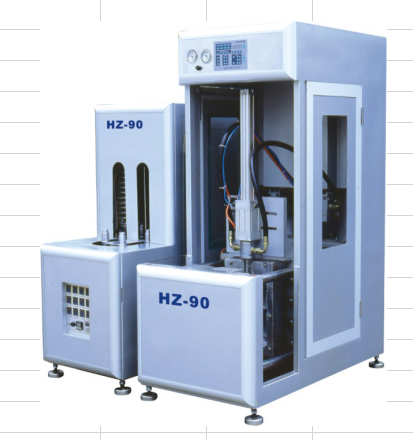

5-Gallon Semi-Automatic Blow Molding Machine
This semi-automatic blow molding machine produces 5-gallon bottles and similar containers. It features robust construction and user-friendly controls for efficient operation.
Technical Specifications
Overview
Versatile Blow Molding Solution
This semi-automatic blow molding machine is engineered for the efficient production of large-format containers, including 3-gallon and 5-gallon bottles. It also demonstrates versatility by supporting the manufacturing of big-size bottles and PMMA lampshades. Designed for small to medium-scale production environments, it provides a reliable balance between automated heating/blowing processes and manual operation.
Performance
Production Capacity
- Model
- HZ-90
Capabilities
- Compatible Products
- 3-Gallon Bottles5-Gallon BottlesLarge ContainersPMMA Lampshades
Technical Details
Operation Mode
Process Features
- Manual preform loading
- Manual bottle unloading
- Automated heating system
- Automated blowing process
Precision Molding Design
The system utilizes a two-part mold specifically engineered for large-volume containers. The design incorporates integrated venting and cooling channels to ensure consistent wall thickness, structural integrity, and efficient plastic material distribution during the blowing phase.
