48V 1000W Electric Bike Mid Drive Motor Kit

This electric bike mid-drive motor kit provides 48V and 1000W of power. It is designed to convert a standard bicycle into an electric bike, providing enhanced speed and climbing ability.

Request a Quote Download PDFPDF

Bafang G510 48V 1000W ultra G510 mid motor Kit Ebike Kit M620 Electric Mid Drive motor - Image 1

Technical Specifications

Product Overview

High-Performance Mid-Drive System

The G510 mid-drive motor system utilizes a high-frequency torque sensor and dual speed sensors sampling at 80kHz to ensure precise vehicle control and maximum efficiency. Despite its massive 160N.m torque output, the motor operates in virtual silence, providing a powerful yet refined riding experience. Its modular design with an integrated controller simplifies maintenance and improves service responsiveness for long-term reliability.

Technical Performance

Core Performance Metrics

1,000 W

Rated Power

48 V

Voltage

160 N.m

Max Torque

Motor Specifications

Parameter	Value
Construction	Geared Brushless Mid Motor
Efficiency	≥80%
RPM	150/190
Noise Level	<55dB
IP Rating	IP65
Operating Temp	-20°C to 45°C
Axle Standard	JIS

Compatibility & Components

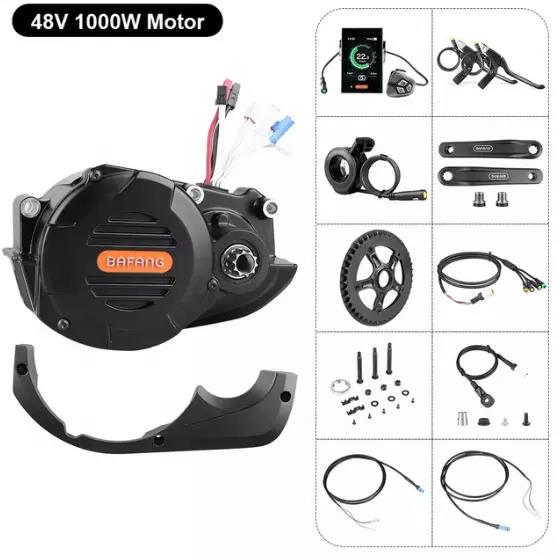

Standard Kit Packing List

Mid motor unit
DPC-18 LCD Color Display
Thumb throttle
Integrated Speed & Torque sensor

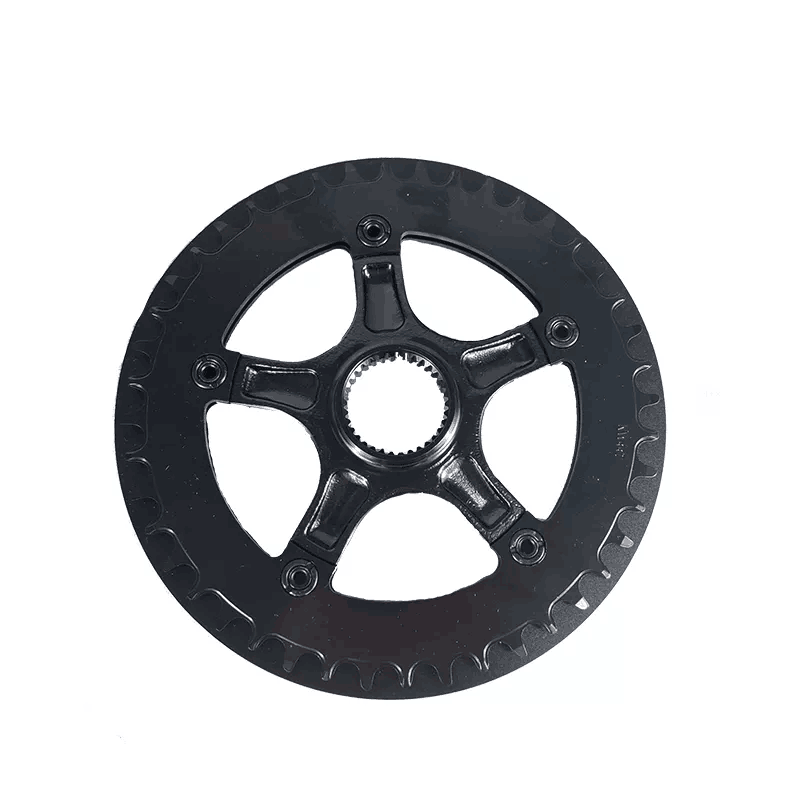

44T Chain wheel
170mm Cranks (pair)
Brake levers (pair)
Frame adapter
Main wiring cable
Installation nuts and screws

Optional Add-ons

Hydraulic Brake SensorProgramming CableShift Sensor SS01

Supported Wheel Sizes: 12"14"16"18"20"22"26"28"

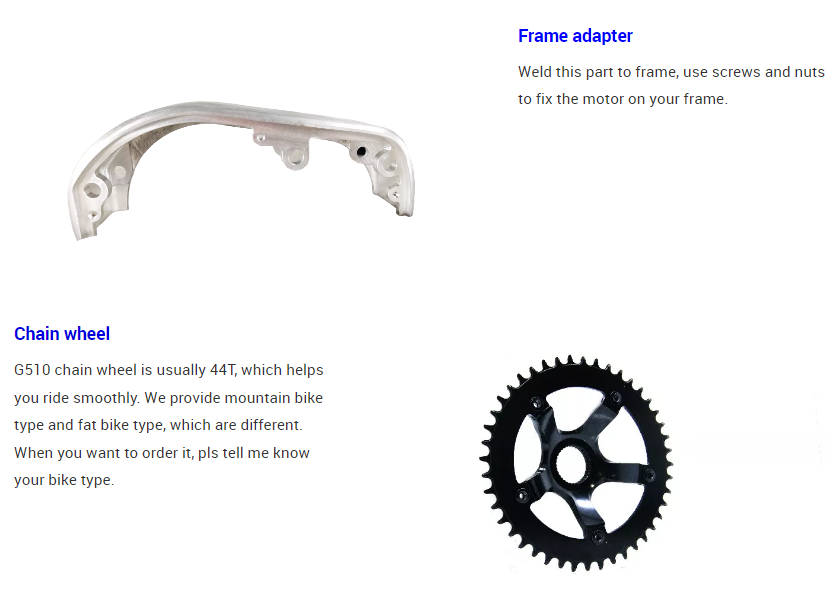

Chain wheel and frame adapter details — Standard 44T chain wheel and frame adapter for secure motor mounting.

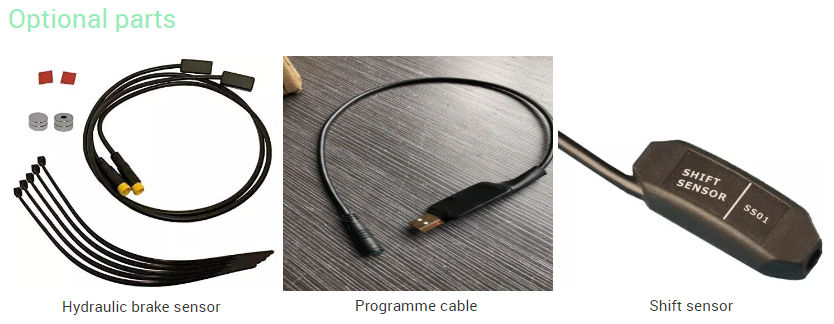

Optional e-bike kit components — Enhance your build with optional hydraulic sensors and programming cables.

Installation & Design

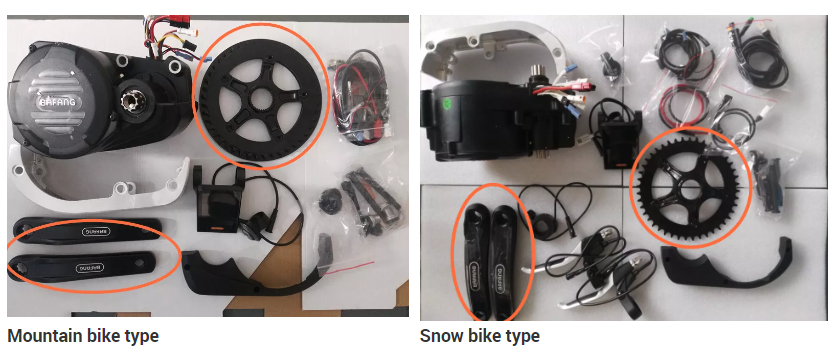

Bike Type Configurations: Available in Mountain Bike and Snow/Fat Bike configurations with specific crank and chain wheel shapes.

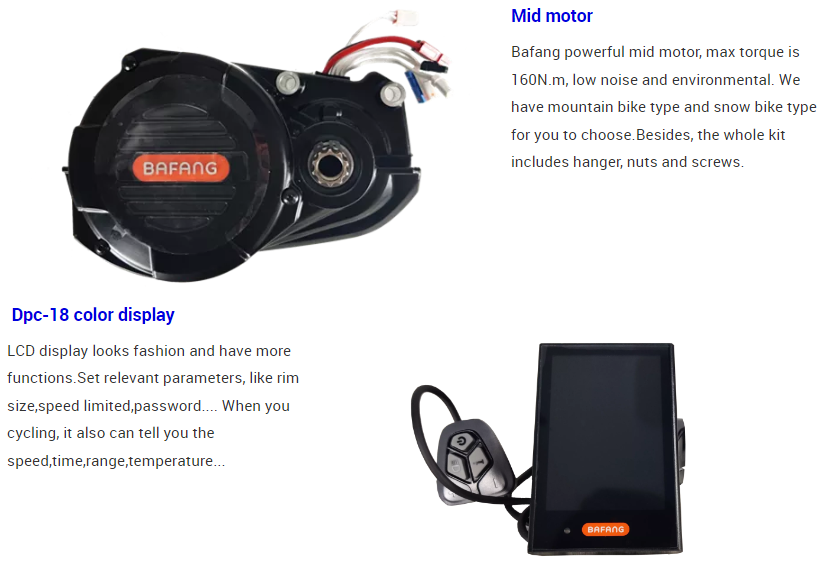

User Interface: DPC-18 Color LCD display supporting rim size settings, speed limits, password protection, and real-time data (speed, range, temperature).
