4-Ton Underground Wheel Loader
This underground wheel loader has a 4-ton loading capacity. It is suitable for tunnel sections not less than 2.5m*2.5m.
Technical Specifications
Overview
High-Performance Underground Loader

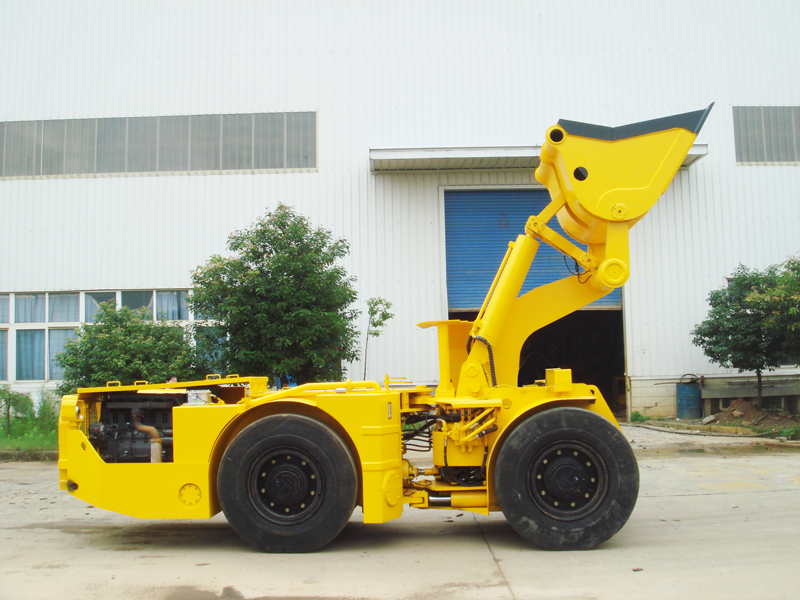

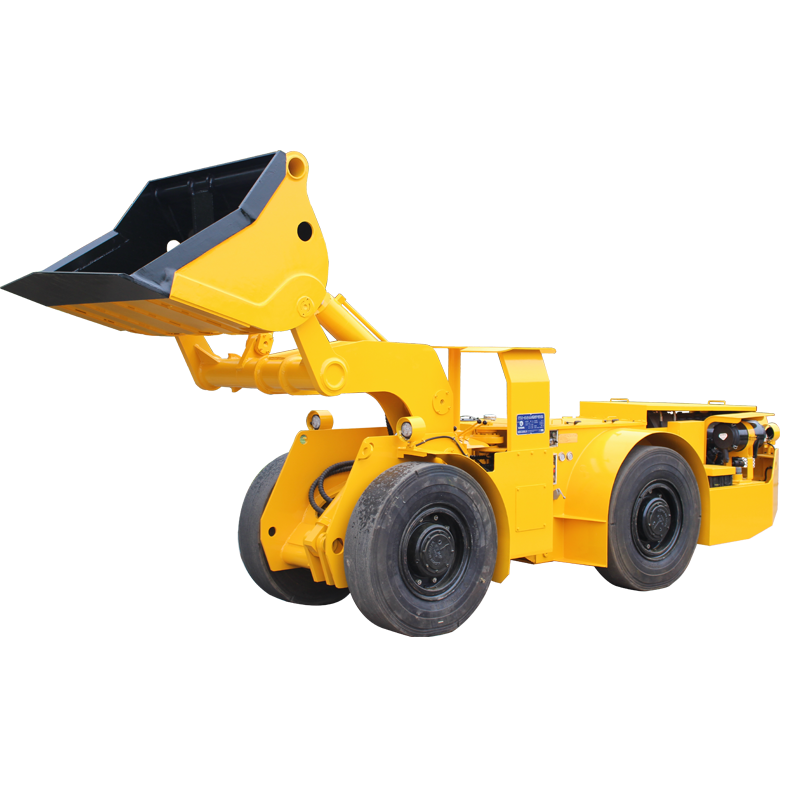

The WJ-2G is a robust diesel-powered underground wheel loader engineered for efficient material handling in demanding mining environments. Featuring a 2m³ bucket volume and a 4-ton loading capacity, it is specifically designed for tunnel sections of at least 2.5m x 2.5m. The machine utilizes high-quality imported engine and hydraulic components to ensure reliability, performance, and durability in narrow, confined spaces.
Performance Metrics
Core Performance
2 m3
Bucket Volume
3,800 kg
Max Loading Capacity
1,800 mm
Max Dumping Height
Technical Specifications
Machine Specs
| Parameter | Specification |
|---|---|
| Total Weight | 12500 kg |
| Engine Power | 84 kW |
| Max Shovel Force | 95 kN |
| Turning Radius (Outer) | 5150 mm |
| Dimensions (LxWxH) | 7500x1750x2100 mm |
Certifications
- Quality & Compliance
- CEQS9001CA
Operational Capabilities
Traveling Speeds
- Shift I: 0~3.4 km/h
- Shift II: 0~6.5 km/h
- Shift III: 0~14.0 km/h
