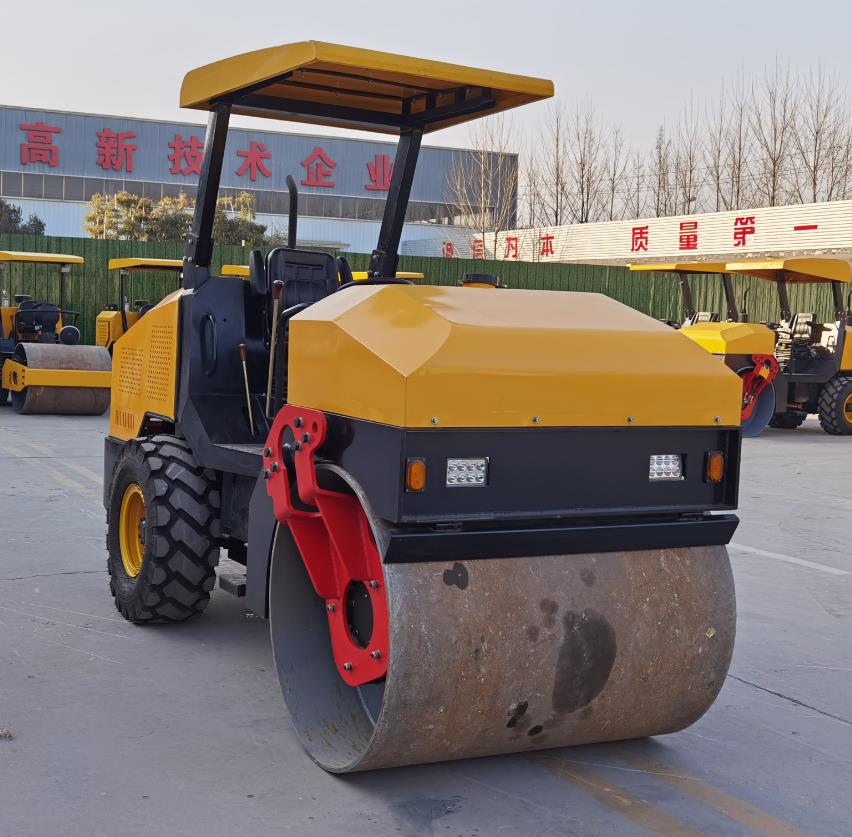

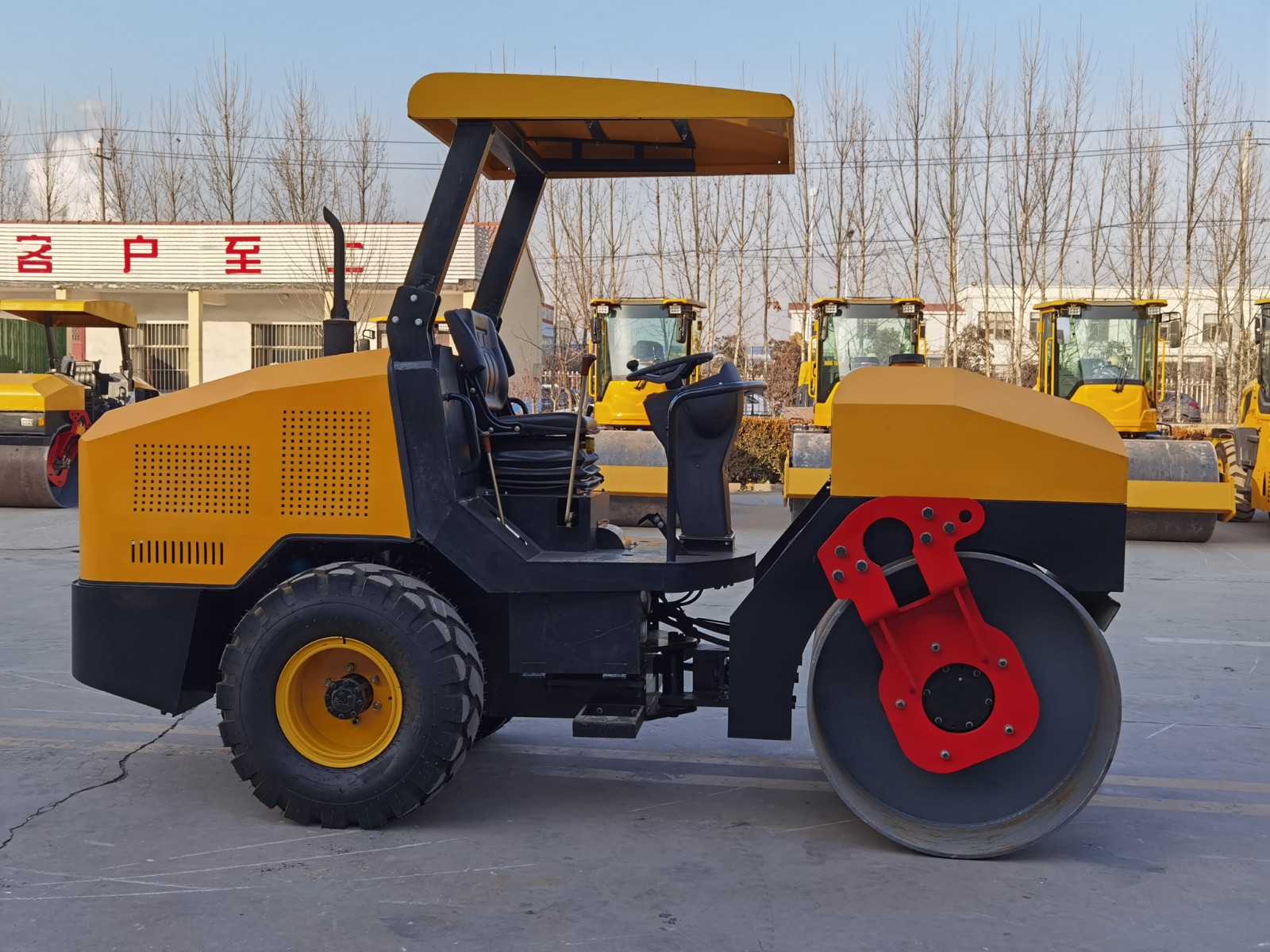

4-Ton Single Drum Soil Compactor
This 4-ton single drum soil compactor utilizes hydraulic vibration, steering, and drive for optimal performance. The engine features a 4-cylinder water-cooled design, providing strong power output for demanding compaction tasks.
Technical Specifications
Overview
High-Performance Soil Compaction
This 4-ton single drum soil compactor is engineered for efficiency and durability in road construction and maintenance projects. Featuring a powerful 4-cylinder water-cooled engine and a fully hydraulic drive system, it delivers consistent performance with low fuel consumption. Its compact, streamlined design and hydraulic steering make it highly maneuverable, ideal for working in narrow environments while ensuring reliable soil and asphalt compaction.

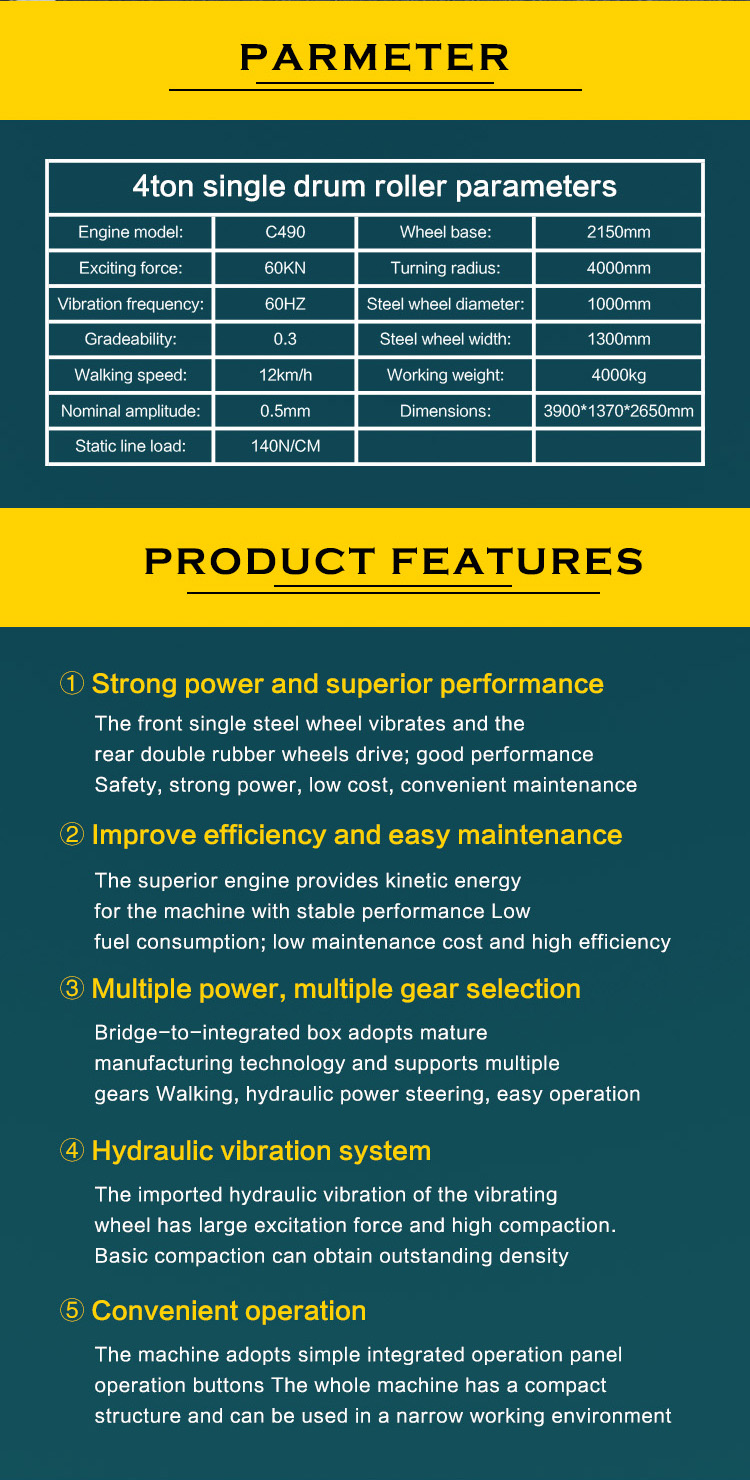

Technical Specifications
- Operating Weight
- 4000 kg
- Exciting Force
- 60 KN
- Vibration Frequency
- 60 HZ
- Static Line Load
- 140 N/CM
- Nominal Amplitude
- 0.5 mm
- Gradeability
- 0.3
Dimensions
Steel Wheel Dimensions
| Dimension | Value | Unit |
|---|---|---|
| Diameter | 1,000 | mm |
| Width | 1,300 | mm |
- Dimensions (L x W x H)
- 3900 x 1370 x 2650 mm
- Wheel Base
- 2150 mm
- Turning Radius
- 4000 mm
Performance Features
Key Capabilities
- Hydraulic vibration, steering, and drive system
- 4-cylinder water-cooled engine
- Power shift gearbox with high-speed mode
- Disc type air brake system
- Wheel side reducer for large torque
- Capabilities
- Hydraulic SteeringHydrostatic DriveCompact StructureHigh Efficiency
