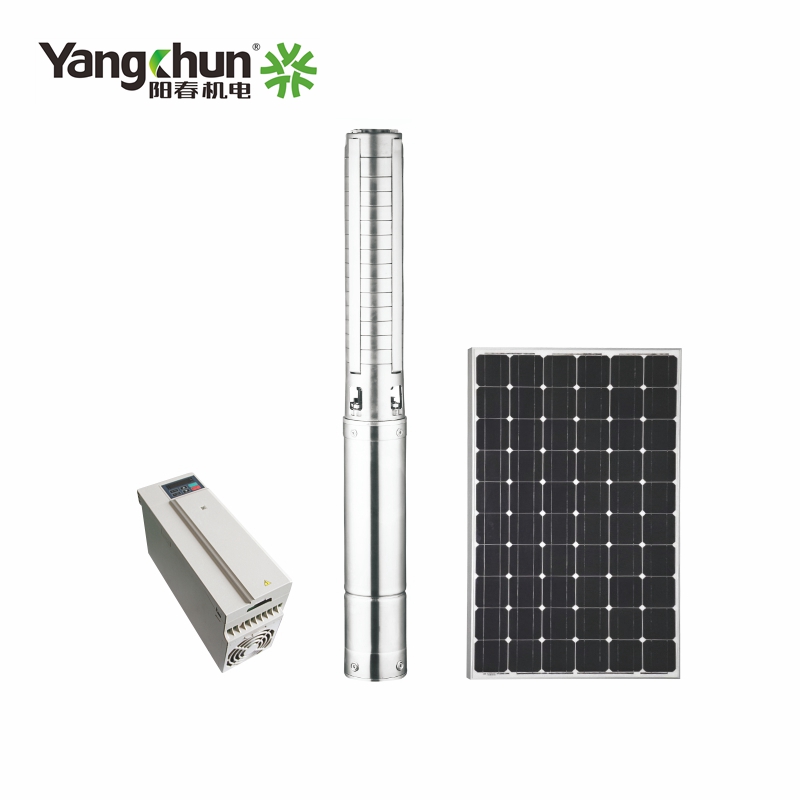

4" High Rotation Speed Solar Water Pump
This 4" solar water pump is designed for high-performance water pumping applications. Its high rotation speed motor delivers a flow rate of up to 30T/h.
Technical Specifications
Overview
Intelligent High-Speed Solar Pumping Solution
This 4-inch high-rotation speed solar water pump is designed for high-performance water extraction in remote or off-grid locations. Featuring a permanent magnet synchronous motor and all-stainless steel multistage impellers, it achieves speeds up to 5200 RPM while maintaining first-level energy efficiency. It is an ideal solution for deep well applications where drilling costs are high, offering intelligent operation and stable performance under varying solar intensities.
Performance Metrics
Key Performance Metrics
5,200 RPM
Maximum Rotation Speed
50 m³/h
Maximum Flow Rate
30 kW
Maximum Power
520 VDC
Operating Voltage
Technical Features
Energy Efficiency
Exceeds GB32030-2015 First-Level4-8% Higher than Conventional
- Motor Technology
- Permanent magnet synchronous motor
- Impeller Construction
- All stainless steel multistage impeller
Control & Operation
Controller Solutions
- Built-in control system
- External controller solutions
- Supports 3-phase AC input
- Supports DC direct input
- Intelligent Functions
- Constant PressureConstant CurrentFault Self-ProcessingIntelligent Drive AdjustmentTemperature Control
Model Specifications
Model Performance Range
| Model Series | Power (kW) | Max Head (m) | Max Flow (m³/h) |
|---|---|---|---|
| G100QJ30-25/1-3600W | 3.6 | 35 | 50 |
| G100QJ30-83/3-11000W | 11 | 98 | 50 |
| G130QJ30-115/7-16000W | 15 | 158 | 50 |
| G130QJ30-220/13-30000W | 30 | 284 | 50 |
Environmental & Durability
Sustainability & Durability
- Zero industrial oil - no water source pollution
- Lifespan increased by at least 60% vs traditional pumps
- High power density with reduced impeller stages
- Lightweight and compact construction
