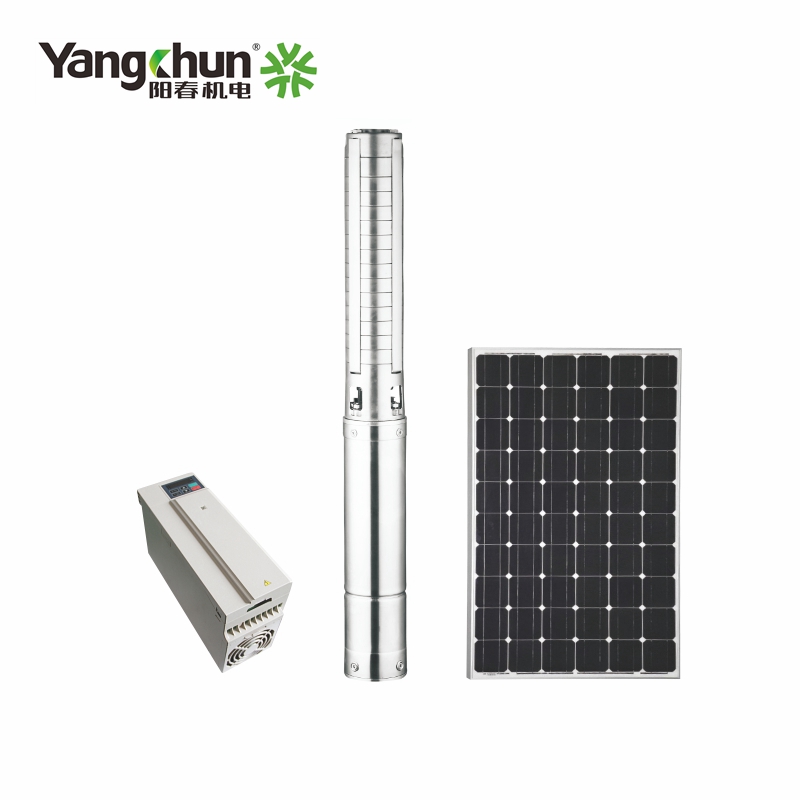

4" 50T/h High Rotation Speed Solar Water Pump
This 4" solar water pump is designed for high-volume water transfer, boasting a capacity of 50 tons per hour. It features a high rotation speed motor optimized for solar power input, ensuring efficient operation and reduced energy consumption.
Technical Specifications
Overview
High-Efficiency Intelligent Solar Pumping Solution
This 4-inch high-rotation speed solar pump is designed for high-volume water transfer, delivering up to 50m³/h. Utilizing a permanent magnet synchronous motor and all-stainless steel multistage impellers, it achieves speeds up to 5200 RPM for superior performance in deep well applications. Its intelligent control system supports both AC and DC inputs, offering a sustainable and energy-efficient solution for agricultural irrigation and industrial water supply.
Performance Highlights
Key Performance Metrics
5,200 RPM
Max Rotation Speed
50 m³/h
Max Flow Rate
8 %
Efficiency Gain vs Conventional

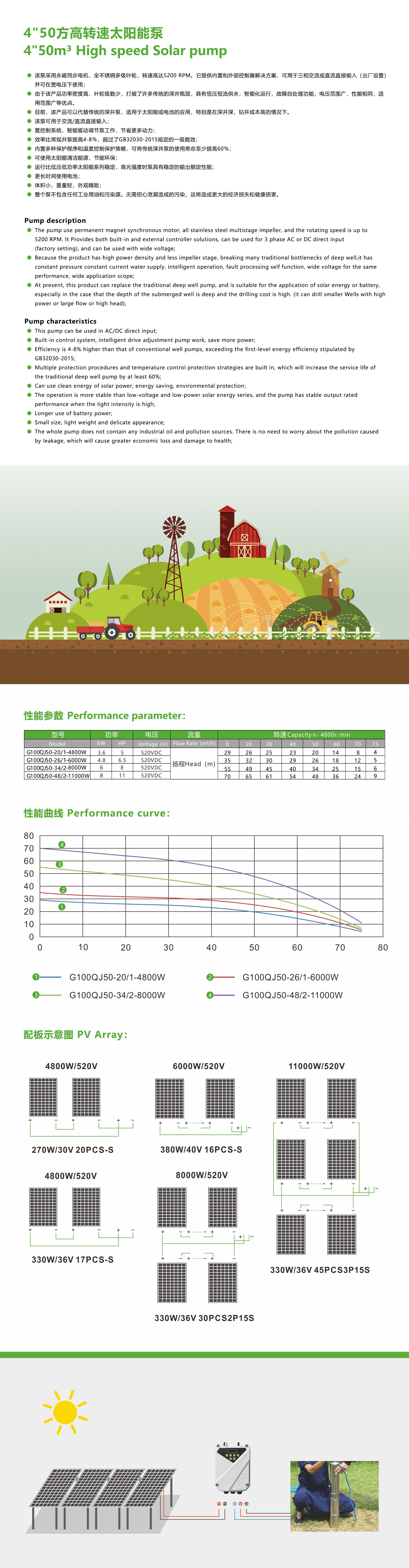

Technical Specifications
Model Performance Data
| Model | Power (kW) | Voltage (VDC) | Max Head (m) |
|---|---|---|---|
| G100QJ50-20/1-4800W | 3.6 | 520 | 29 |
| G100QJ50-26/1-6000W | 4.8 | 520 | 35 |
| G100QJ50-34/2-8000W | 6 | 520 | 55 |
| G100QJ50-48/2-11000W | 8 | 520 | 70 |
- Motor Technology
- Permanent magnet synchronous motor
- Impeller Material
- All stainless steel multistage impeller
- Input Compatibility
- 3-Phase ACDC Direct InputSolar EnergyBattery Power
Intelligent Features
Smart Management Features
- Constant pressure and constant current water supply
- Intelligent drive adjustment for power saving
- Built-in fault self-processing functions
- Temperature control protection strategies
- Wide voltage operation range
Environmental & Safety
Environmental Standards
Oil-Free DesignPollution FreeGB32030-2015 Level 1 EfficiencyClean Energy
- Service Life Extension
- 60 %
Installation & Application
Recommended Applications
- Deep well water extraction
- Agricultural irrigation
- Livestock watering
- Industrial water supply
- Remote areas with high drilling costs
