Technical Specifications
Overview

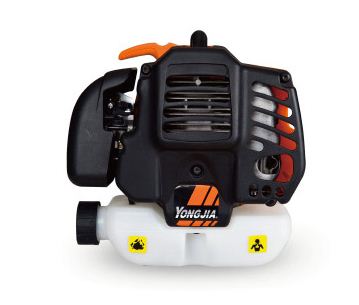

Compact Performance Engine
This 30cc gasoline engine is a robust and efficient power source designed for small power equipment and machinery. Featuring a reliable 2-stroke, air-cooled design, it delivers a consistent 0.8 kW of power output. With its lightweight construction and compact dimensions, it is an ideal solution for portable tools requiring dependable, high-performance operation.
Performance Metrics
Standard Power
0.8 kW
Power Output
7,500 r/min
Rated Speed
Technical Specifications
Engine Configuration
| Parameter | Value |
|---|---|
| Displacement | 30cc |
| Cylinder Diameter | 37 mm |
| Engine Type | Single Cylinder, 2-Stroke, Air-Cooled |
| Carburetor Type | Diaphragm |
| Ignition System | No-touch (Electronic) |
Fuel & Operation
- Fuel Type: Gasoline
- Fuel Tank Capacity: 0.5 L
- Mixed Fuel Ratio: 40:1
- Starting System: Recoil Starter
Physical Attributes
Physical Dimensions & Weight
- Engine Weight: 4 kg
- Packing Measurement: 255 x 250 x 225 mm
- Design Features
- Air-CooledCompact2-StrokePortable
