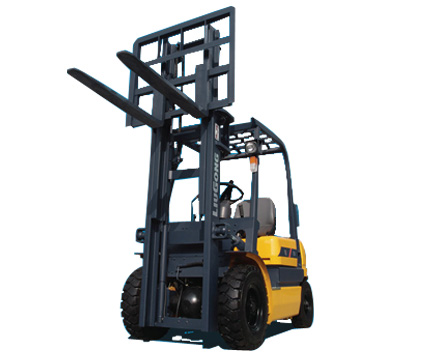

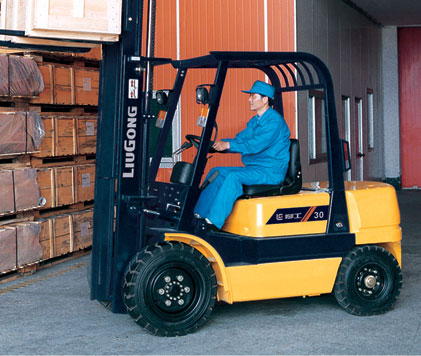

3000kg Diesel Forklift Truck
This diesel forklift truck features a streamlined design and low center of gravity. It is easy to operate and maintain, with a powerful engine and safe, reliable performance.
Technical Specifications
Overview
High-Performance Diesel Forklift
This 3000kg capacity counterbalanced diesel forklift is engineered for reliability and efficiency in demanding industrial environments. Featuring a streamlined design, it offers a low center of gravity for enhanced stability during heavy lifting operations. The unit is built for ease of maintenance and operator safety, making it a dependable solution for warehousing and material handling tasks.
Performance Metrics
Key Performance Metrics
3,000 kg
Rated Capacity
37 kw
Rated Power
3,000 mm
Max Lifting Height
15 km/h
Max Travel Speed
Technical Specifications
Lifting Specifications
| Feature | Value |
|---|---|
| Rated capacity | 3000kg |
| Max. lifting height | 3000mm |
| Fork free lift height | 110mm |
| Max. lifting speed (loaded) | 430mm/s |
| Tilt angle (fwd/bwd) | 6°/12° |
Operational Data
- Service weight: 4360kg
- Transmissions type: Hydraulic
- Turning radius: 2400mm
Chassis and Tires
Track Width
| Position | Width |
|---|---|
| Front | 1000mm |
| Rear | 980mm |
Tire Specifications
| Position | Specification |
|---|---|
| Front | 28*9-15-14PR |
| Rear | 6.50-10-10PR |
