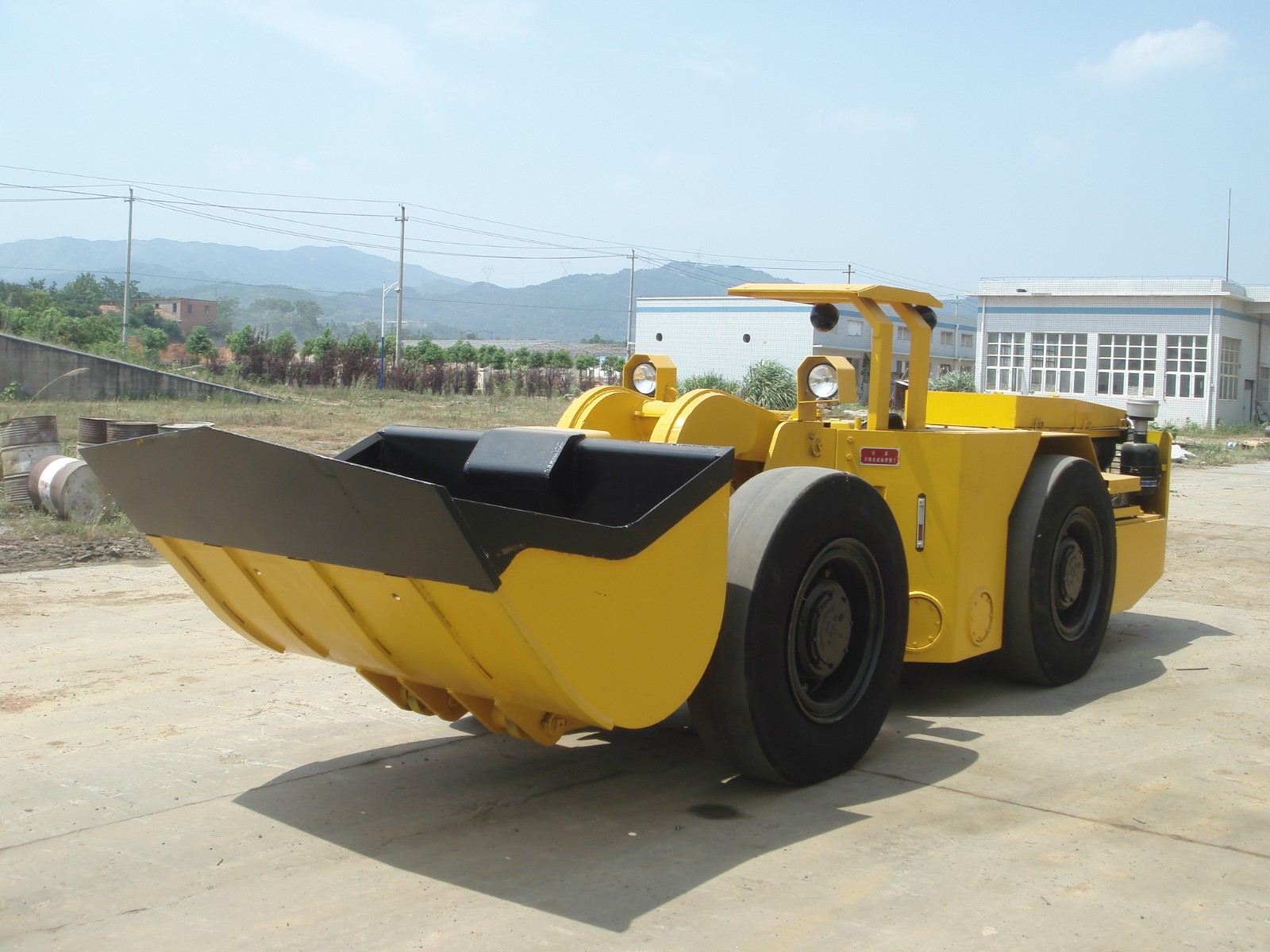

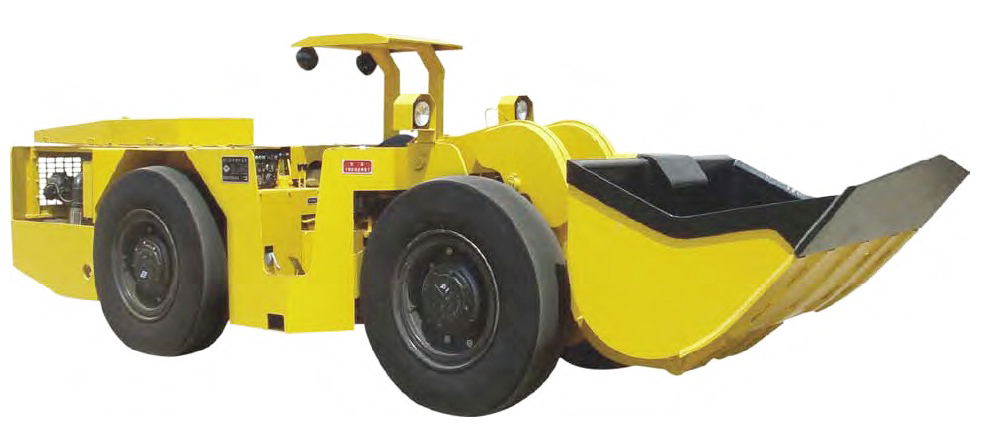

3-Ton Underground Wheel Loader
This underground wheel loader has a 3-ton loading capacity. Its compact size and articulated steering allow for excellent maneuverability.
Technical Specifications
Product Overview
Built for Underground Excellence
The 3-Ton Underground Wheel Loader is engineered for high-performance material handling in demanding tunneling environments. Featuring a robust diesel drive and advanced hydraulic systems from globally recognized manufacturers, this machine offers exceptional reliability and maneuverability in tunnels as narrow as 2.4m by 2.4m. It is a proven solution for operators looking to maximize productivity through high breakout forces and efficient, wear-resistant bucket design.
Performance Metrics
Operational Capacity
3,000 kg
Rated Loading Capacity
1.5 m3
Bucket Volume
80 kN
Max Shovel Force
81 kN
Max Traction Force
Engine and Powertrain
Technical Configuration
| Component | Specification |
|---|---|
| Engine Model | Deutz F6L914 |
| Rated Power | 84 kW @ 2300 rpm |
| Transmission | Dana R20000 |
| Torque Converter | Dana C270 |
Dimensions and Mobility
Dimensions
- Length: 6820mm
- Width: 1688mm
- Height: 1995mm
- Dumping Height: 1400mm
- Inner Turning Radius: 2890mm
- Outer Turning Radius: 5000mm
Compliance and Quality
- Certifications
- CEQS9001CA
