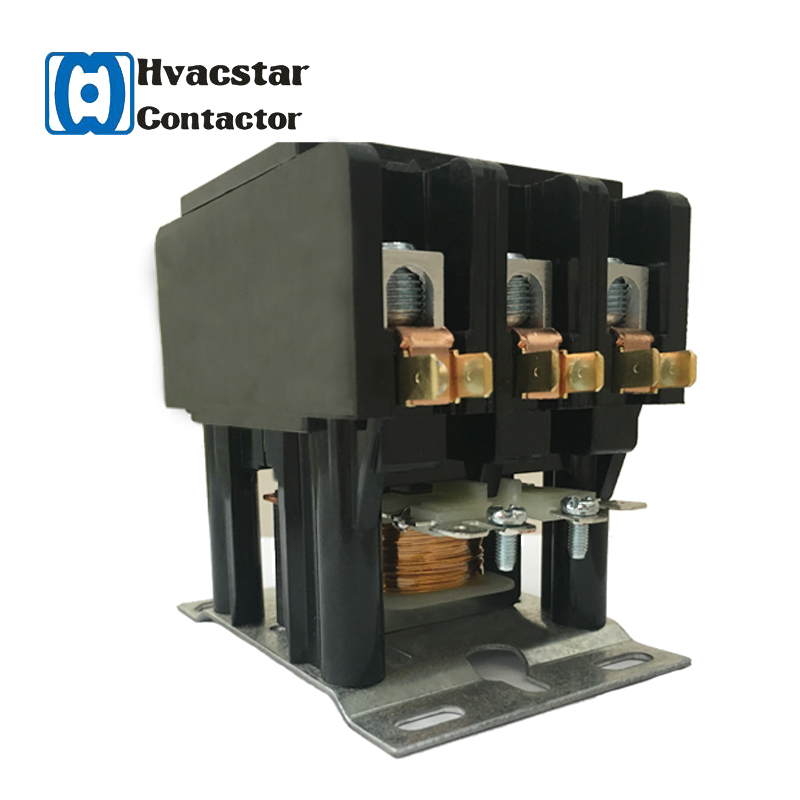

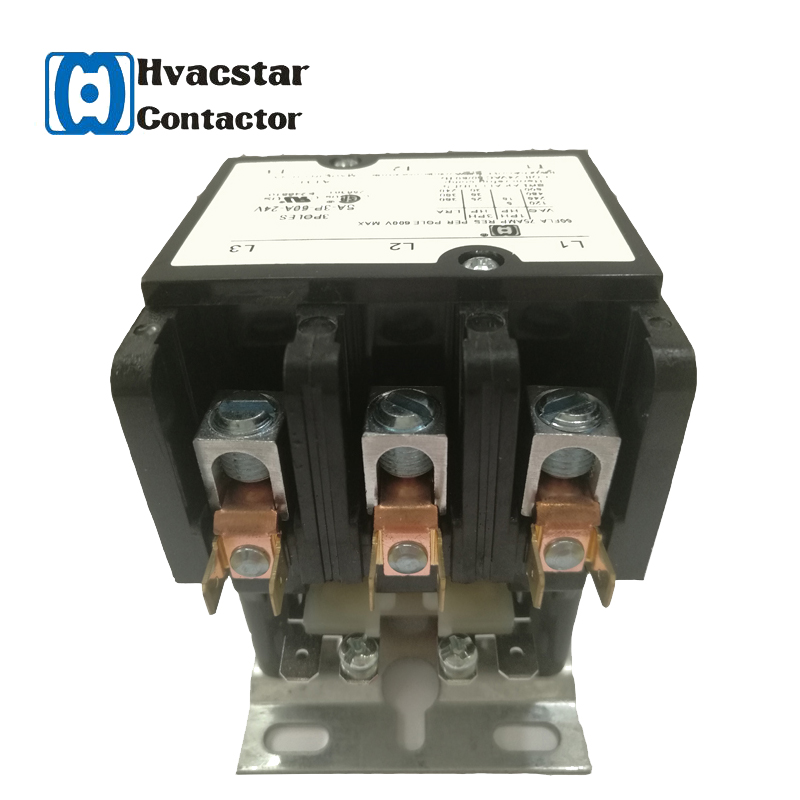

3-Pole Electronic AC Contactor for HVAC
This 3-pole electronic AC contactor is designed for HVAC and refrigeration applications. It features a robust magnetic design for reliable switching in air conditioning and refrigeration systems.
Technical Specifications
Product Overview
Professional HVAC Contactor
This 3-pole definite purpose electronic AC contactor is engineered specifically for reliable operation in air conditioning and refrigeration systems. Designed to handle high-demand switching, it ensures safety and efficiency across various HVAC applications. With robust construction and CUL certification, it offers a dependable solution for professional installations requiring precise electrical control.
Electrical Ratings
- Number of Poles
- 3
- Full Load Amps (FLA)
- 60 A
- Resistive Amps per Pole
- 75 A
- Maximum Voltage
- 600 V
- Coil Voltage
- 24VAC 50/60 Hz
Performance Metrics
Horsepower (HP) Ratings
| Voltage (VAC) | 1-Phase HP | 3-Phase HP |
|---|---|---|
| 120 | 5 | 0 |
| 240 | 10 | 25 |
| 480 | 0 | 30 |
| 600 | 0 | 30 |
Installation & Compliance
Terminal Torque Requirements
- CU 75°C Screws: 22 in-lbs
- Lugs: 50 in-lbs
- Certifications
- CULULCSA
Service & Support
Service Terms
- OEM/ODM available
- 100% self-inspection and testing before packing
- Quality guarantee: replacement for defective items
