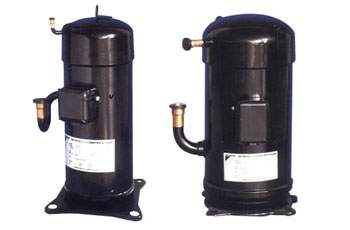

3-5HP Scroll Compressor 380V
This scroll compressor is energy efficient and reliable. It is suitable for air-conditioning and commercial refrigeration applications.
Technical Specifications
Product Overview
High-Efficiency Scroll Compressor Series
This series of scroll compressors offers reliable performance for commercial and industrial air conditioning and refrigeration systems. Designed for 380V power environments, these units deliver consistent capacity ranging from 3HP to 5HP. With quiet operation and robust engineering, they are optimized for demanding cooling applications.
Technical Specifications
Performance & Dimensions
| Model | HP | Capacity (W) | Input (kW) | Weight (kg) |
|---|---|---|---|---|
| JT90GBBY1L | 3 | 8,490 | 2.65 | 29 |
| JT95GBBY1L | 3 | 9,160 | 2.86 | 29 |
| JT125GBBY1L | 4 | 11,800 | 3.69 | 31.6 |
| JT160GBBY1L | 5 | 14,700 | 4.6 | 32.2 |
| JT170GBBY1L | 5 | 15,700 | 4.91 | 32.2 |
Electrical Requirements
380 V
Voltage
50 Hz
Frequency
3.2 W/W
COP
Tube Connections
- Suction Tube: φ 22.1 mm
- Discharge Tube: φ 16 mm
- Operating Noise
- 61 dB(A)
