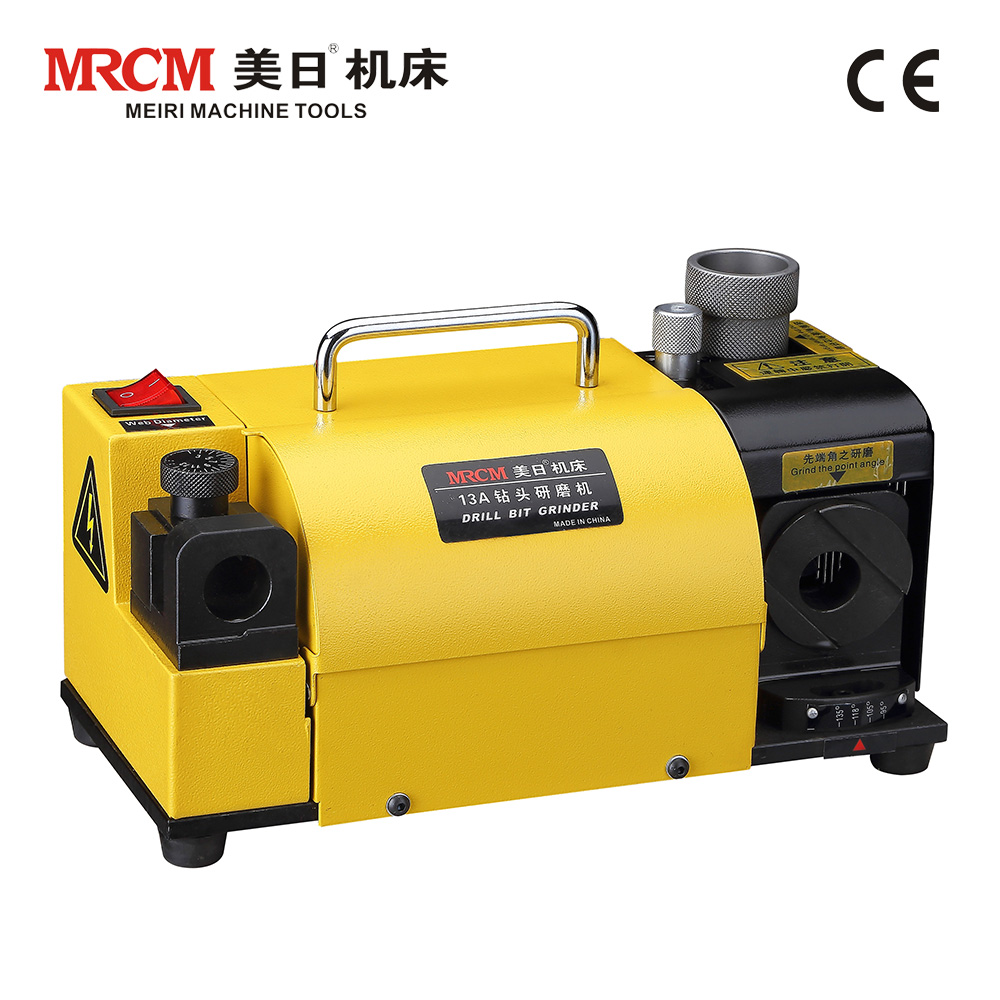

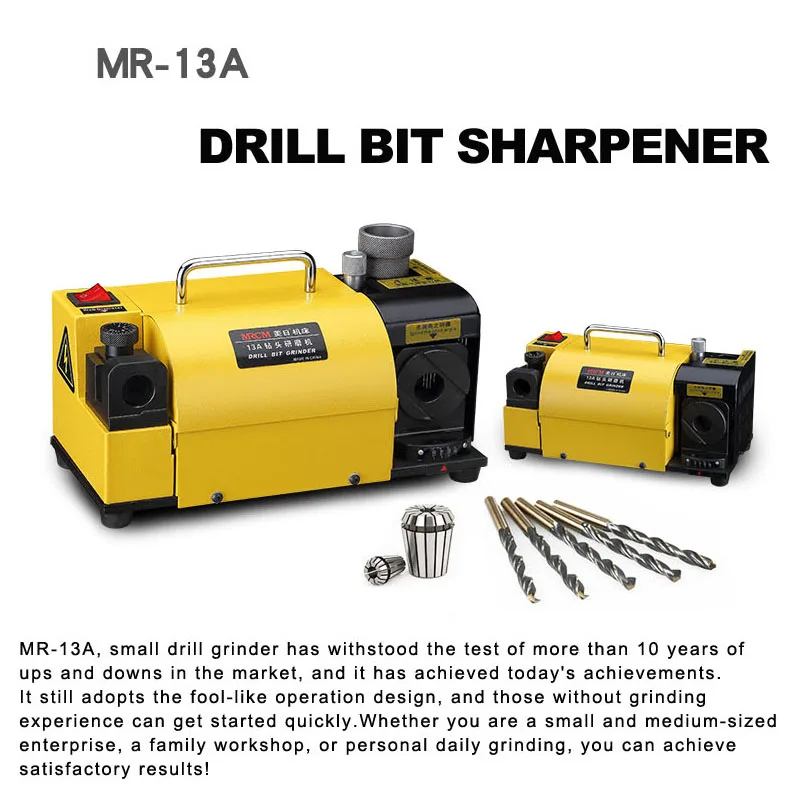

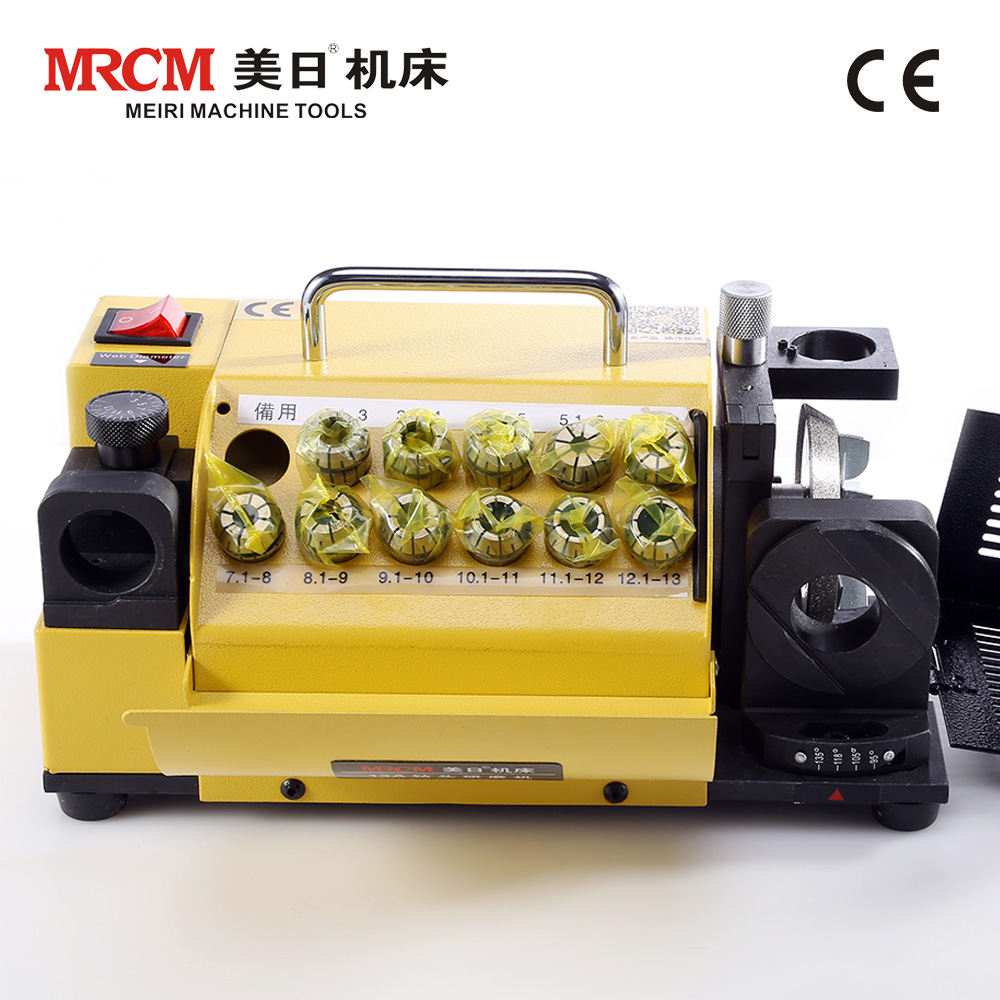

3-13mm Drill Bit Sharpener Grinding Machine
This drill bit sharpener offers accurate and rapid grinding with easy operation. Its design reduces costs and improves usage with a diamond grinding wheel, ensuring an accurate angle and long service life.
Technical Specifications
Overview
Precision Drill Bit Sharpening
This drill bit grinding machine is engineered for accurate and rapid sharpening of twist drill bits ranging from 3mm to 13mm. Designed for efficiency, it allows operators to achieve professional results without requiring specialized grinding skills. The machine features a powerful, electronically controlled DC motor and a durable diamond grinding wheel, ensuring consistent performance and extended tool life for your workshop's drilling equipment.
Technical Specifications
- Grinding Range
- 13 mm
- Point Angle
- 100-135°
- Motor Power
- 120 W
- Operating Speed
- 4400 RPM
- Power Supply
- AC220V
- Weight
- 10 kg
Key Features
Operational Benefits
- Fool-proof operation design suitable for beginners
- Fast sharpening process (approx. 10 seconds)
- Adjustable center point size for material coordination
- Compact and portable design
- Stable frequency DC motor
- Compatible Grinding Wheels
- CBNSDC

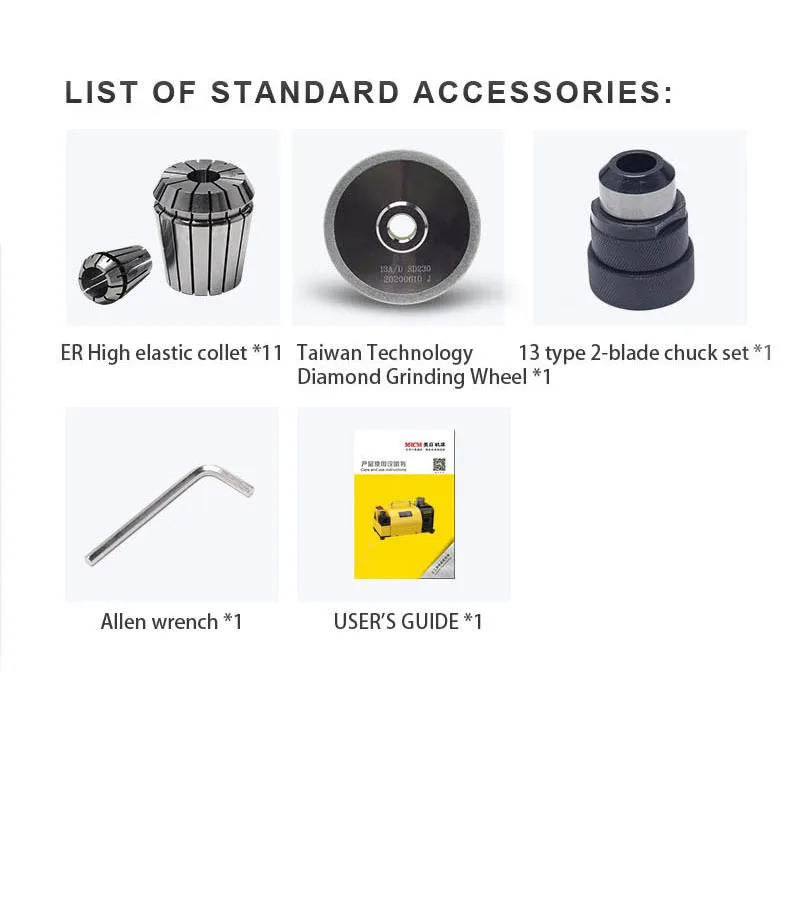

Standard Accessories
Included Accessories
| Item | Quantity/Notes |
|---|---|
| ER High Elastic Collets | 11 pieces |
| Diamond Grinding Wheel | 1 unit |
| 13 Type 2-Blade Chuck Set | 1 set |
| Allen Wrench | Included |
| User's Guide | Included |
