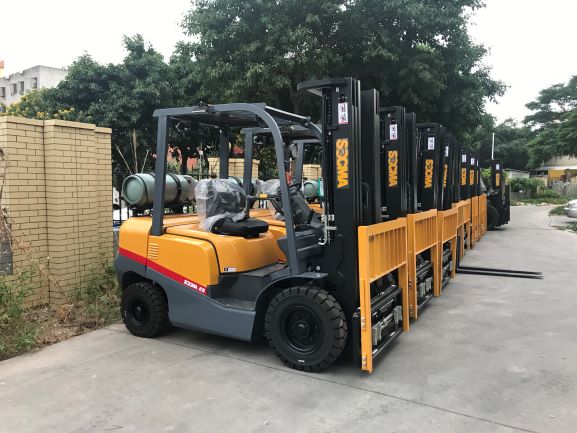

2.5 Ton LPG Forklift Truck
This 2.5 ton forklift is powered by an LPG engine for high efficiency and energy saving. It features an improved uploading system and ergonomic design for comfortable operation.
Technical Specifications
Overview
High-Efficiency 2.5 Ton LPG Forklift
This 2.5 Ton LPG Forklift Truck is designed as a radical innovation to meet the high-efficiency and energy-saving needs of modern industrial managers and drivers. Featuring advanced hydraulic technology and a robust pneumatic tire system, it provides a world-class operational experience with enhanced durability. The ergonomic design focuses on reducing operator fatigue while maintaining high security and operational capacity in demanding warehouse environments.
Core Performance
Key Performance Metrics
2,500 kg
Rated Capacity
3,000 mm
Max Lifting Height
2,240 mm
Turning Radius
17 km/h
Travel Speed (Loaded)
Engine & Transmission
Power System
| Feature | Details |
|---|---|
| Power Unit | LPG / Diesel Compatible |
| Transmission Type | Electronic hydraulic transmission |
| Fuel Tank Capacity | 70 L |
| Battery | 12V / 90Ah |
Operator Comfort & Safety
Ergonomics & Safety
- New suspension system with adjustable seat for fatigue reduction
- Step area 1.5 times larger than standard models with lower step height
- Embedded LCD instrument with neutral start protection
- Double protection type brake lever to prevent misuse
- Broad flat floor with sunken tilt cylinders for increased legroom
- Plastic ceiling protection for safe operation in rainy conditions
- Large double muffler for superior noise reduction
Technical Dimensions
Physical Specifications
| Dimension | Value |
|---|---|
| Overall Length (without fork) | 2605 mm |
| Overall Width | 1150 mm |
| Overhead Guard Height | 2090 mm |
| Fork Size (L×W×T) | 1220×122×40 mm |
| Truck Weight | 3680 kg |
| Load Center | 500 mm |
Operational Speeds
Speed Specifications
| Action | Loaded | Unloaded |
|---|---|---|
| Lifting Speed | 500 mm/s | 550 mm/s |
| Lowering Speed | 480 mm/s | 450 mm/s |
| Travelling Speed | 17 km/h | 19 km/h |
Maintenance & Service
Serviceability
- Removable side cover for easy inspection and simple repairs
- Integrated control box for fuses and relays
- Aluminum heat sink radiator for enhanced cooling effect
- Global spare parts support network
- 12-month or 2000-hour warranty coverage
Certifications
Compliance & Standards
ISO 9001:2015CE CertifiedEN ISO 12100:2010EN ISO 3691-5:2014GB/T 19001-2016
