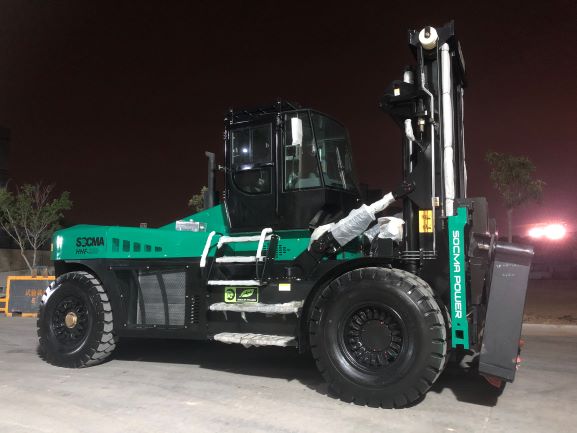

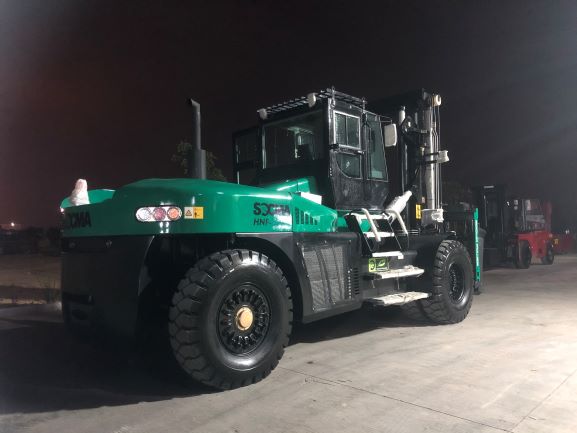

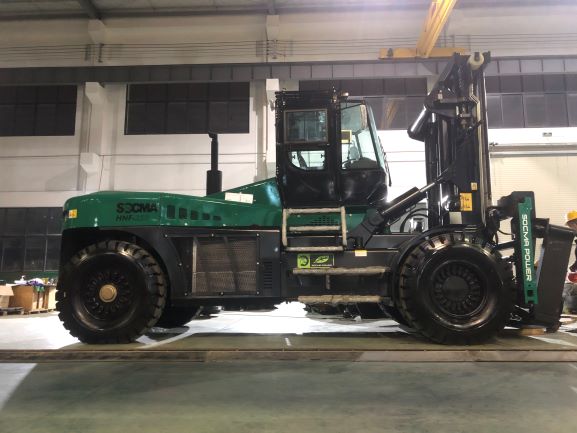

25-Ton Diesel Forklift Truck
This heavy-duty forklift truck has a 25-ton lifting capacity and is powered by a robust diesel engine. Its design incorporates ergonomic features for operator comfort and efficiency.
Technical Specifications
Overview
High-Performance 25-Ton Heavy Duty Forklift

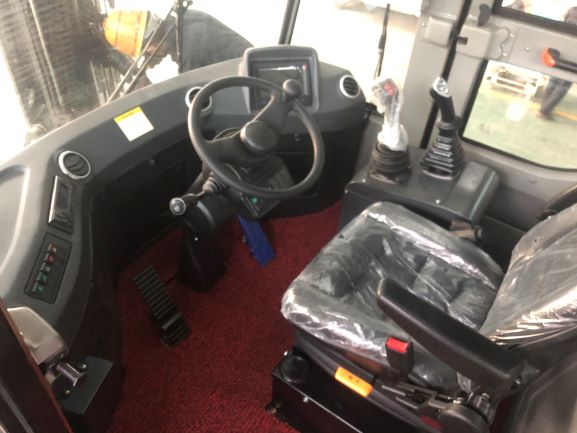

This 25-ton diesel forklift is engineered for the most demanding material handling applications in ports, construction sites, and industrial environments. Featuring a robust chassis and a modern ergonomic design, it combines high lifting capacity with precise hydraulic control for maximum efficiency. The 'new style' configuration focuses on operator comfort and enhanced visibility, ensuring safe and reliable performance during heavy cargo operations.
Key Performance Metrics
Performance Highlights
25 t

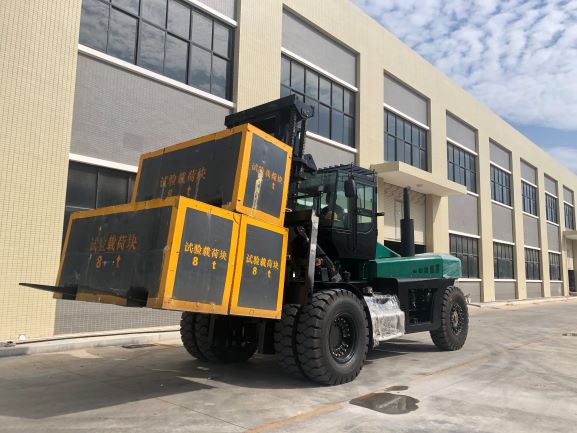

Rated Load
3,500 mm
Lifting Height
35,000 kg
Service Weight
170 kN
Traction
Engine & Powertrain
Engine Specifications
| Feature | Specification |
|---|---|
| Cylinder Count | 6 |
| Option 1 Power | 162KW @ 2000rpm (9.726L) |
| Option 2 Power | 179KW @ 2200rpm (8.3L) |
| Transmission Gears | 2 Front / 1 Rear |
| Brake System | Hydraulic clamp disc |
Dimensions
Physical Dimensions
| Parameter | Value |
|---|---|
| Overall Length (with forks) | 9190 mm |
| Overall Width | 3050 mm |
| Height to Cab | 3510 mm |
| Wheelbase | 4400 mm |
| Fork Dimensions | 2440 x 300 x 110 mm |
| Min. Turning Radius | 6700 mm |
Chassis & Tyres
Chassis & Tyres
- Front Tyre Specs: 14.00-24-28PR
- Rear Tyre Specs: 14.00-24-28PR
- Tyre Quantity (Front/Rear): 4 / 2
- Wheel Tread Front: 2200 mm
- Wheel Tread Rear: 2390 mm
- Ground Clearance (Mast): 300 mm
Operational Performance
Operational Speeds
| Action | With Load | Without Load |
|---|---|---|
| Travel Speed | 25 km/h | 29 km/h |
| Max. Lifting Speed | 260 mm/s | 270 mm/s |
| Max. Lowering Speed | 315 mm/s | 260 mm/s |
| Gradeability | 20% | 21% |
Certifications
Compliance & Quality
ISO 9001:2015CE CertifiedEN ISO 3691-5:2014GB/T 19001-2016
Service & Support
After-Sales Support
- 12-month or 2000-hour comprehensive warranty
- Global spare parts distribution network
- On-site installation and maintenance training
- Technical support and testing data reports provided
