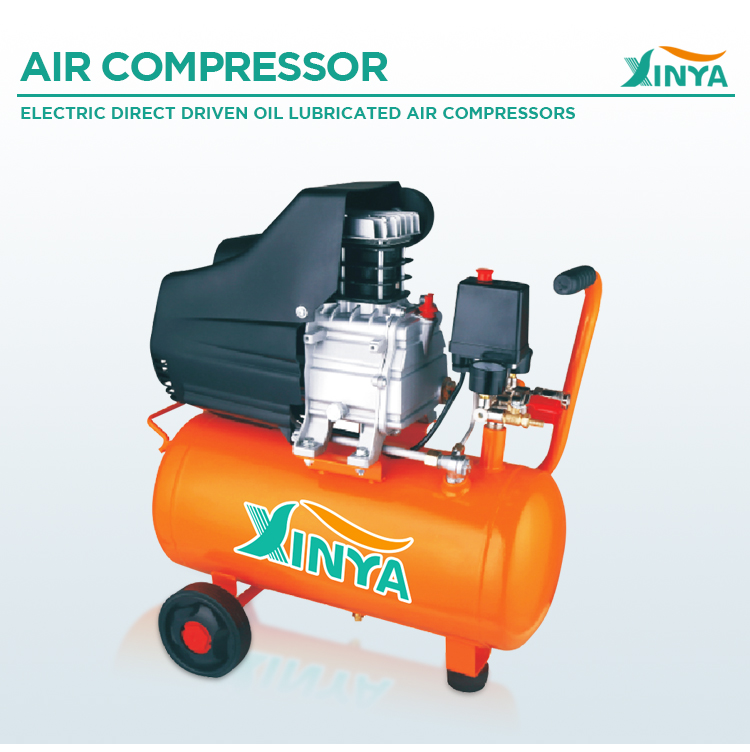

24L Oil Lubricated Direct-Drive Air Compressor
This 24L air compressor utilizes an oil lubrication system to ensure smooth operation and prolong its service life. Its direct-drive mechanism delivers efficient power transfer for a variety of pneumatic applications.
Technical Specifications
Product Overview
Compact and Reliable Performance
This 24L oil-lubricated air compressor is designed for both professional and DIY pneumatic applications. Featuring a durable cast iron cylinder and an aluminum crankcase for efficient heat dissipation, it offers long-lasting performance for tasks like inflating tires or powering air tools. Its direct-drive motor ensures efficient power transfer, while the integrated thermal protection system adds a layer of safety during heavy usage.
Technical Specifications
Performance Metrics
| Feature | Specification |
|---|---|
| Model | XYBM24 |
| Tank Capacity | 24L |
| Motor Power | 1.2kW (1.5HP) |
| Max Air Flow | 188L/min (6.6cfm) |
| Pressure | 8bar (115psi) |
| Speed | 2850r.p.m |
| Cylinder Bore | 47mm |
Key Performance Indicators
1.2 kW
Motor Power
188 L/min
Max Air Flow
8 bar
Max Pressure
Product Features
Advanced Features
- Induction motor with thermal protection system
- Aluminum cylinder head and crankcase for superior heat dissipation
- Durable cast iron cylinder
- High alloy piston rings for high-load capacity
- Easy-open drain valve for simple maintenance
- Integrated pressure regulator and pressure gauge
- Quick connector for rapid tool switching
- Ergonomic carry handle for portability
Certifications
- Compliance and Standards
- CEISO 9001RoHSGSTUV
