240mm² Aluminum Copper Cable Terminal Block
This universal terminal block is designed for connecting aluminum and copper cables. It is suitable for conductors with a cross-section area up to 240 mm2.
Technical Specifications
Overview
TR Series Universal Terminal Block
The TR series Al/Cu universal terminal block is engineered for high-performance connections in power transmission and distribution systems. Designed to accommodate both aluminum and copper conductors with cross-sections up to 240 mm², it ensures secure and reliable electrical conductivity. Its compact design features hexagonal screw tightening for a robust hold, housed in high-quality polyamide material rated to UL 94 standards.
Technical Specifications
Nominal Current Range
145 A
Min Current
425 A
Max Current
- Conductor Compatibility
- Aluminum 6-240 mm², Copper 2.5-240 mm²
- Nominal Insulation Voltage
- 1000 V
Construction
Mounting Options
DIN RailScrew Mounting
- Material Composition
- UL 94 V-0 Polyamide HousingTinned Aluminum BodySteel Screws
Compliance
- Standards & Conformity
- CERoHSEN 60947-7-1EN 61238-1

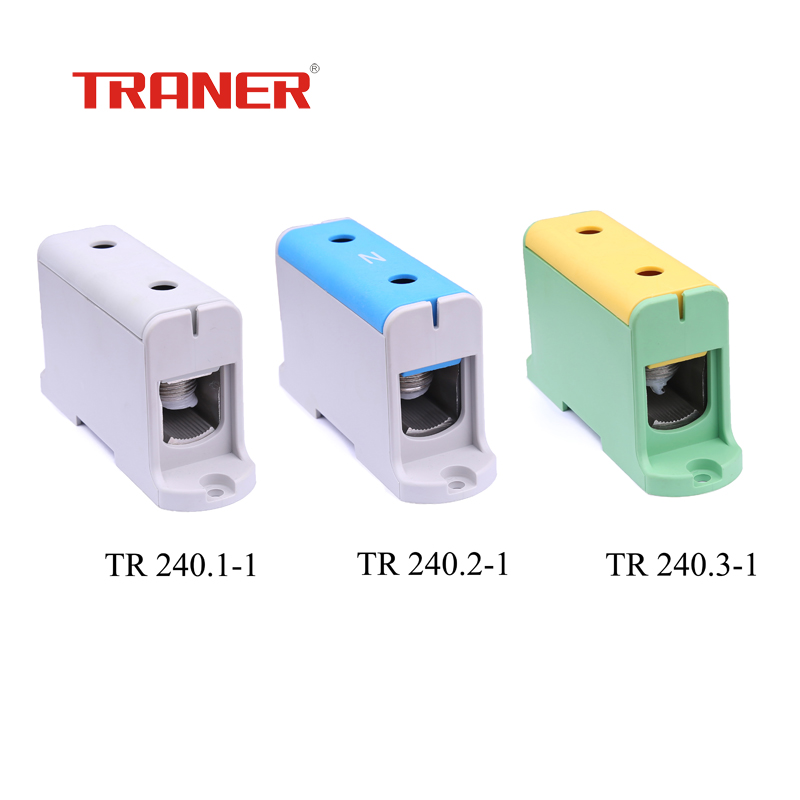

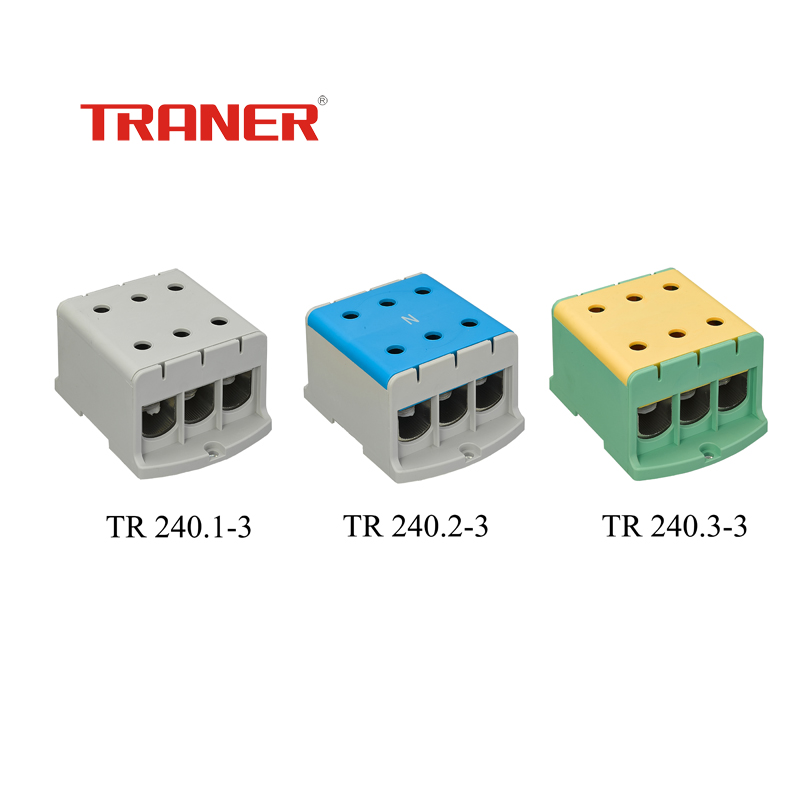

Product Matrix
Detailed Technical Matrix
| Product Code | Color | Conductor Capacity | Weight |
|---|---|---|---|
| TR 240.1-1 | Grey | 1*Al/Cu 35-240 mm² | 300g |
| TR 240.1-2 | Grey | 2*Al/Cu 35-240 mm² | 543g |
| TR 240.1-3 | Grey | 3*Al/Cu 35-240 mm² | 787g |
