Technical Specifications
Overview
Designed for Extreme Conditions

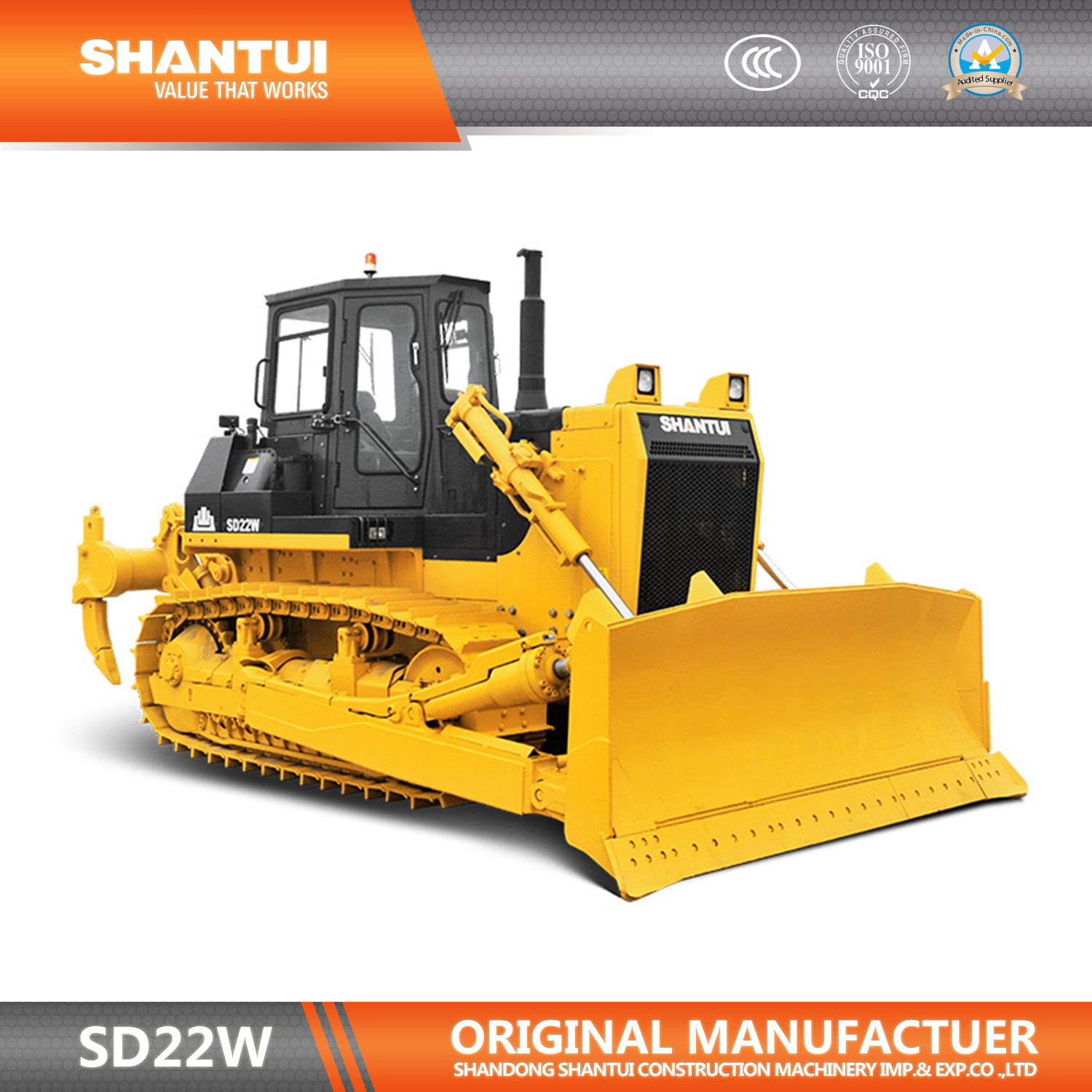

The SD22W rock bulldozer is engineered specifically to excel in challenging rock-working environments. It combines high durability with advanced technological performance to ensure reliability during heavy-load operations. With optimized fuel efficiency and simplified maintenance requirements, it provides a cost-effective solution for large-scale mining and earthmoving projects.
Performance
Net Power
220 HP
Net Horsepower
162 kW
Net Power
- Operating Weight
- 23.44 t
- Gradeability
- 30 degrees
Engine
- Available Engine Models
- Cummins NT855-C280S10Weichai WD12G240E26
Blade Specs
Blade Specifications
| Type | Dimensions (mm) | Capacity (m3) |
|---|---|---|
| Straight tilt | 3725*1315 | 6.4 |
| Angle blade | 4365*1055 | 4.7 |
Undercarriage
Track Configuration
- Track gauge: 2000 mm
- Track shoe width: 560 mm
- Track rollers per side: 6
- Carrier rollers per side: 2
- Track shoes per side: 38
Applications
- Ideal Working Conditions
- MiningCoarse sandsStonesDecomposed rocksHeavy-load construction
