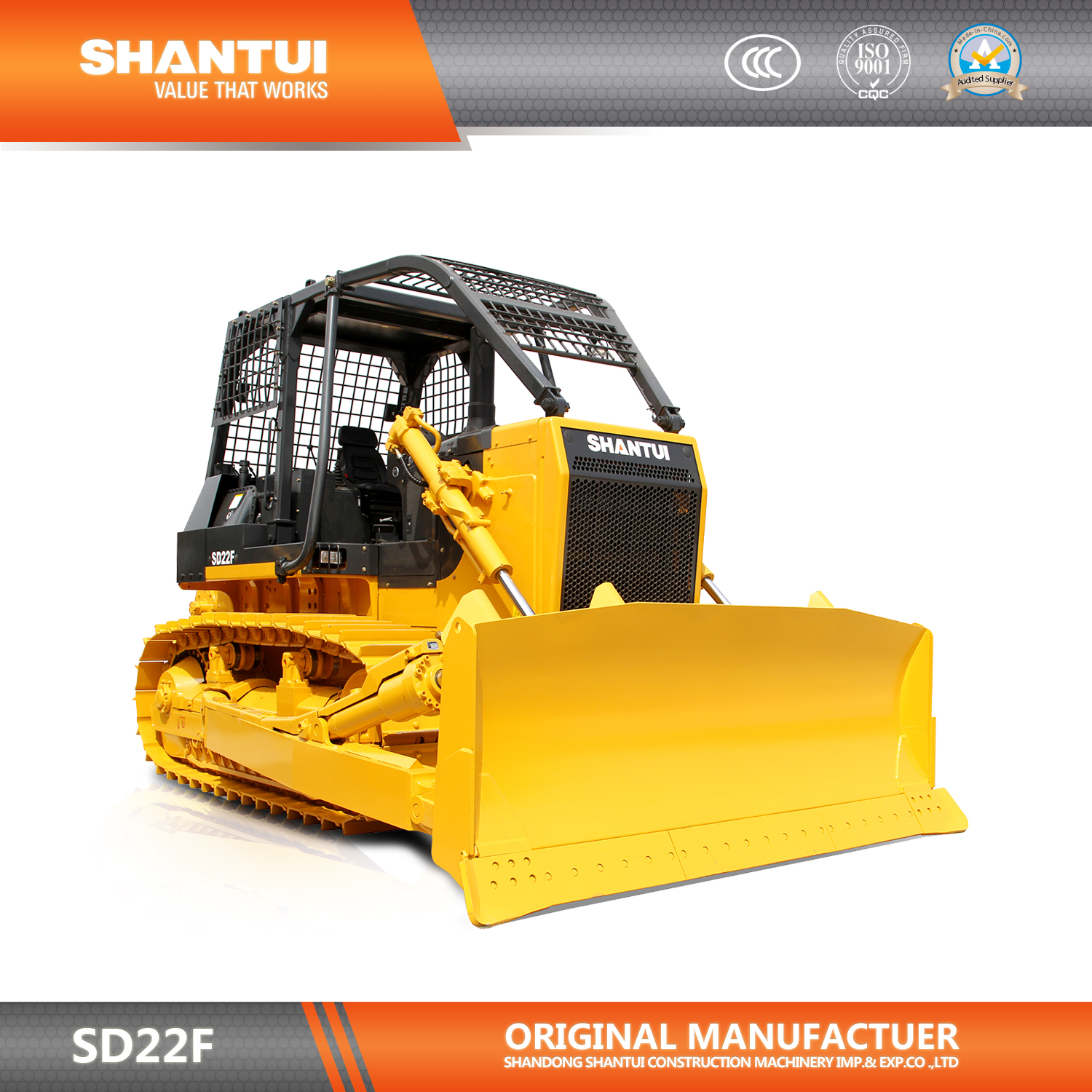

220 HP Lumbering Bulldozer
The SD22F lumbering bulldozer is designed for forestry applications and features a specialized ROPS cab. It is equipped with wide tracks and a mechanical winch for enhanced trafficability and self-rescue capabilities in rainforests and forest farms.
Technical Specifications
Overview
Designed for Forestry Excellence
The 220 HP Lumbering Bulldozer is specifically engineered for demanding forestry environments and challenging terrain. Equipped with a specialized lumbering ROPS cab and wide 610mm tracks, it provides superior trafficability and self-rescue capabilities for skidding and traction transport. This machine is highly versatile, featuring a standard lumbering blade that efficiently clears bramble and obstacles to maintain progress in rainforests and forest farms.
Performance
Rated Horsepower
162 kW
Rated Power
- Engine Model
- Chongfa NT855-C280S10
- Gradeability
- 30 °
Operations
- Dozing Capacity
- 6.4 m3
- Blade Height
- 1315 mm
- Ripper Type
- 3-shank ripper
- Max. Digging Depth
- 666 mm
Undercarriage
Roller Configuration
- 2 carrier rollers per side
- 6 track rollers per side
- Track Shoe Width
- 610 mm
- Ground Pressure
- 0.077 Mpa
Dimensions
- Overall Dimensions
- 6790 x 3725 x 3480 mm
- Min. Turning Radius
- 3.3 m
Features
- Specialized Features
- ROPS CabMechanical WinchSelf-rescue FunctionSingle-grouser Track
