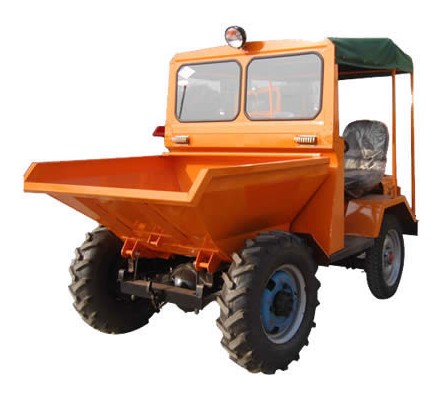

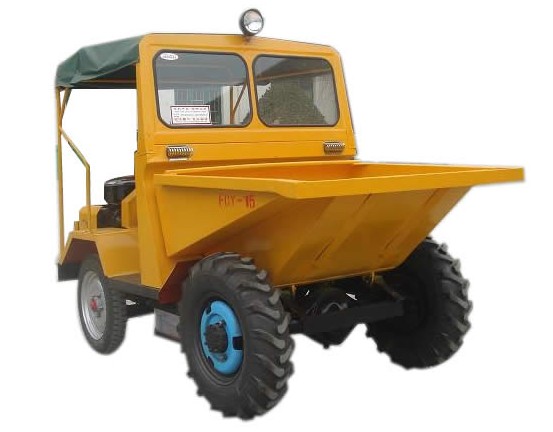

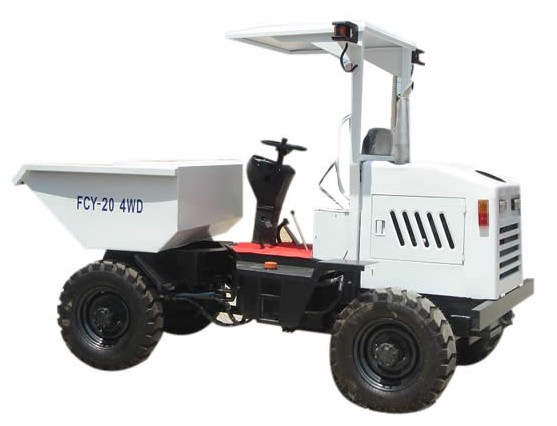

2.0T Articulated Site Dumper with Hydraulic Tipping
This 2.0T site dumper is designed with a self-loading mechanism and a 1.0 CBM bucket capacity. Its hydraulic tipping system and articulated frame enhance maneuverability on diverse terrains.
Technical Specifications
Overview
High-Performance 2.0T Site Dumper
This 2.0T articulated site dumper is designed for efficient bulk material handling in demanding construction and industrial environments. Featuring a powerful 20KW engine and 1.0m3 bucket capacity, it ensures reliable transport of soil, gravel, and aggregates. Its articulated design and 4000mm turning radius provide excellent maneuverability in confined spaces, while high-traction tires ensure stable performance across various terrains.
Performance Metrics
Performance Highlights
2,000 KG
Rated Loading Weight
1 m3
Bucket Capacity
20 KW
Rated Power
21 deg
Gradeability
Travel Speed Configuration
| Gear | Speed |
|---|---|
| Forward Gear I | 6.5 km/h |
| Forward Gear II | 11 km/h |
| Forward Gear III | 24 km/h |
| Backward Gear | 4.5 km/h |
Technical Specifications
Engine Details
- Model: KM385
- Type: 3-cylinder, 4-stroke
- Cooling System: Water cooled
- Power Output: 2200 RPM
Dimensions & Maneuverability
- Overall Dimensions: 3017 x 1900 x 2465 mm
- Wheelbase: 1280 mm
- Thread: 1500 mm
- Minimum Turning Radius: 4000 mm
Logistics
Shipping Information
4 Units per 40ft container
