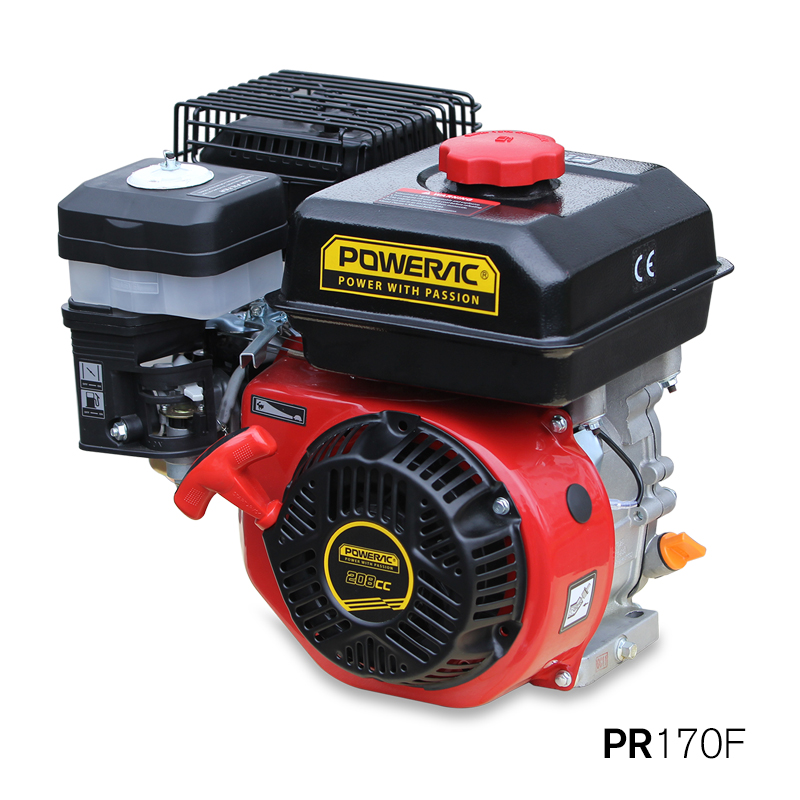

208cc 4-Stroke OHV Engine
This single-cylinder, 4-stroke engine with OHV configuration is designed for diverse applications. It features a forced air cooling system, transistorized magneto ignition, and a recoil starter.
Technical Specifications
Overview
High-Performance 4-Stroke Engine
This 4-stroke OHV engine is engineered for versatility and reliability in demanding environments. Featuring a robust displacement and optimized compression ratio, it delivers consistent power for a variety of small machinery applications. Designed for efficiency and ease of maintenance, this unit is an ideal power solution for generators, water pumps, and other industrial or commercial equipment.
Performance
Maximum Output
7 hp
Max Output
3,600 rpm
at
Maximum Torque
13.5 N.m
Max Torque
2,500 rpm
at
Technical Specifications
- Displacement
- 212 cc
- Bore x Stroke
- 70x55 mm
- Compression Ratio
- 8.5:1
Capacity & Dimensions
Tank Capacities
| Type | Capacity |
|---|---|
| Fuel Tank | 3.6 L |
| Oil Capacity | 0.6 L |
- Dimensions (LxWxH)
- 400x345x380 mm
- Weight (G.W/N.W)
- 16/15 kg
Logistics
Container Loading
- 20GP: 576 units
- 40HQ: 1358 units
