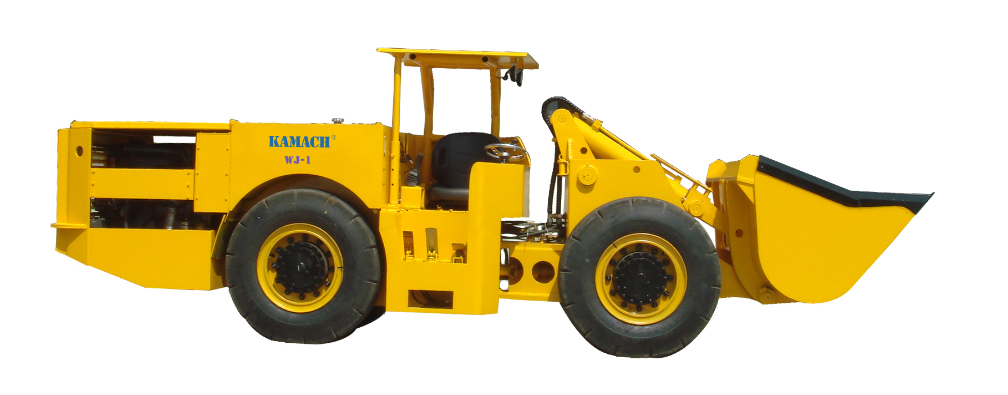

2-Ton Underground Wheel Loader
This wheel loader is suitable for small tunnel sections. It has a 2-ton loading capacity and is equipped with a diesel engine and a variable pump.
Technical Specifications
Product Overview
Performance-Driven Mining Solution
The 2-Ton Underground Wheel Loader is a compact, diesel-powered machine specifically engineered for high-efficiency material handling in confined tunnel environments. It features premium brand-name hydraulic and powertrain components, ensuring maximum reliability in harsh mining conditions. With articulated steering and an ergonomic control layout, this loader offers superior maneuverability and operational comfort for demanding underground applications.
Performance
Rated Payload
2 metric ton
Rated Payload
1 m3
Loading Volume
Operational Specs
| Metric | Value |
|---|---|
| Max Breakout Force | 42 kN |
| Max Traction Force | 50 kN |
| Max Dumping Height | 1000 mm |
| Travelling Speed | 0-12 km/h |
Technical Specs
Powertrain
- Deutz Engine (D914L04)
- Hydrostatic Variable Pump (Sauer-Danfoss or Eaton)
- PC15B Fenyi Drive Axles
- Certifications
- CEQS9001
Dimensions
- Transport Dimensions
- 5560mm x 1320mm x 1900mm
