Technical Specifications
Overview
Versatile Tracked Transporter

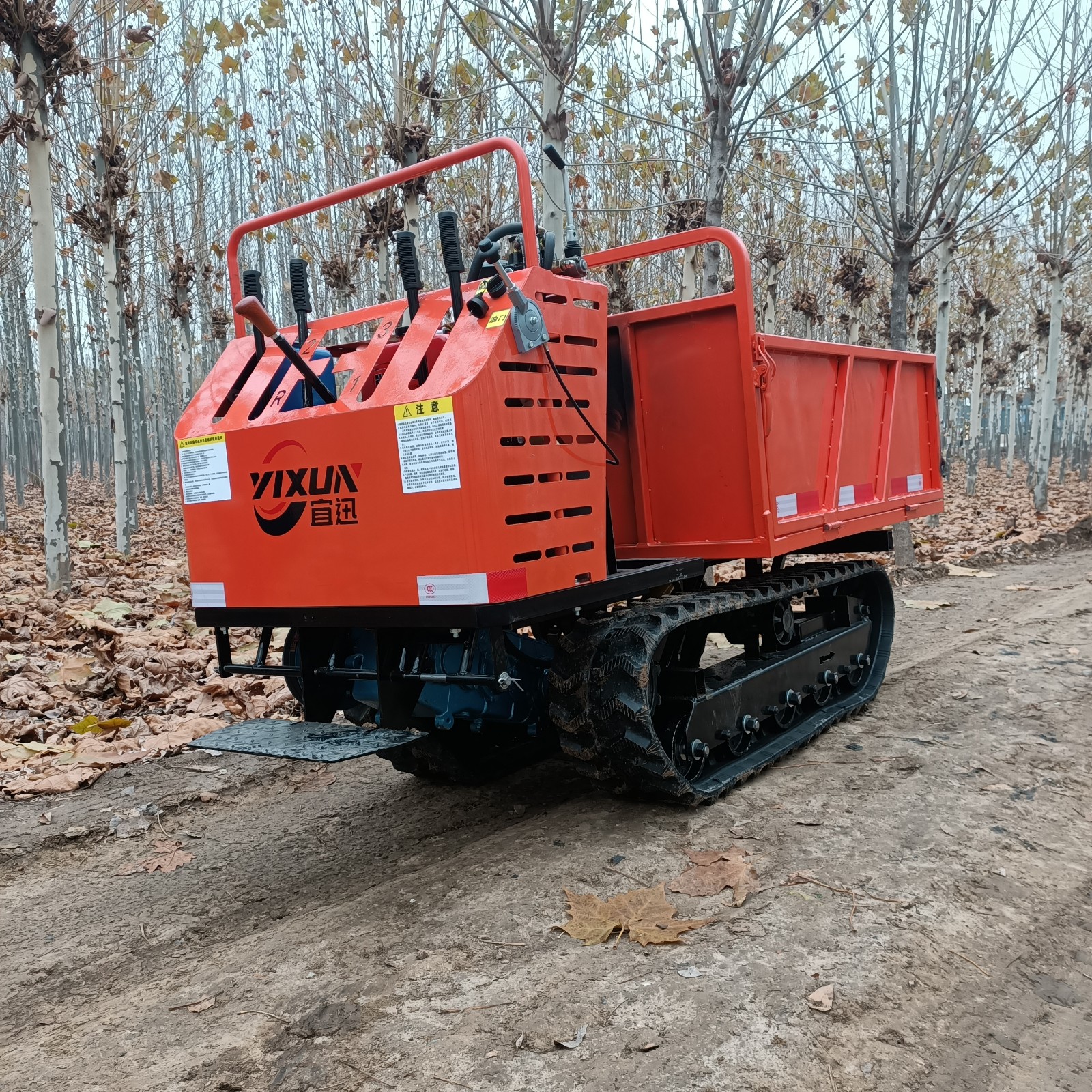

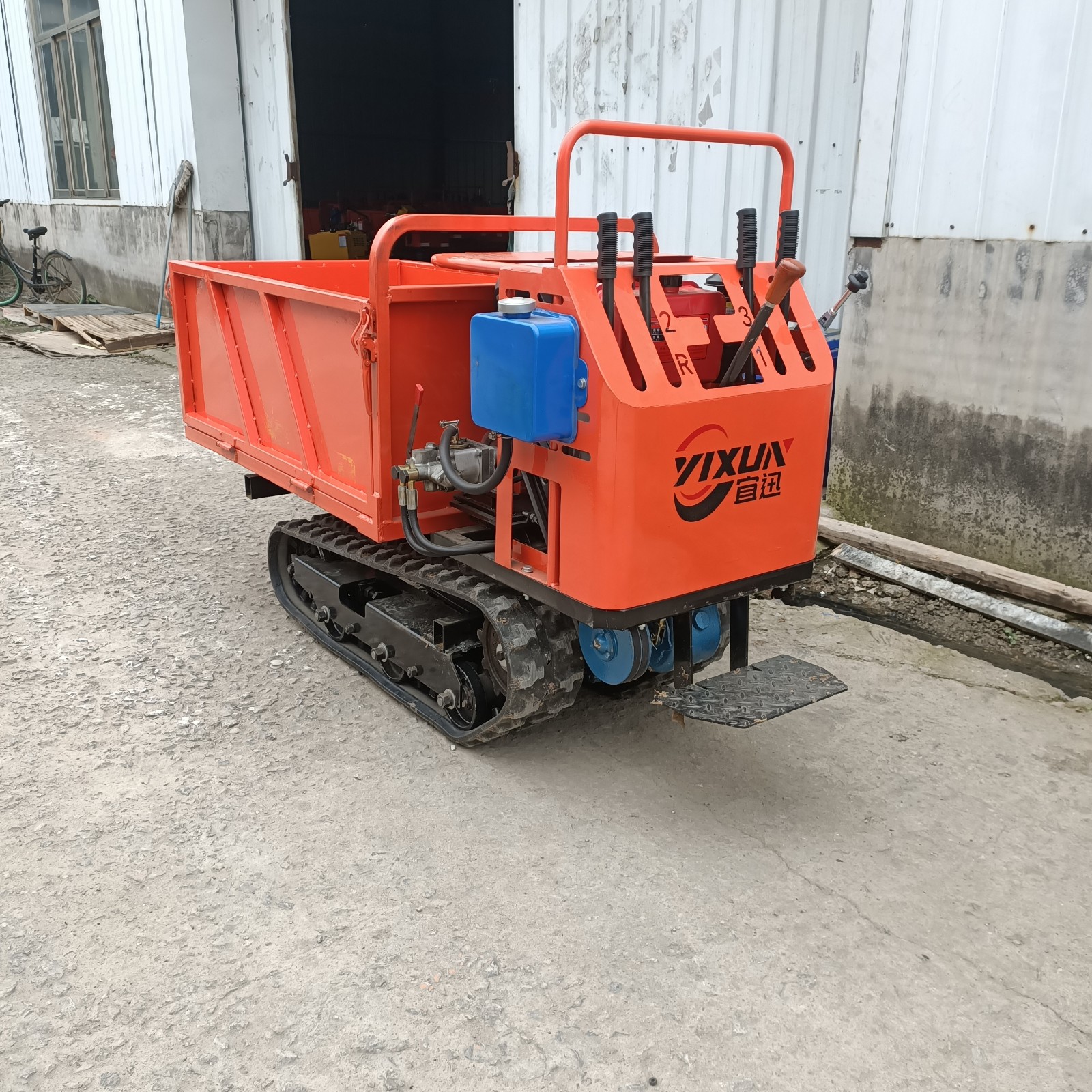

This 2-ton rubber track dump truck is designed for high-efficiency material transport across diverse and challenging terrains. Featuring a durable, thickened steel wire rubber track system, it provides superior traction and stability for construction sites, agricultural fields, and mountainous environments. With a compact design and hydraulic dumping capabilities, this vehicle offers a robust solution for navigating narrow paths and confined spaces while maximizing productivity.
Performance & Capacity
Walking Speed
15 KM/H
Max Speed
4.5 KM/H
Min Speed
- Load Capacity
- 2 tons

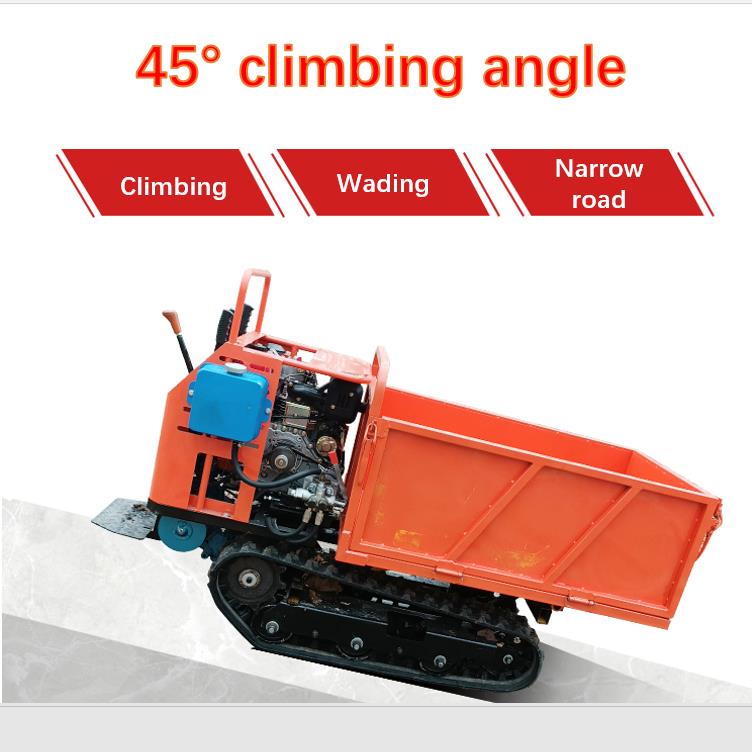

- Max Climbing Angle
- 45 degrees
Technical Specifications
- Overall Dimensions
- 3200 x 1500 x 1610 mm
- Cargo Box Size
- 2200 x 1500 x 600 mm
- Ground Contact Length
- 1680 mm
- Number of Support Wheels
- 8
Drive & Transmission
- Engine Type
- Four Seasons Changchai L30 (Horizontal Bar)
- Transmission
- Mechanical

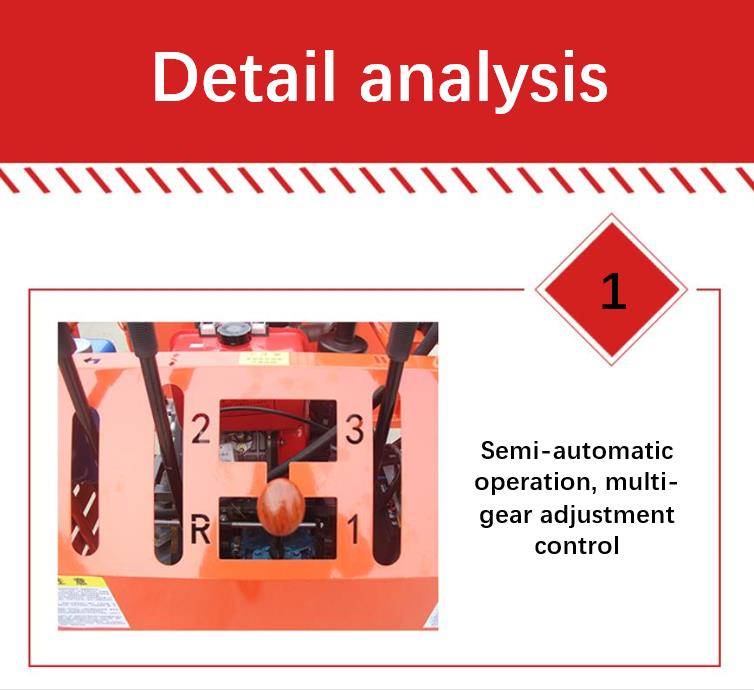

- Gear Configuration
- 6 Forward, 2 Reverse
Features
- Key Features

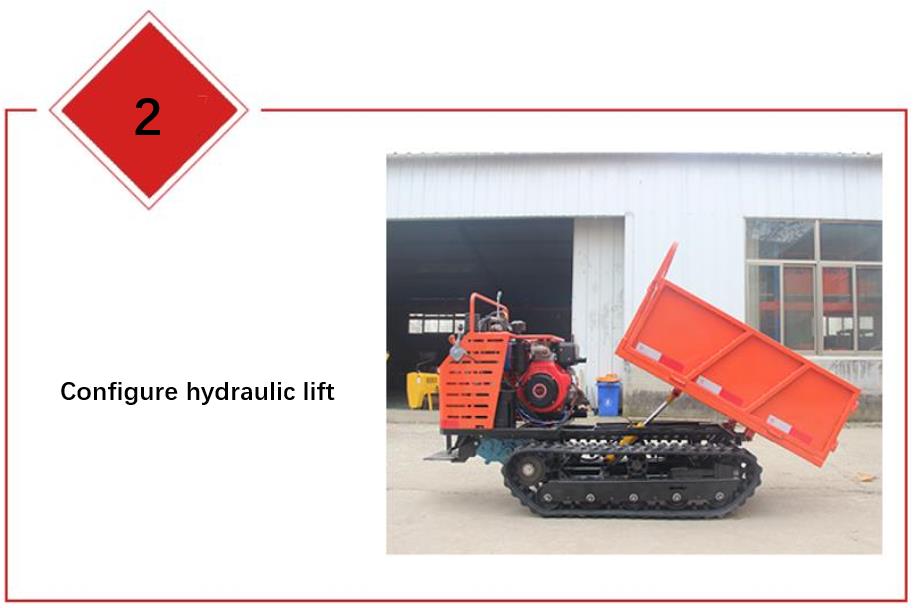

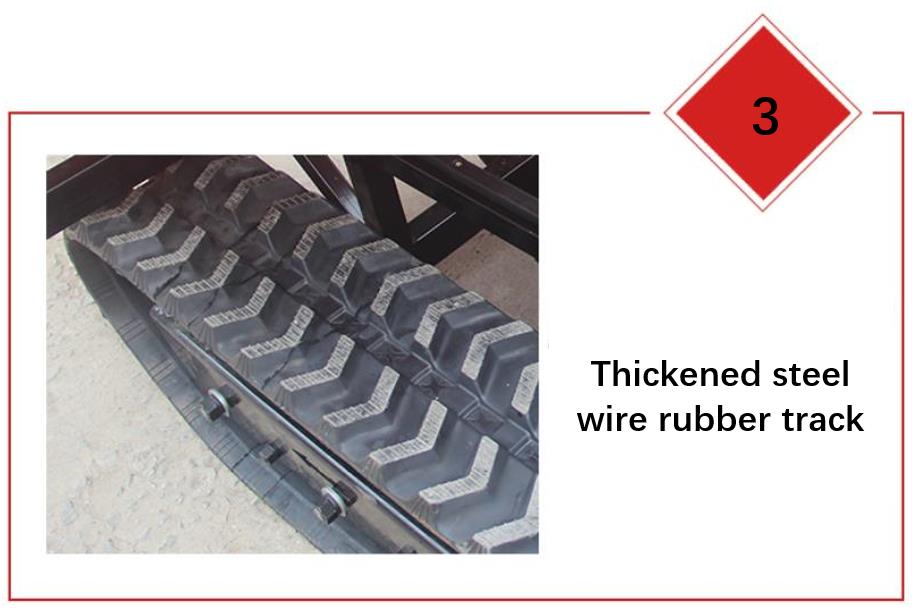

- Hydraulic LiftThickened Steel Wire TrackSemi-automatic OperationWading Capability
