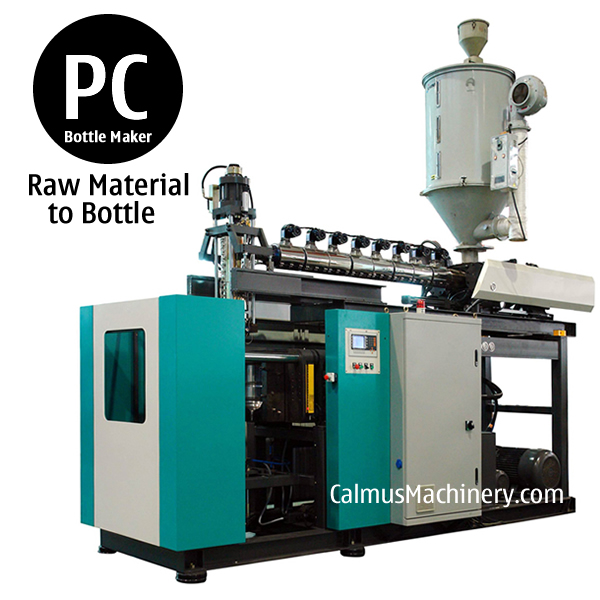

19L Polycarbonate Bottle Blow Molding Machine
This 19 Litre PC Bottle Making Machine creates bottles directly from polycarbonate raw material. The 19L Polycarbonate Bottle Blow Molding Machine is designed for efficient and consistent production.
Technical Specifications
Product Overview
High-Efficiency PC Bottle Production
This specialized blow molding machine is designed to transform raw polycarbonate (PC) granules directly into 19-liter (5-gallon) bottles without the need for preforms. It offers a streamlined production process that is easy to operate and maintain, making it an ideal solution for manufacturing large-format water containers. The system supports various bottle designs, including those with or without handles, ensuring versatility for different market needs.
Key Performance Metrics
Key Performance Metrics
60 pcs/hr
Production Capacity
19 L
Bottle Volume
190 kN
Clamping Force
Plasticizing System
Plasticizing Specifications
| Parameter | Value |
|---|---|
| Screw Diameter | 85 mm |
| Screw L/D Ratio | 28:1 |
| Plasticizing Rate | 80 kg/hr |
| Injection Stroke | 360 mm |
| Screw Speed Range | 10-56 rph |
Clamping & Mold
Clamping System Details
| Feature | Measurement |
|---|---|
| Clamping Stroke | 350 mm |
| Mould Thickness Range | 370-410 mm |
| Max Opening between Platens | 720 mm |
Power & Utilities
Power Consumption
| Component | Rating (kW) |
|---|---|
| General Power | 84 |
| Hydraulic Motor | 37 |
| Electrical Heating Power | 44 |
| Average Electrical Power Rating | 58 |
Utility Requirements
- Air Source: 6-10 bar pressure
- Air Consumption: 0.4 M3/min
- Water Source: 2-3 bar pressure
- Water Consumption: 6 M3/min
Control System
Control Features
- 100-point wall thickness control
- 6-inch color display interface
Physical Characteristics
- Dimensions (L x W x H)
- 4,985 x 1,465 x 2,765 mm
- Machine Weight
- 6 tons

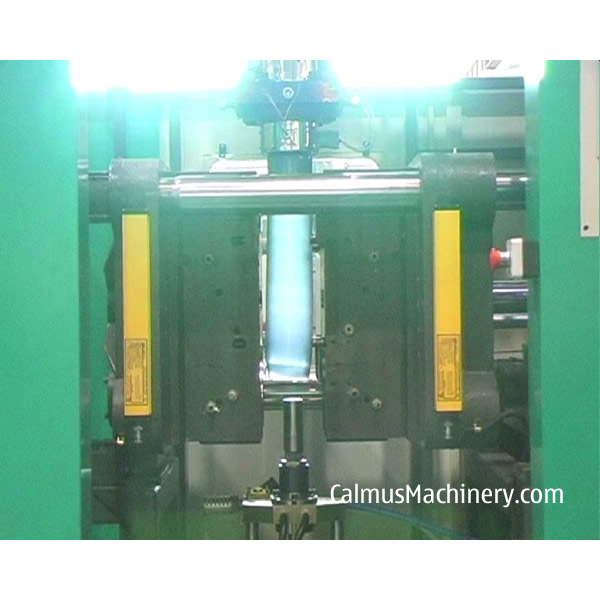

Production Process
Production Workflow
- Load PC resin granules into the hopper
- Melted PC resin enters the mold
- Resin is shaped into a bottle within the mold
- Mold opens for bottle removal
Supported Bottle Types
2 Gallon3 Gallon5 GallonWith HandleWithout Handle
- Compatible Materials
- Polycarbonate (PC)PC Granules
